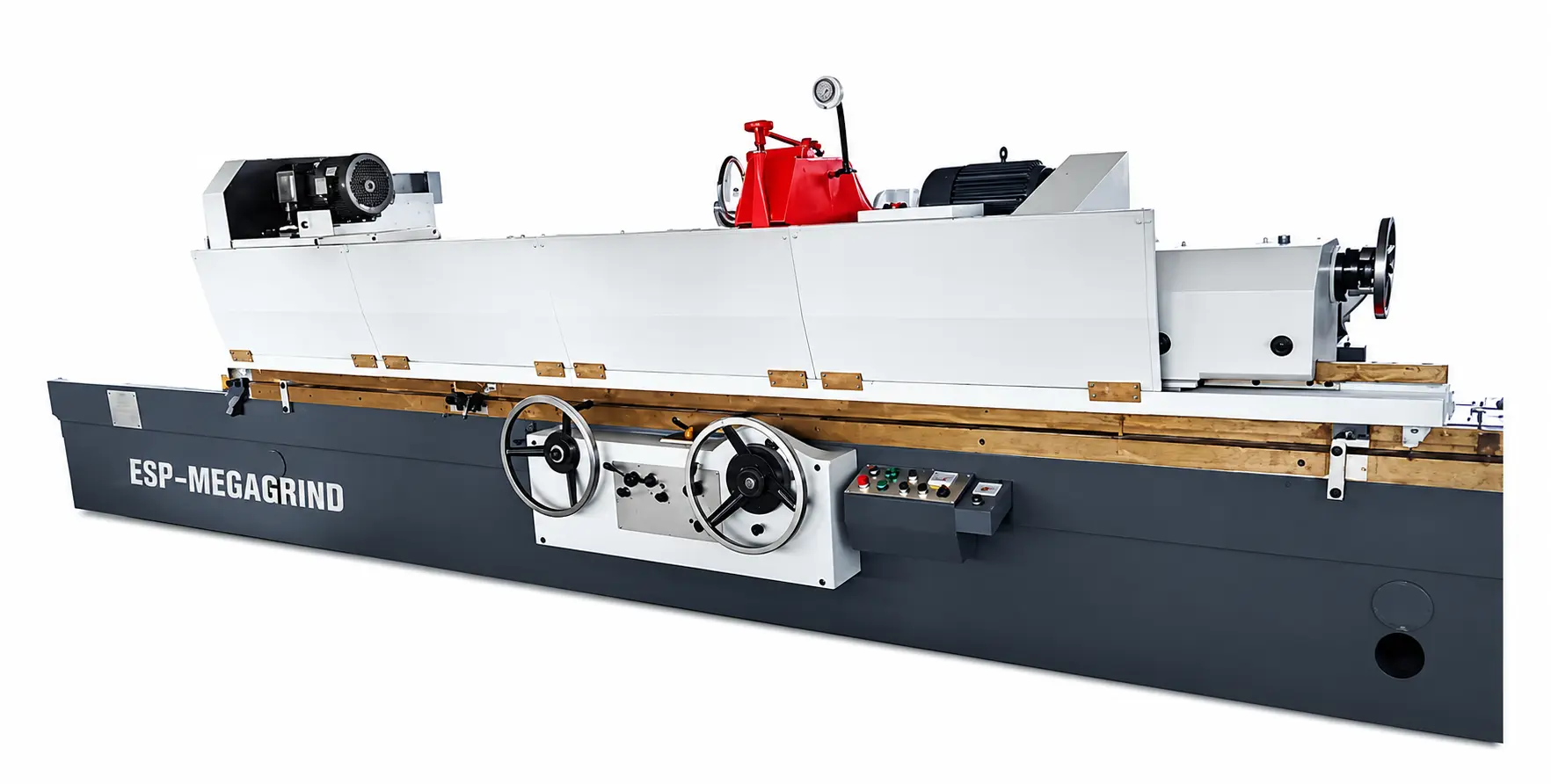

ESP-Megagrind SP1350x3000, new plain cylindrical grinder, features a 19.685" swing, 118" centers, 27.6393 kW power, 29.5276" wheel diameter, and supports up to 2204.62 lbs between centers. Ideal for precision tasks.
| Swing | 19.685" | 500 mm |
| Centers | 118" | 2,997.2 mm |
| Plain or Angle Head | Plain | Plain |
| Grinding Wheel Dia. | 29.528" | 750 mm |
| Wheel Power | 37 hp | 27.6 kW |
| Dimensions | 243.701×84.252×61.0236 | 243.701×84.252×61.0236 |
| Weight | 21825.8 | 21825.8 |
Max. grinding diameter: 500 mm
Max. workpiece length: 3000 mm
Max. workpiece weight: 1000 kg
Center height: 270 mm
Distance between centers: 3000 mm
Table swivel angle (clockwise): 3°
Table swivel angle (counter -clockwise): 6°
Max./min. table speed: ≥3 / ≤0.1 m/min
Crossfeed per handwheel revolution: 5 mm
Grinding wheel peripheral speed: 35 m/s
Grinding wheel size: Φ750×75×305 mm
Rapid traverse of wheel head: 100 mm
Wheel head feed per handwheel revolution: 4
/ 0.5 mm
Wheel head feed per handwheel graduation:
0.02 / 0.0025 mm
Total motor power: 20.63 kW
Overall machine dimensions:
10240×2140×1550 mm
Machine weight: 11350 kg
