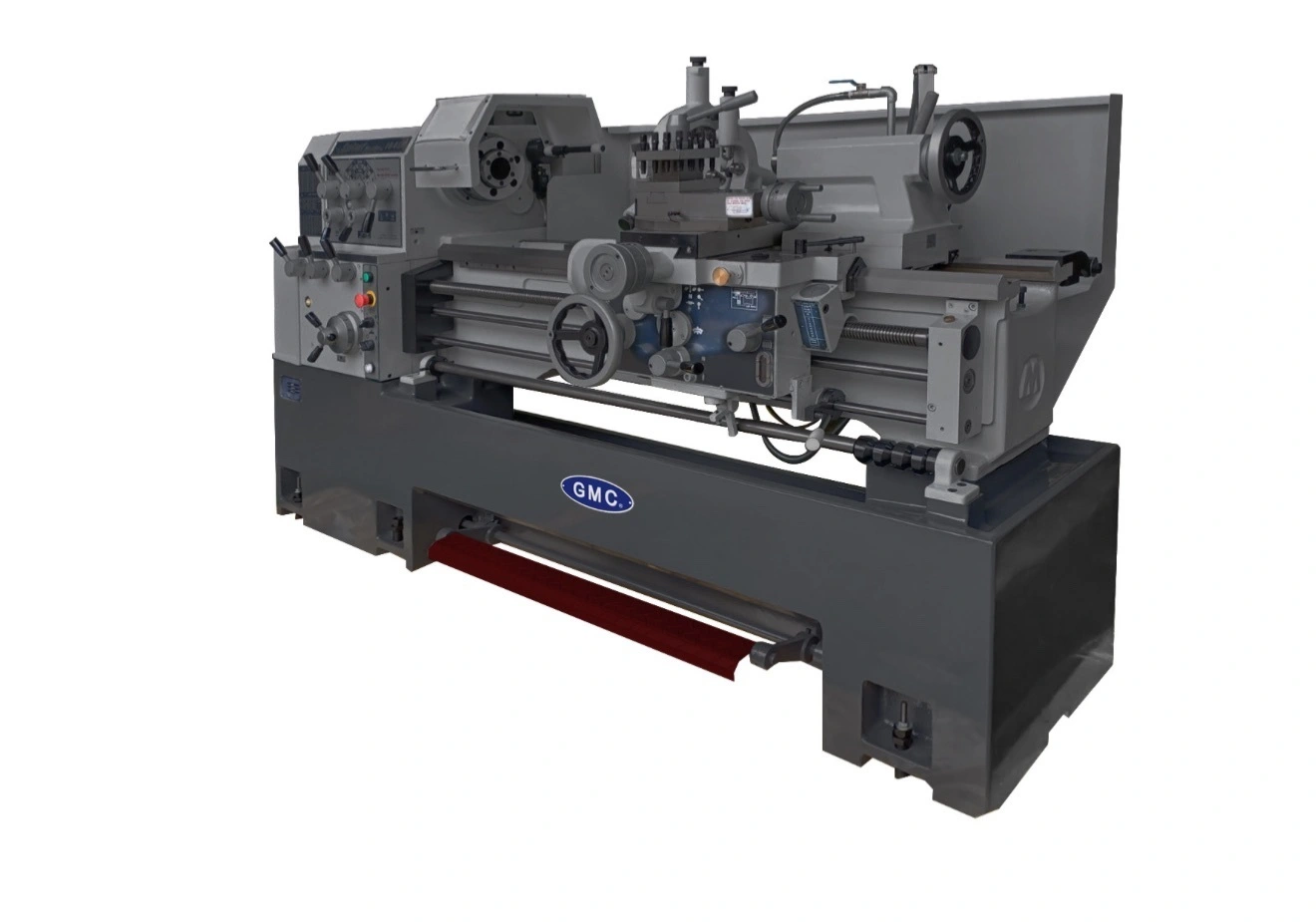

NEW GMC GML 2160T

GMC GML 2160T used engine lathe, ideal for precision machining tasks. Enhance your workshop with this reliable equipment built to handle various turning projects efficiently.

Machine Standard Features and Equipment:

• Made in Taiwan
• Meehanite casting – high performance cast iron
• ISO 9001 certified
• Large spindle bore 3-1/8”
• Heavy Duty spindle D1-8
• Heavy Duty guideway width 12”
• Spindle speeds from 40-2,000 rpm, 12 speeds
• Threading and feeding rate change without changing gears
• Spindle is balanced, hardened and precision ground
• Spindle is supported at 3-point by high precision bearings
• All gears and shafts are hardened and precision ground
• Guideways induction hardened and precision ground
• Automatic lubrication system in headstock and feed box
• One year industrial warranty for parts
Standard Equipment (free) for Lathes # GML-2160T & GML-2190T:
• Free CARMAR DRO, installed
• Automatic kick-out longitudinal carriage stop system
• 10” 3-jaw chuck with top reversible jaws, direct mount
• 16” Face plate
• 9” steady rest with roller jaws
• 4” follow rest with roller jaws
• Removeable gap
• 4-way tools post
• Foot brake
• LED Work light
• coolant system
• full length rear splash guard
• Dead centers
• Thread chasing dial
• Reducing sleeve MT6/MT5 for spindle
• Tool box and leveling pads

Specifications
GML-2160T
Max. swing over bed 20-1/2”
Max. length of workpiece 60”

Max. swing over cross slide 13"
Max. Swing in gap 29-1/8”
Width of Bed 12”
Effective length in gap to spindle 6”
Effective length in gap to chuck jaws 3-1/2”
Spindle bore 3-1/8” , D1-8
Taper of spindle center M.T.# 6 w/ reducing sleeve MT6/MT5
Spindle speeds 40-2,000 rpm / 12 steps
Longitudinal feeds 0.002-0.03 IPR, 35 kinds
Cross feeds 0.0008-0.011 IPR, 35 kinds
Inch threads 4-56 TPI, 36 kinds
Metric threads 0.5-7.0 mm ,17 kinds
Max. travel of top slide 5”
Max. travel of cross slide 11”
Spindle length w/o chuck 17”
Leadscrew length X TPI 1-1/4” x 4 TPI
Diameter of tailstock quill 2-3/4”
Max. travel of tailstock quill 5-7/8”
Taper of tailstock quill center M.T. #4
Main motor 7-1/2HP, 220V or 440V, 3 phase
Amperage Draw 220V/ 35A , 440V/20A
Coolant pump motor
1/8 HP, 220V, or 440V, 3 phase, 2Gal coolant
Machine Oil
# 30 weight Machine oil, 5 Gallons
Machine weight, approx. LBS 4,150 LBS
Overall dimensions, LxWxH
Shipping dimensions: LxWxH
105” x 41” x 59”
139” x 41” x 59”
