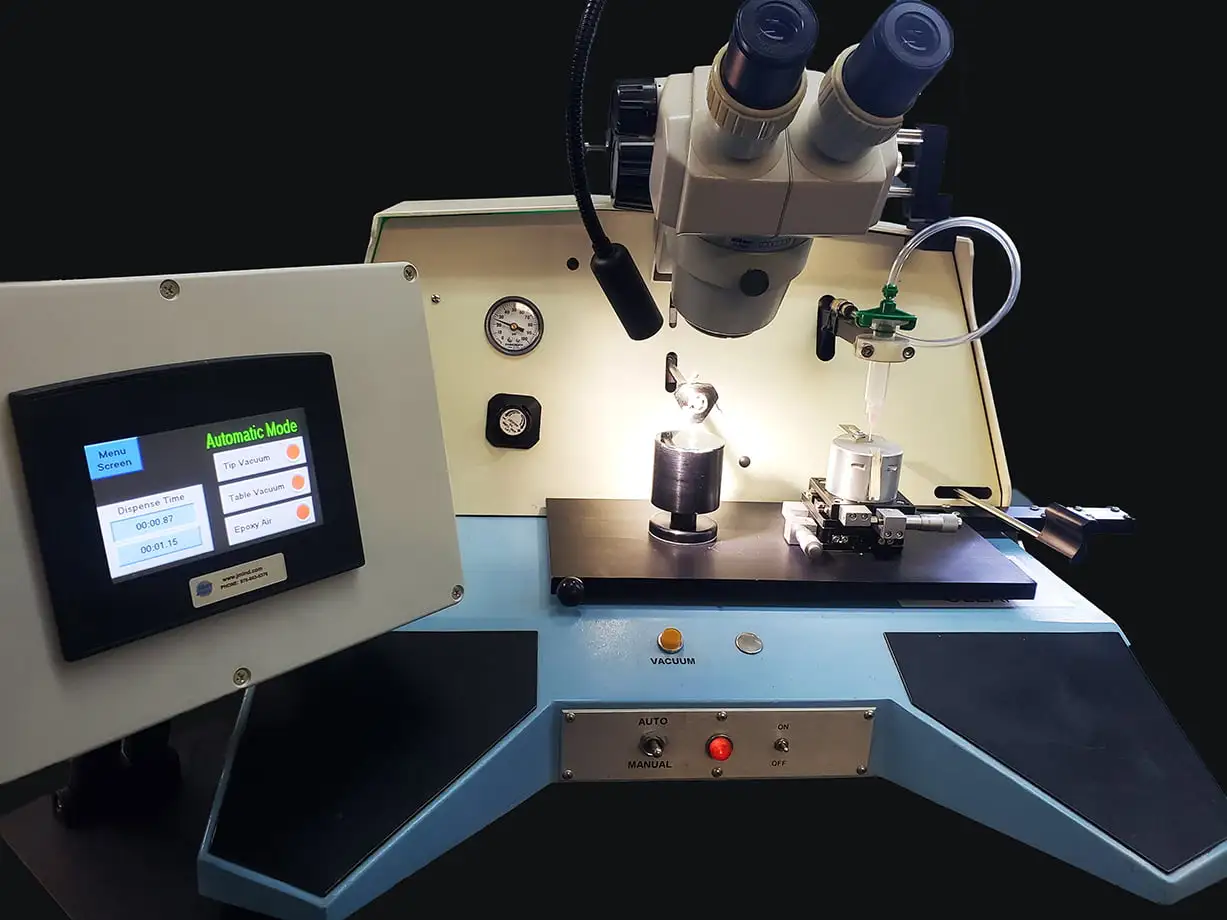

LAURIER Model SA202
MANUAL PICK AND PLACE SYSTEM
With Epoxy Dispenser
Includes: Stereo Optics (To View Pick Up) and 2 WORKHOLDERS.
CUSTOM MACHINING AVAILABE FOR ADDED COST
Microscope Slide To View Die and Pick Up and Placemen of Epoxy
New Touch Screen Controller For Precise Epoxy
Choose Seconds or Tenths or Hundredths of Seconds
Micrometer XY Stage
(Allows Operator to make Precise Epoxy Dot Placement, Also in Rectangular Pattern)
Option 1: 3 Position Pick Up Tool Option (Shown in Photo)
Option 2: Dual Color Video Cameras With Dual Cross Hairs And
Extra Wide Split Screen.
(All New Parts, Covered By 1 Year Warranty)
OPTION 3: Motorized XY Stage Beneath Epoxy Dispenser To Draw Rectangular Shapes With Epoxy
(All New Parts, Covered By 1 Year Warranty)
