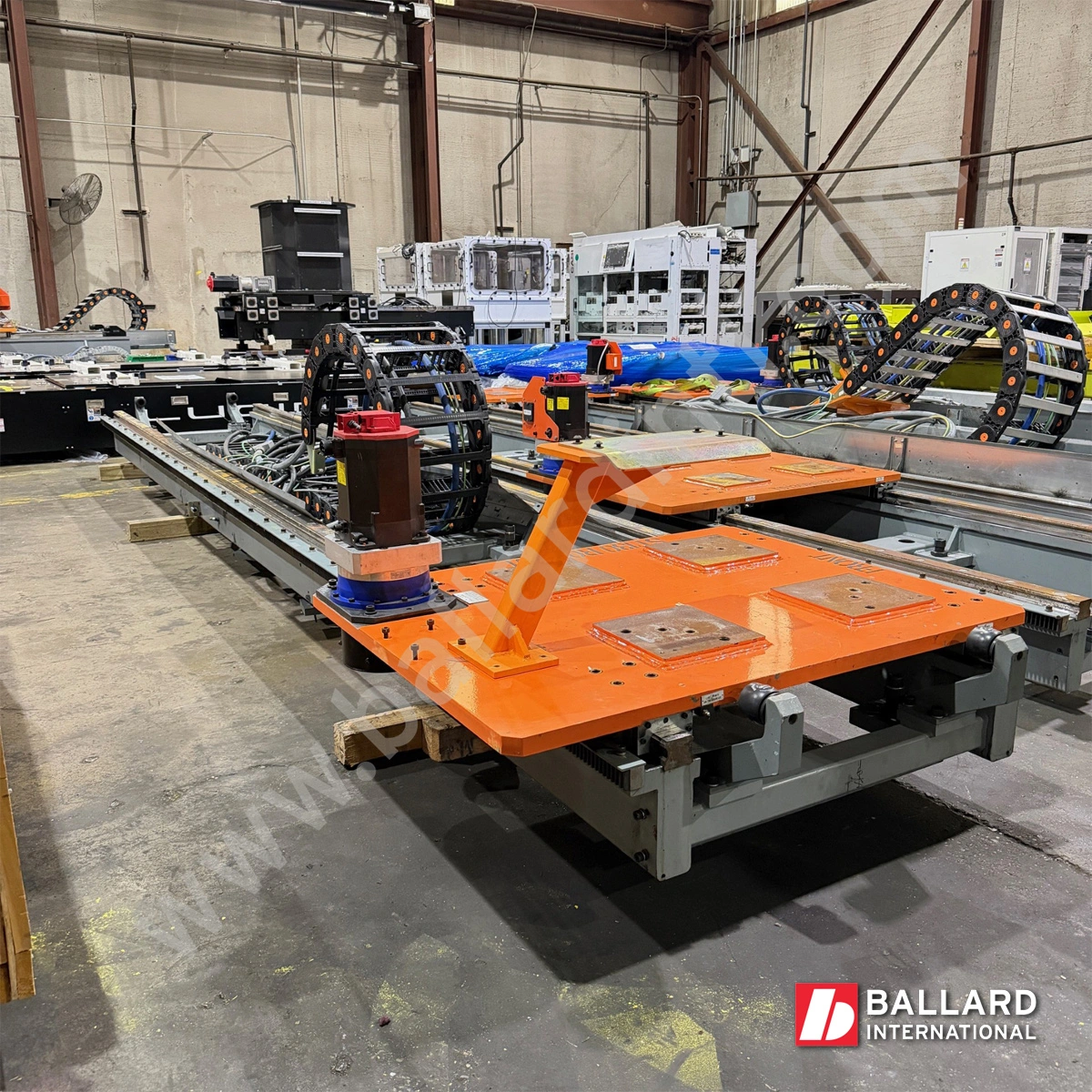

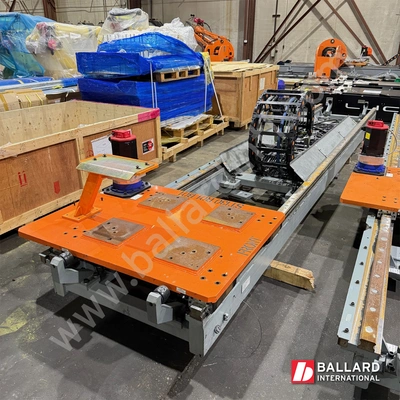

FANUC RTU Gen VI SD Standard Duty Robot Linear Rail – 6 Meter

Overview
Type:
Robots
Manufacturer:
FANUC
Description

Includes:

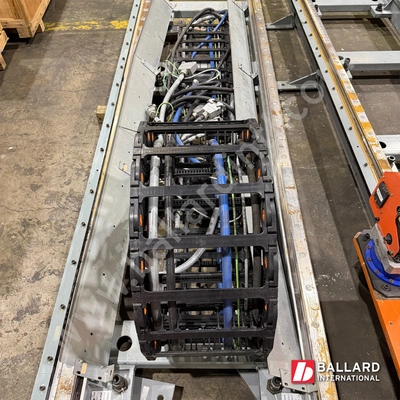

Cable Track/Chain

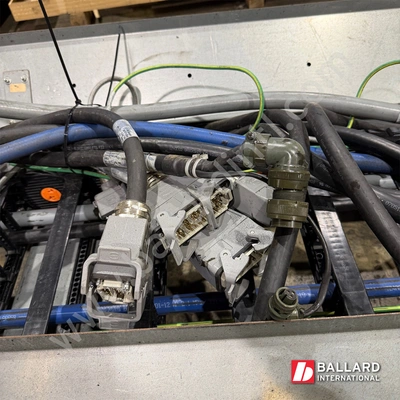

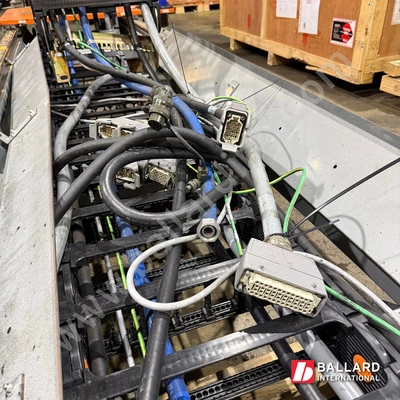

7th Axis Cables
Extension Cables
Anchor/Leveling Floor Pads

Specifications

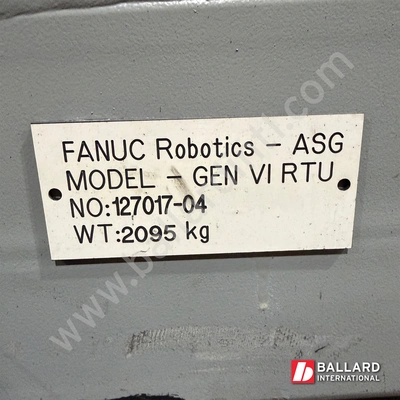

Model: Gen VI SD
Length: 6 Meter
Max Capacity: 2200kg
Max Speed: 2.2 m/s
Max Acceleration: 2.75 m/s^2

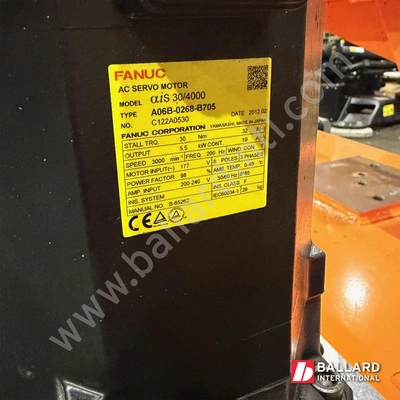

FANUC Motor: ais 30/4000 (A06B-0268-B705)
Gear Ratio: 10:1
Compatible with following FANUC Robots:

R-2000 Series: R-2000iB, R-2000iC & R-2000iD Series: All Models (excluding T Series)
