Technical Data

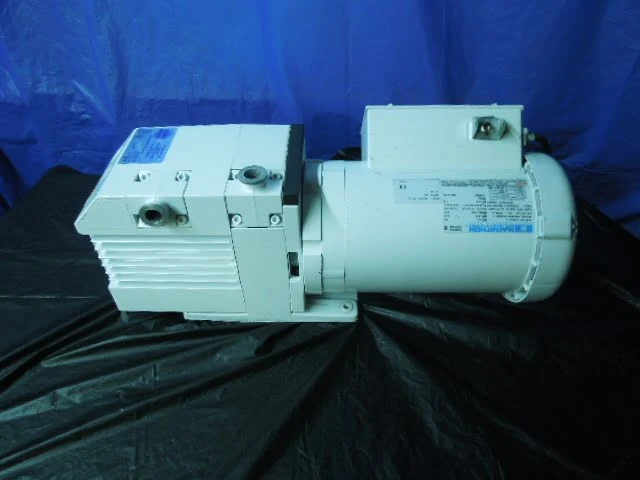

Performance Characteristics D8B
Displacement ………….CFM 7.0
Displacement ………….Ilmin 190
Ultimate Partial Pressure … 10 millitorr or better
Water Vapor Tolerance ….Torr 30
Oil Capacity … ..qt 1.0
Motor Power … …HP 1
Pump Rotational Speed …..RPM 1725
Weight Complete … ..lb 80
Sound Pressure Level (Max) At Three Feet
With Gas Ballast Closed … .dB(A) 57
Sound Pressure Level (Avg) At Three Feet
With Gas Ballast Open … .dB(A) 60
