Technical Data Performance of the Leybold D65BCS

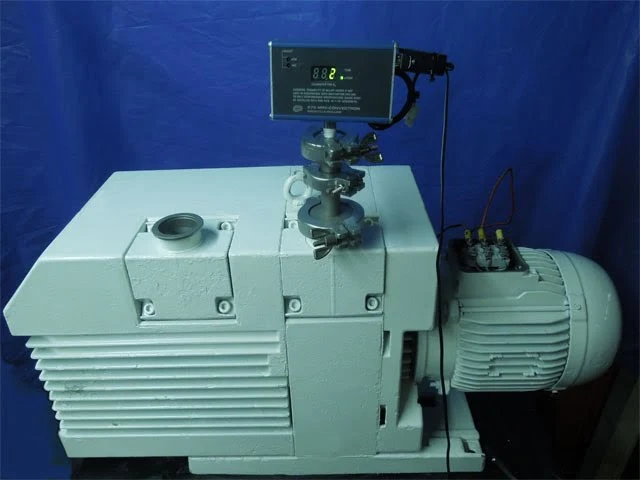

Leybold D65BCS for corrosive applications
Nominal pumping speed 50 / 60 Hz, DIN 28 400 m3/h 75 / 90
Pumping speed 50/60 Hz according to DIN 28 400 m3/h 65 / 78
Ultimate partial pressure without gas ballast DIN 28 400 mbar 1E-4
Ultimate total pressure without gas ballast DIN 28 400 mbar < 2E-3
Ultimate total pressure with gas ballast DIN 28 400 mbar < 5E-3
Water vapor tolerance DIN 28 400 mbar 40
Water vapor capacity g/h 1925
Oil filling, min. / max. l 2.0 / 3.3
Noise level DIN 45 635 without – with gas ballast dB(A) 57 / 59
Admissible ambient temperature °C 12 – 40
Motor rating – AC motor230 V 50 Hz W 2200
Nominal speed 50/60 Hz 1/min 1420 / 1710
Motor protection IP 54
Weight – with AC motor version 230 V 50 Hz kg 80
Connections exhaust and intake Inch 40 KF.
