Technical Data Performance Characteristics D25BCS
The Leybold D25BCS used with corrosive applications
Nominal pumping speed 50 / 60 Hz, DIN 28 400 m3/h 29.5 / 35.4
Pumping speed 50/60 Hz according to DIN 28 400 m3/h 25.7 / 30.8
Ultimate partial pressure without gas ballast DIN 28 400 mbar 1E-4
Ultimate total pressure without gas ballast DIN 28 400 mbar < 2E-3
Ultimate total pressure with gas ballast DIN 28 400 mbar < 5E-3
Water vapor tolerance DIN 28 400 mbar 25
Water vapor capacity g/h 476
Oil filling, min. / max. l 0.6 / 1.4
Noise level DIN 45 635 without – with gas ballast dB(A) 52 / 62
Admissible ambient temperature °C 12 – 40
Motor rating – AC motor 230 V 50 Hz W 750
Nominal speed 50/60 Hz 1/min 1500 / 1800
Motor protection IP 54
Weight – with AC motor version 230 V 50 Hz kg 32
Connections exhaust and intake Inch 25 KF

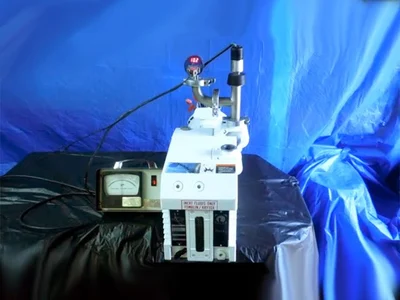

Click here to see a Leybold D25BCS Pumping Speed Demo!
