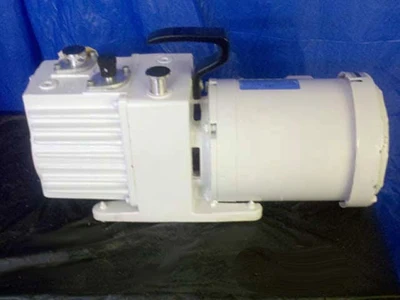

DIRECT DRIVE 2 STAGE PUMP 115VOLTS
Technical Data
Performance Characteristics Leybold D2
Displacement … CFM 2.2
Displacement ……I/min 62
Ultimate Partial Pressure … 10 millitorr or better
Water Vapor Tolerance …..Torr 30
Oil Capacity … qt 0.5
Motor Power HP 1/3
Pump Rotational Speed ……RPM 1725
Weight, Complete … .lb 41
Sound Pressure Level (Max) At Three Feet
With Gas Ballast Closed … .dB(A) 50
Sound Pressure Level (Avg) At Three Feet
With Gas Ballast Open … .dB(A) 54
