Technical Data

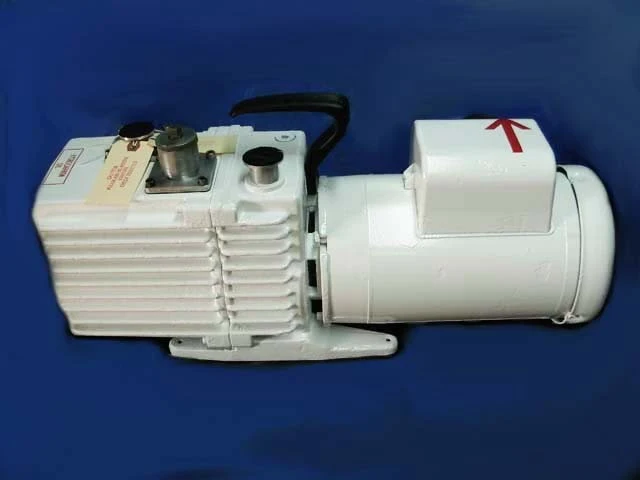

Performance Characteristics D16AC
Displacement … ..CFM 14.1
Displacement … …Ilmin 400
Ultimate Partial Pressure … 10 millitorr or better
Water Vapor Tolerance …..Torr 15
Oil Capacity … ..qt 1.25
Motor Power … …HP 1
Pump Rotational Speed ….RPM 1725
Weight, Complete … ..lb 85
Sound Pressure Level (Max) At Three Feet
With Gas Ballast Closed … .dB(A) 60
Sound Pressure Level (Avg) At Three Feet
With Gas Ballast Open … .dB(A) 62
