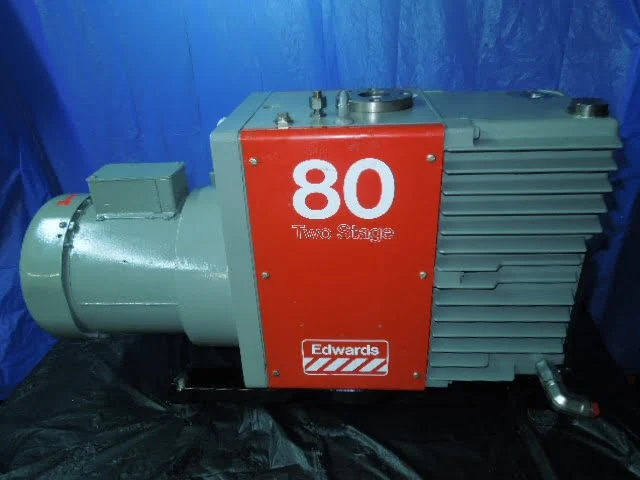

The Edwards E2M80 pump speed is 57 CFM at 60Hz.
It’s inlet connection is NW40. It’s outlet connection is 25mm flange suitable for NW25.
It’s maximum inlet pressure for water vapor is 5 torr.
The motor runs at 3 kW at 60Hz 4-pole.
The oil capacity at a minimum is 4.0 liters and the maximum is 6.3 liter.
The weight of this pump is 230 lbs.
Click here for a Edwards E2M80 Pumping Demo!
