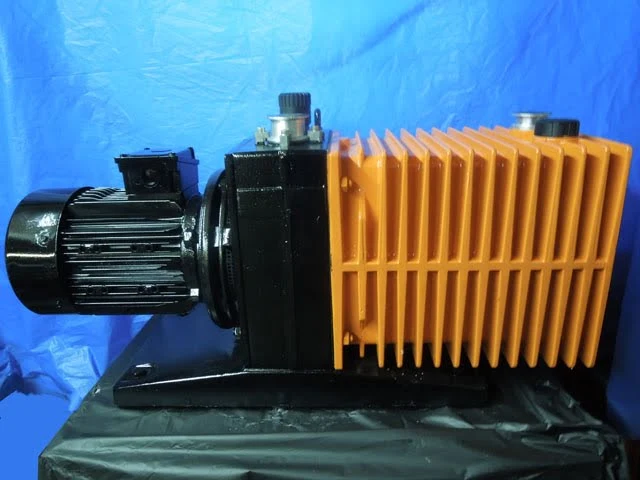

The Alcatel 2063 pumping speed is 50 CFM or 1420 L/MN at 60Hz. This pump can also be wired for 208 volt or 440 volt operation. It has an oil capacity of 7.4 quarts and it’s flange size is NW40.
Specifications
Model: 2063
Stages: 2
Free air displacement cfm/(1/min): 50 (1420)
Ultimate vacuum (partial pressure measurement), mbar: <5X10-4
Ultimate gas ballast (total pressure measurement), mbar: <5X10-2
Water vapor @ 30°C, grams/hr: 1200
Water vapor tolerance mbar 25
Oil capacity,qt/(I) : 7.1 (6.7)
Motor hp TEFC: 3.0
Motor speed, rpm (nom): 1800
weight lbs/(kg): 232/(105)
inlet/outlet NW flanged: NW 40
