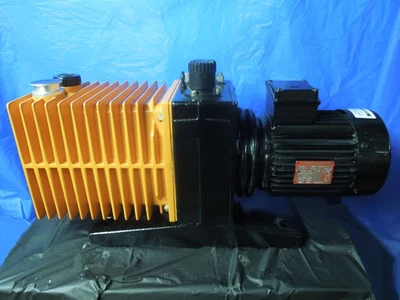

The Alcatel 2033A pumping speed is 27 CFM or 765 L/MN at 60Hz. This pump can also be wired for 208 volt or 440 volt operation. It has an oil capacity of 3.8 quarts and it’s flange size is NW40.
Specifications
Model: 2033
Stages: 2
Free air displacement cfm/(1/min): 27 (765)
Ultimate vacuum (partial pressure measurement), mbar: <5X10-4
Ultimate gas ballast (total pressure measurement), mbar: <5X10-2
Water vapor @ 30°C, grams/hr: 700
Water vapor tolerance mbar 30
Oil capacity,qt/(I) : 3.8 (3.6)
Motor hp TEFC: 1 1/2
Motor speed, rpm (nom): 1800
weight lbs/(kg): 167/(76)
inlet/outlet NW flanged: NW 40
