Specifications

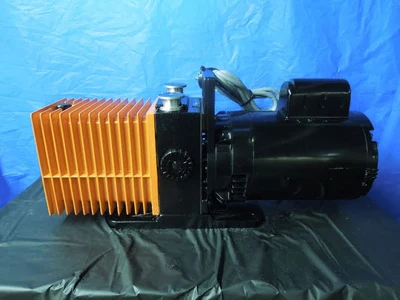

Model: 2012A
Stages: 2
Free air displacement cfm/(1/min): 11 (310)
Ultimate vacuum (partial pressure measurement), mbar: <10-4
Water vapor @ 30°C, grams/hr: 150
Oil capacity,qt/(I) : 0.85 (0.81)
Motor hp: 3/4
Motor speed, rpm (nom): 1725
Inlet ports: PNEUROP flange, NW25; alum tube 1.0-in. (25.4-mm) OD.
NW40 (1.75-in. (44.45mm) OD) optional
Outlet ports: PNEUROP flange NW25; alum tube 1.0-in. (25.4-mm) OD
Check out our Alcatel 2012A on Ebay
