Specifications

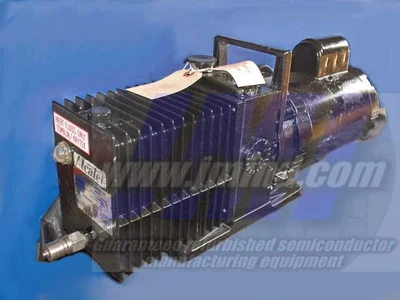

Model: 2008AC
Stages: 2
Free air displacement cfm/(1/min): 7 (195)
Ultimate vacuum (partial pressure measurement), mbar: 5X10-4
Water vapor @ 30°C, grams/hr: 100
Oil capacity,qt/(I) : 1.06 (1.0)
Motor hp: 1/2
Motor speed, rpm (nom): 1725
Inlet ports: PNEUROP flange, NW25; SS tube 1.09-in. (27.8-mm) OD.
NW40 (1.75-in. (44.45mm) OD) optional
Outlet ports: PNEUROP flange NW25; SS tube 1.09-in. (27.8-mm) OD
