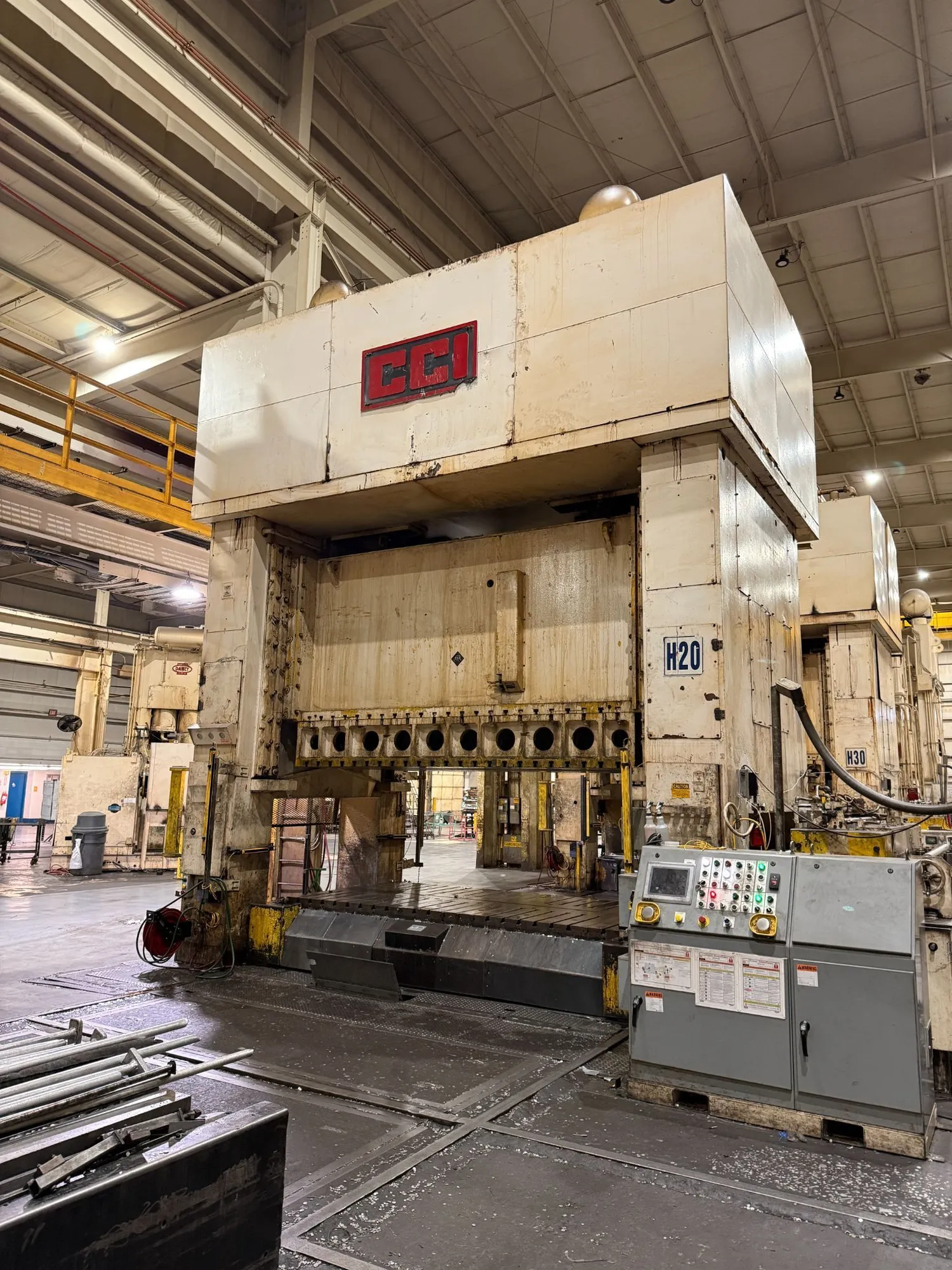

USED 1989 CCI SE4-600-144-72
Overview
Description
CCI 600 ton Straight Side Mechanical Press, 144" x 72" Bed Area, 14" Stroke, 20 - 40 SPM
Specifications
| Tonnage | 600 T | 544.311 t |
|---|---|---|
| Stroke | 14" | 355.6 mm |
| Shut Height | 37" | 939.8 mm |
| Bed area (Left to right) | 144" | 3,657.6 mm |
| Bed area (Front to back) | 72" | 1,828.8 mm |
| SPM min. | 20 strokes/min. | 20 strokes/min. |
| SPM max. | 40 strokes/min. | 40 strokes/min. |
| Adjustment | 6" | 152.4 mm |
| Windows Width | 74" | 1,879.6 mm |
Model Number: SE4-600-144-72
Serial Number: SE4-600-018-89
Year of Manufacture: 1989
Bed Area: 144” x 72”
Slide Area: 144” x 72”
Stroke: 14”
Strokes per Minute: 20-40
Shut Height: 37” over bolster
Bolster Plate: 24” Thick rolling bolster
Slide Adjustment: 6”
Windows: 74” wide approx.
Equipped With
Wet Clutch (Air Actuated)
Completely Rebuilt in 2023
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster ( On 6” centers)
Dual Ross Air Valve
New Allen Bradley Press Control Console
Installed in 2020
Variable Speed Drive
8 Point Gibbing
Motors and Controls
Motorized Ram Adjustment
