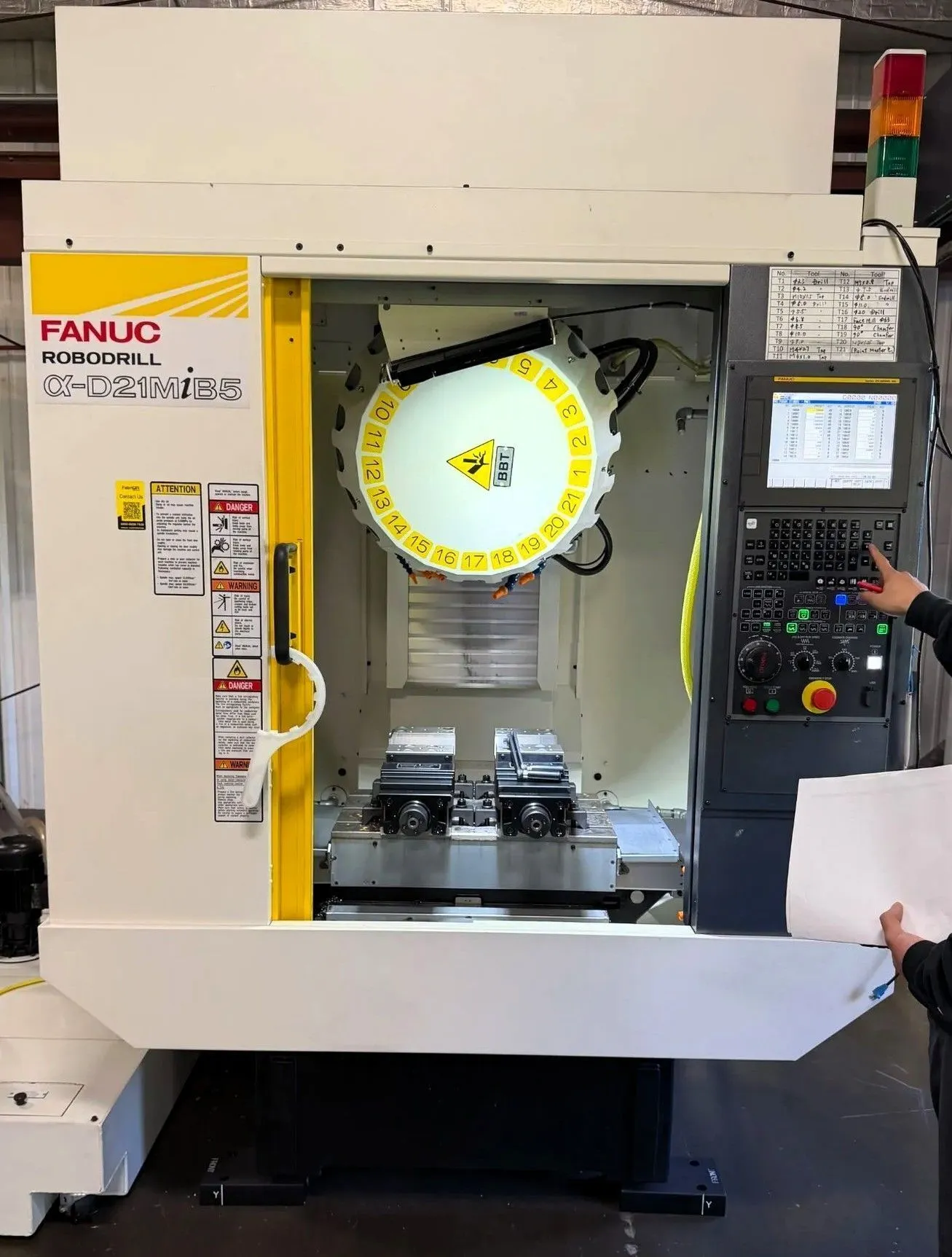

FANUC ROBODRILL ALPHA D21MIB5 CNC Drilling & Tapping, New in 2022.
19.7" x 15.7" x 12.9" XYZ travel.
10K RPM
BT30 Taper.
Very Low Hours.
| X-Axis | 19.7" | 500.38 mm |
| Y-Axis | 15.7" | 398.78 mm |
| Z-Axis | 12.9" | 327.66 mm |
| Power | 18.7 hp | 13.9 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 21 | 21 |
| Taper | BT30 | BT30 |
| Table-W | 15.7" | 398.78 mm |
| Table-L | 25.6" | 650.24 mm |
| # Axis | 3 | 3 |
| Control | CNC (FANUC 31i-B5) | CNC (FANUC 31i-B5) |
| Weight | 4500LBS | 4500LBS |
General Specifications:
X 19.7"
Y 15.7"
Z 12.9"
RPM 10,000 RPM
# ATC 21
Taper BT30
Table-W 15.75 in
Table-L 25.6 in
# of Axis 3
Fanuc Series 31i-B5 CNC Control
JK 170 Gallon LH Coolant Tank w/ Flood, Wall & Cutting Coolant-
Pumps & Oil Skimmer
JK Taper Wash
JK Manual Chip Bin
Very Low Hours!
