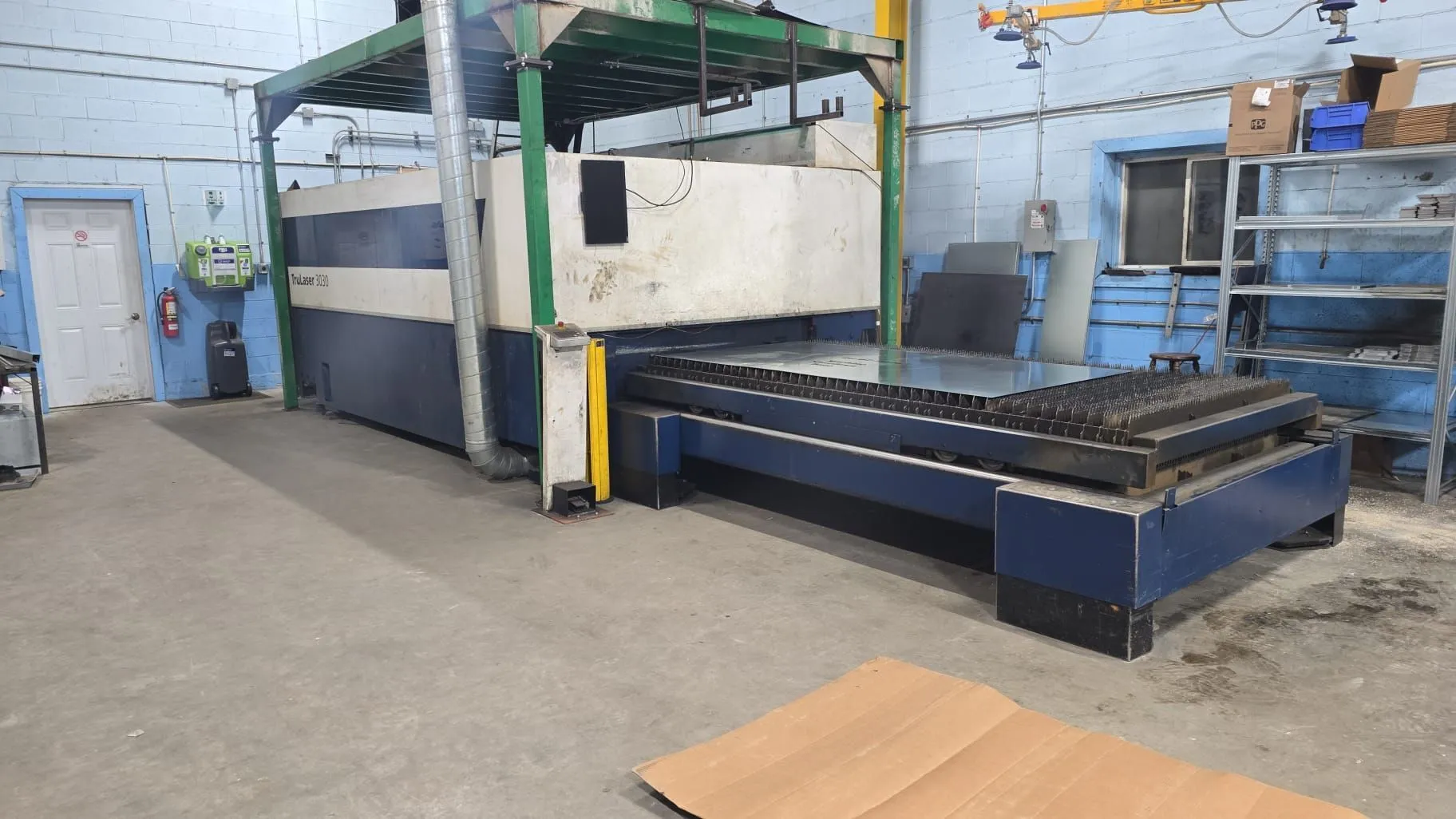

USED 2013 TRUMPF TRULASER 3030 FIBER
Overview
Description
2013 TRUMPF TruLaser 3030 Fiber
Manufacturer: TRUMPF
Model: TruLaser 3030 Fiber
Mfg Date: 2013
POWER: 460V / 60Hz / 3 Phase
Machine Hours:
Operating Hours: 40,142 hrs
Laser On Hours: 25,443 hrs
Specs:
Machine Type: CNC Fiber Laser Cutting System
Laser Source: TRUMPF TruDisk Fiber Resonator
Laser Power: 3 kW
Working Area: 120 in x 60 in
X-Axis Travel: 120 in
Y-Axis Travel: 60 in
Z-Axis Travel: 4.5 in
Table Capacity: Approx. 1,980 lb
Control: TRUMPF CNC Control
Drive System: Linear Drive Technology
Pallet Changer: Dual Shuttle Table System
Cooling System: Closed-Loop Chiller
Automatic Nozzle Changer
Cutting Gas Capability: Oxygen, Nitrogen, Compressed Air
Laser Wavelength: 1.03 μm
Features:
Automatic Shuttle Table
Enclosed Safety Cabin
Fiber Laser Technology
High-Speed Processing
Non-Ferrous Material Cutting
Precision Linear Axis System
Weight: Approx. 30,000 lb
Machine Dimensions: Approx. 360 in x 220 in x 87 in
Specifications
| Sheet-W | 1,500 mm | 59.055" |
|---|---|---|
| Sheet-L | 3,000 mm | 118.11" |
| Wattage | 3000 w | 3,000 W |
| IPM | 140 mpm | |
| X | 3,000 mm | 118.11" |
| Y | 1,500 mm | 59.055" |
| Z | 115 mm | 4.5276" |
2013 TRUMPF TruLaser 3030 Fiber
Manufacturer: TRUMPF
Model: TruLaser 3030 Fiber
Mfg Date: 2013
POWER: 460V / 60Hz / 3 Phase
Machine Hours:
Operating Hours: 40,142 hrs
Laser On Hours: 25,443 hrs
Specs:
Machine Type: CNC Fiber Laser Cutting System
Laser Source: TRUMPF TruDisk Fiber Resonator
Laser Power: 3 kW
Working Area: 120 in x 60 in
X-Axis Travel: 120 in
Y-Axis Travel: 60 in
Z-Axis Travel: 4.5 in
Table Capacity: Approx. 1,980 lb
Control: TRUMPF CNC Control
Drive System: Linear Drive Technology
Pallet Changer: Dual Shuttle Table System
Cooling System: Closed-Loop Chiller
Automatic Nozzle Changer
Cutting Gas Capability: Oxygen, Nitrogen, Compressed Air
Laser Wavelength: 1.03 μm
Features:
Automatic Shuttle Table
Enclosed Safety Cabin
Fiber Laser Technology
High-Speed Processing
Non-Ferrous Material Cutting
Precision Linear Axis System
Weight: Approx. 30,000 lb
Machine Dimensions: Approx. 360 in x 220 in x 87 in
