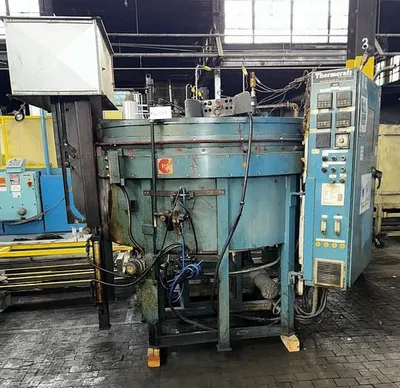

Thermcraft Atmosphere Rotary Hearth Furnace - 48” Diameter Hearth, 14” wide x 11” high opening, 1700-F
Overview
Description

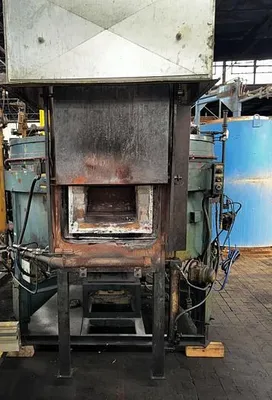

Thermcraft Atmosphere Rotary Hearth Furnace. Standard rotary hearth furnace with a 48\" diameter hearth and 14\" W × 11\" H door opening, designed for atmosphere heat treating applications up to 1700°F.
Specifications

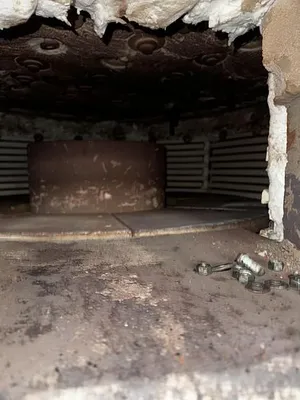

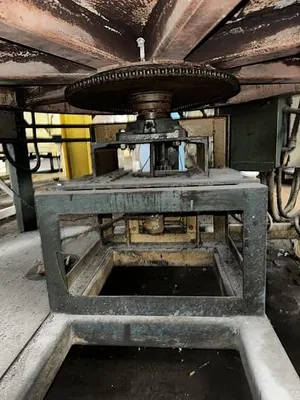

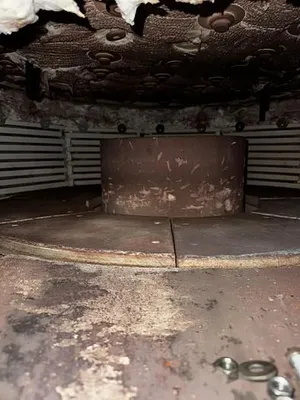

Key Components & Features: Air-operated vertical lift door. Ceramic fiber insulation. Coiled metallic heating elements. Flame curtain. Burn-off system. SiC hearth plates with variable speed drive and sand seal.
Manufacturer: Thermcraft Model No.: Atmosphere Rotary Hearth Furnace Serial No.: 93-123
Fuel Type: Electric Capacity / Output: 48" diameter hearth; 14" W × 11" H door opening Maximum Temperature: 1700°F

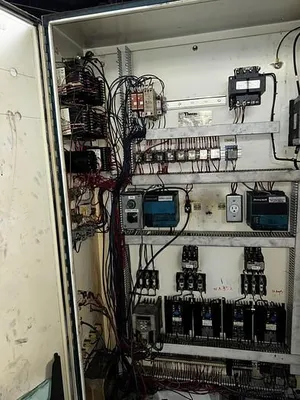

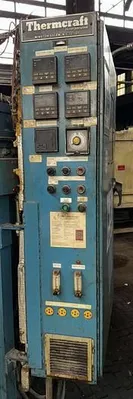

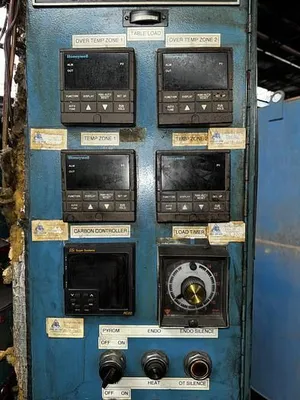

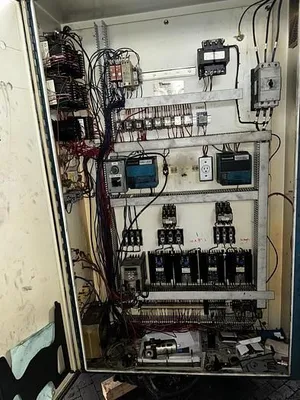

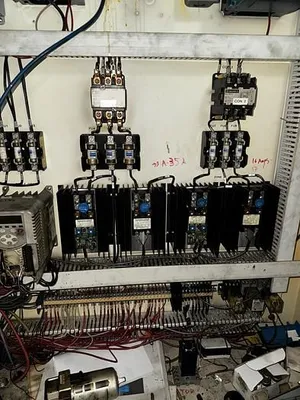

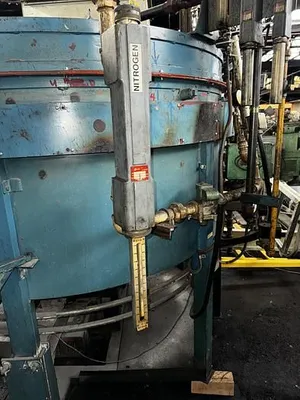

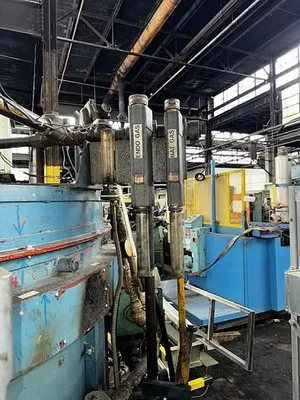

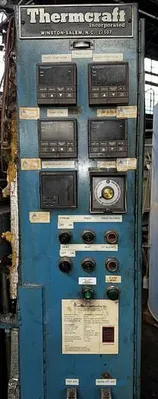

Control Panel: Enclosure mounted and wired to furnace with fused disconnect Temperature Controls: Honeywell UDC digital temperature controllers Safety Controls: Honeywell UDC digital high limits Atmosphere Control: SSi digital carbon controller Flow Controls: Flow meters for endothermic gas, natural gas, and nitrogen
Overall Dimensions: 96” Wide × 108” High × 96” Long
