Pillar MK 11 300 kW, 3/10 kHz w/ 48" Single Spindle Scanner
Overview
Description

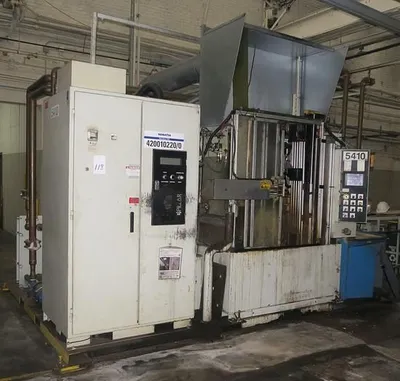

Pillar MK 11 Induction Hardening System with 48\" Single Spindle Scanner. System includes a Pillar MK 11 300 kW, 3\/10 kHz power supply with scanner, heat station, DI water system, and electrically heated quench tank.
Specifications

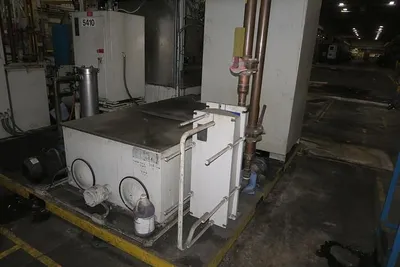

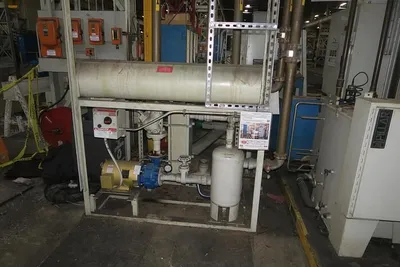

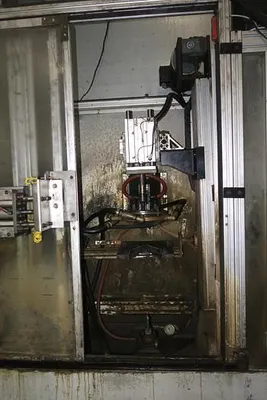

Key Components & Features: 300 kW, 3/10 kHz Pillar MK 11 power supply. 48" single spindle scanner. Stainless steel DI water system with plate & frame heat exchanger. Heat station. Stainless steel electrically heated quench tank.

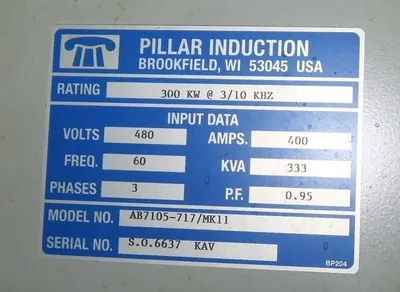

Manufacturer: Pillar Model No.: AB7105-717 / MK 11 Serial No.: 6637
Fuel Type: Electric Capacity / Output: 300 kW, 3/10 kHz

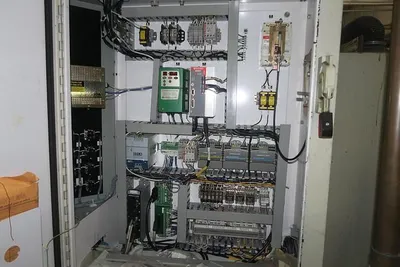

Control Panel: Enclosure-mounted control panel with fused disconnect Controls: Allen Bradley SLC 5/04 PLC with touchscreen interface
Power Requirements: 480 V / 3 Ph / 60 Hz / 400 Amps / 333 kVA
Overall Dimensions: 8' Wide × 10' High × 12' Long
