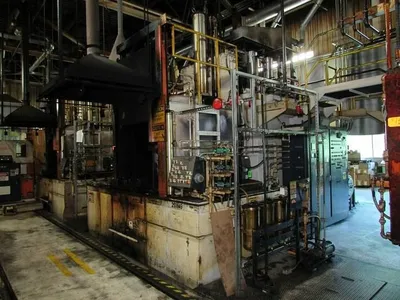

AFC Integral Quench Furnace, 36"W x 36"H x 48"L, Gas Fired, 1750°F
Overview
Description
AFC Integral Quench Furnace, 36\" W × 36\" H × 48\" L. Gas-fired in\/out integral quench furnace designed for heat treating applications up to 1750°F with a 3,500 lb load capacity.
Specifications

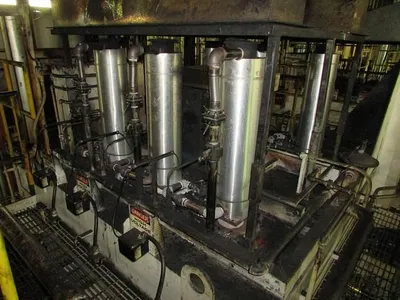

Key Components & Features: In/out integral quench configuration. Dual quench cylinders. Roof-mounted circulating fan. Six (6) vertical radiant tubes with recuperators. Rear handler. Oil filtration system.
Manufacturer: Atmosphere Furnace Company Model No.: Batch IQ Furnace Serial No.: 61743
Fuel Type: Natural Gas Capacity / Output: 36" W × 36" H × 48" L work area; 3,500 lb load capacity Maximum Temperature: 1750°F

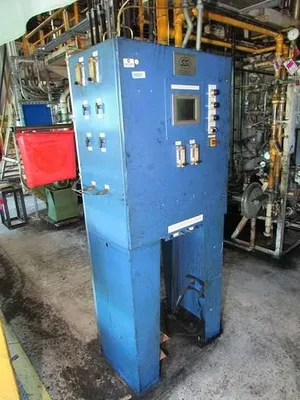

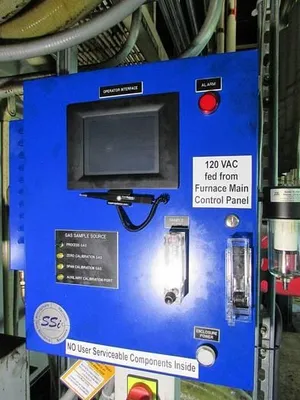

Control Panel: Control system with Allen Bradley SLC 5/04 PLC Temperature Controls: SSi controls with touchscreen interface
Overall Dimensions: Furnace: 11'6" Wide × 12'2" High × 14' Long (approx. 28,000 lbs) Quench: 8'6" Wide × 12' High × 13'6" Long (approx. 18,000 lbs)
