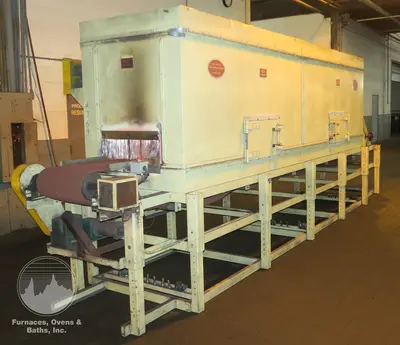

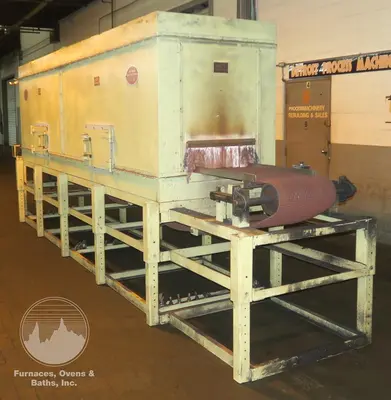

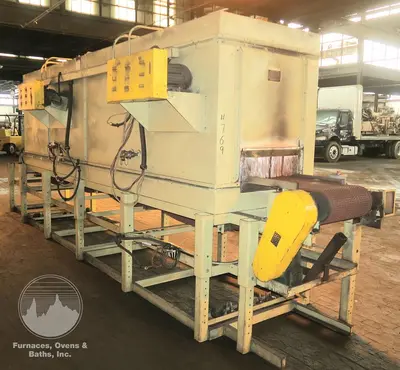

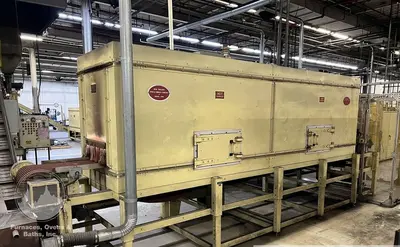

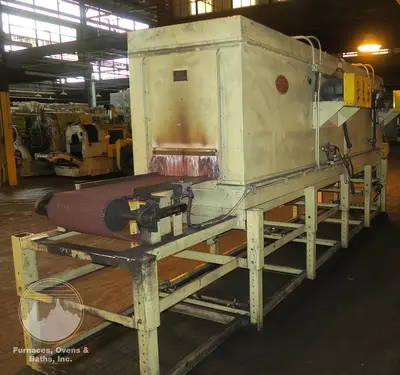

18"W x 6" High x 15' Long, Belt Conveyor Oven, Electric, 850-F, 2 Zone

New England Oven \u0026amp; Furnace Company Belt Conveyor Oven, 18\" W × 6\" H × 15' L heated zone. Continuous variable-speed two-zone conveyor oven with a 304 stainless steel 1\/2\" × 1\/2\" flat wire belt designed for electric heating applications up to 850°F.

Key Components & Features:
Two-zone conveyor oven.

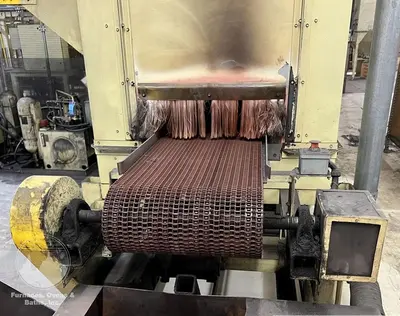

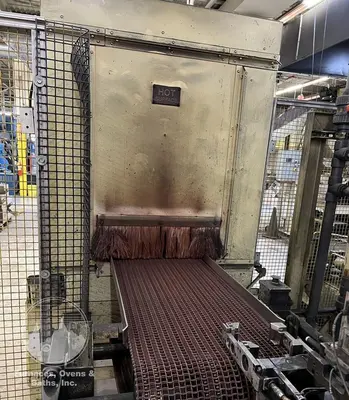

304 stainless steel 1/2" × 1/2" flat wire belt.
36" long load section.
24" long unload section.
Circulating fans and heating elements located in a separate plenum above the conveyor belt.
Top-down heated airflow pattern over conveyor belt.
Electrical drawings included.

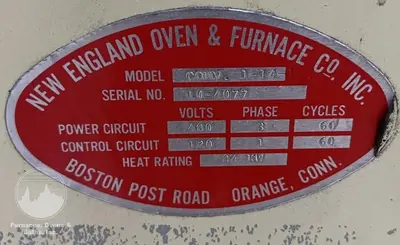

Manufacturer: New England Oven & Furnace Company
Model No.: Conveyor Oven
Serial No.: 10-4077

Fuel Type: Electric – 84 kW
Capacity / Output: 18" W × 6" H × 15' L heated zone
Maximum Temperature: 850°F

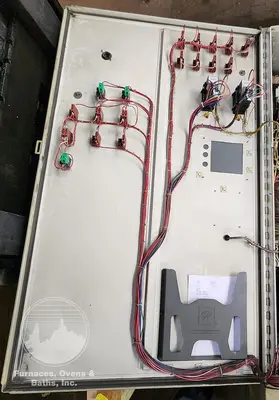

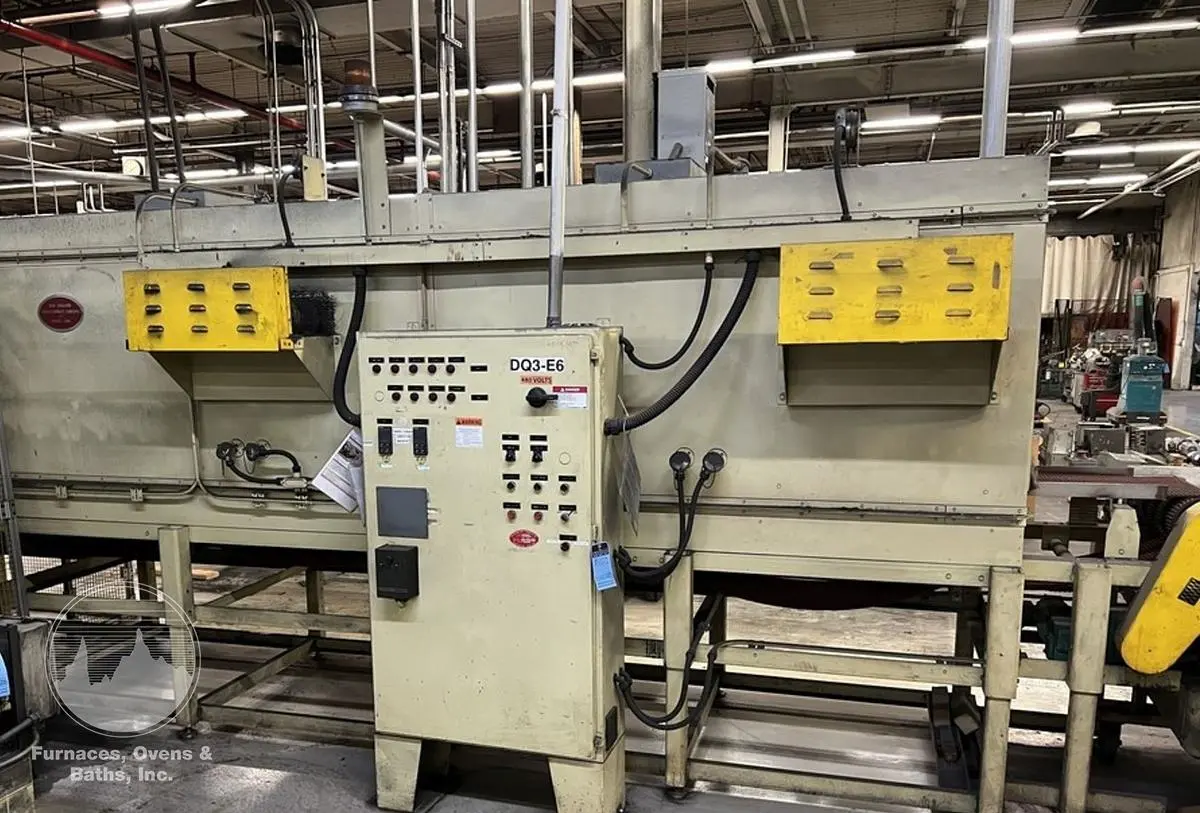

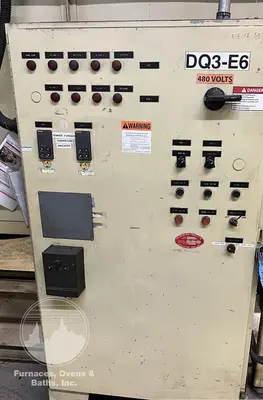

Control Panel: Free-standing enclosure with fused disconnect
Temperature Controls: Two (2) Watlow SD digital temperature controllers
Safety Controls: Two (2) Watlow 146 analog high limits
Controls: Allen Bradley SLC 500 PLC

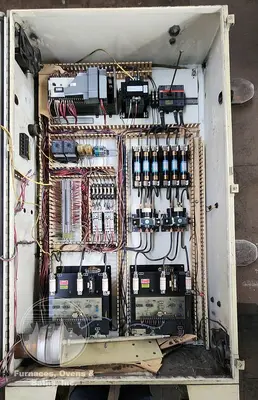

Electrical Components: Motor starters, fuses, relays, Payne SCRs, high-limit contactors

Power Requirements: 480 V / 3 Ph / 60 Hz / 84 kW

Overall Dimensions: 65" Wide × 96" High × 21' Long
