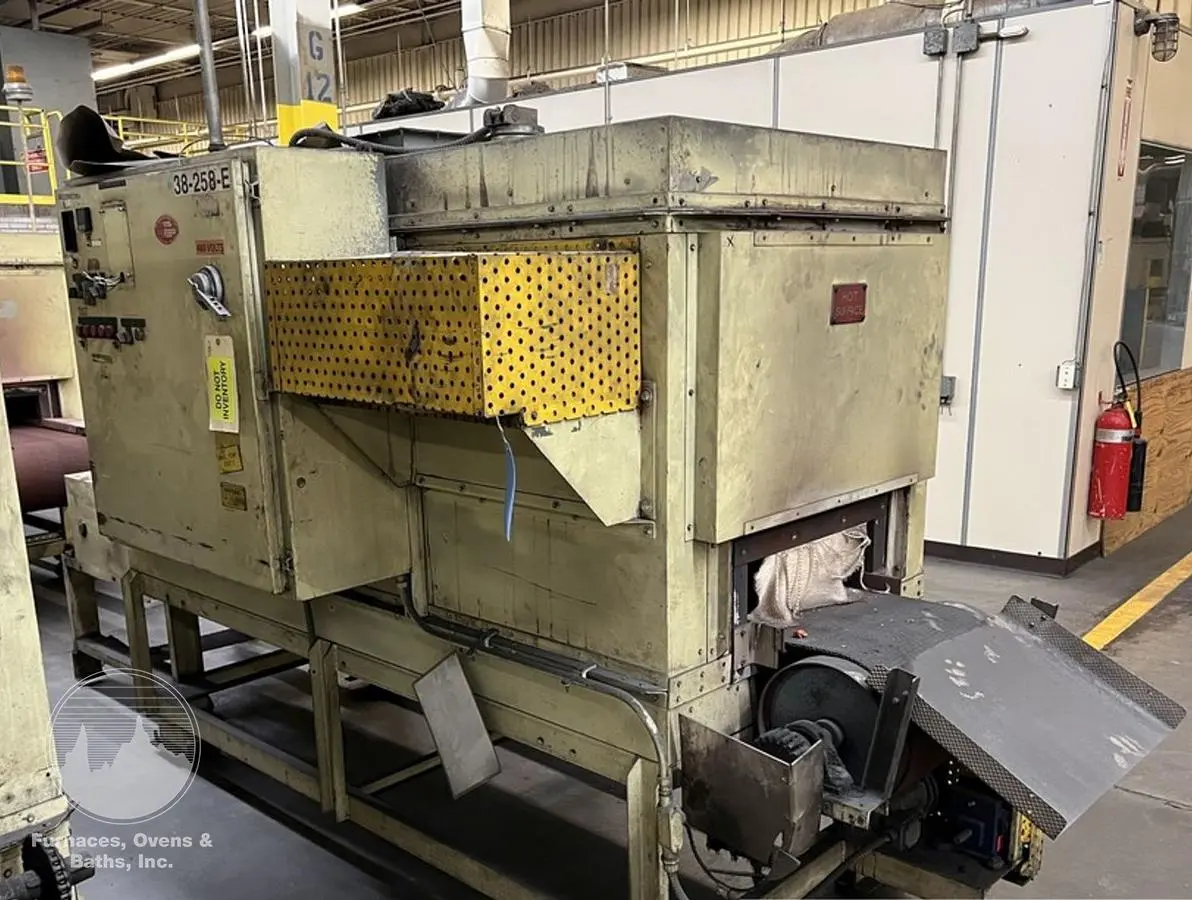

18"W x 4" High x 72" Long, Belt Conveyor Oven, Electric, 850-F
Overview
Description

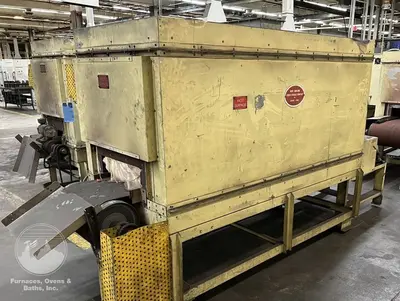

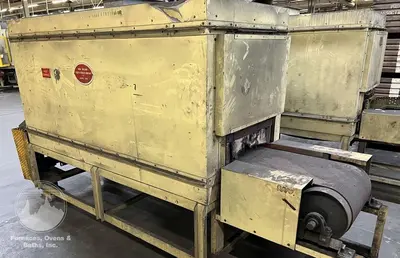

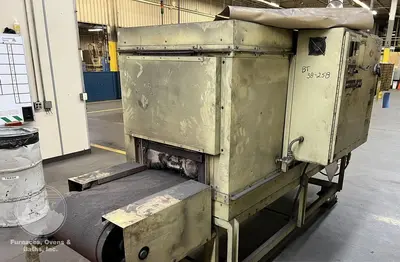

New England Oven \u0026amp; Furnace Company Belt Conveyor Oven, 18\" W × 4\" H × 72\" L heated zone. Continuous variable-speed conveyor oven with a fine mesh herringbone belt designed for electric heating applications up to 850°F.
Specifications
Key Components & Features:

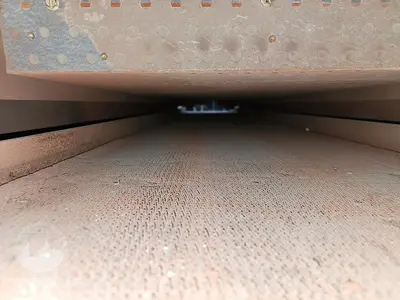

Fine mesh herringbone conveyor belt.
30" long load end.
12" long unload end.
Side-mounted circulating fan.
Plug-type heating element assembly mounted on top.
Top-down heated airflow pattern over conveyor belt.
Manufacturer: New England Oven & Furnace Company
Model No.: Conveyor Oven

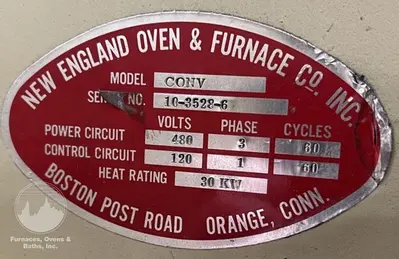

Serial No.: 10-3528-6
Fuel Type: Electric – 30 kW
Capacity / Output: 18" W × 4" H × 72" L heated zone
Maximum Temperature: 850°F

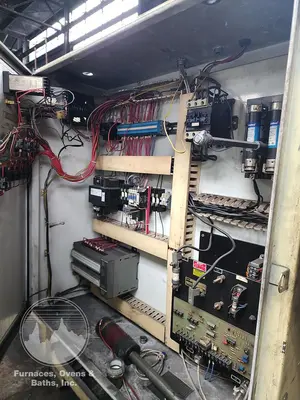

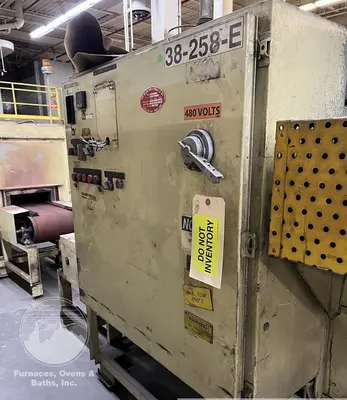

Control Panel: Side-mounted enclosure with fused disconnect
Temperature Controls: Eurotherm digital temperature controller
Safety Controls: Ogden analog high limit
Controls: Allen Bradley SLC 500 PLC
Electrical Components: Motor starter, fuses, relays, Payne SCR
Power Requirements: 480 V / 3 Ph / 60 Hz / 30 kW
Overall Dimensions: 60" Wide × 80" High × 144" Long
