30"W x 6"H x 10'L Conveyor Oven, Electric, 500°F
Overview
Description

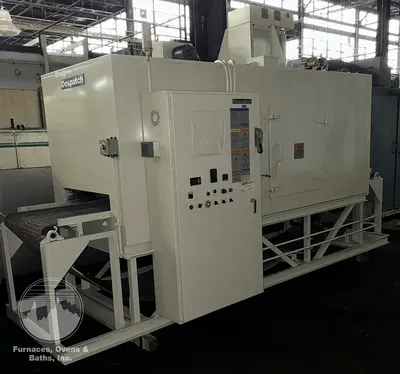

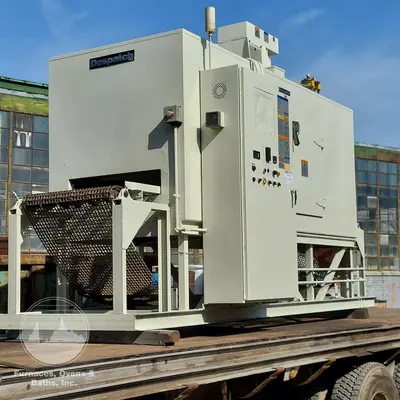

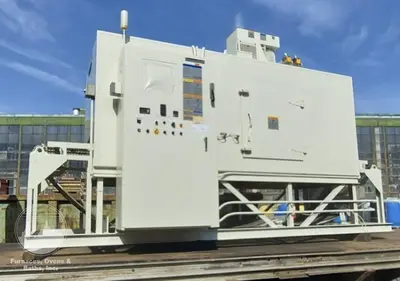

Despatch Conveyor Oven, 30\" W × 6\" H × 10' L. Variable-speed electric conveyor oven designed for uniform heating applications up to 500°F. Rated for use with some solvents (.041 GPH of MEK @ 230°F).
Specifications
Key Components & Features:

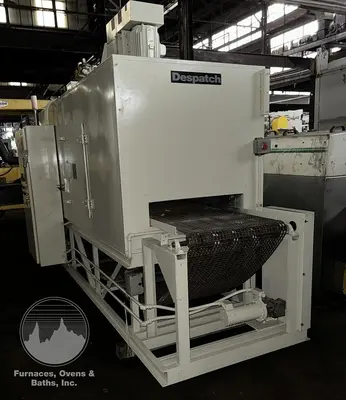

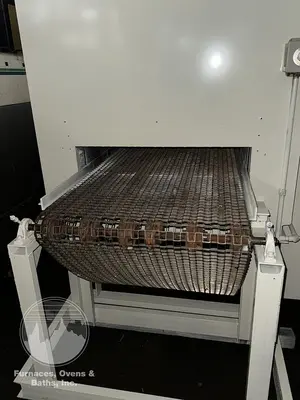

Variable-speed flat wire conveyor belt with 1" × 1" openings.
DC motor / speed reducer belt drive with speed control potentiometer and digital speed readout.
24" long load table at entrance.
24" long unload table.
Aluminized steel interior.

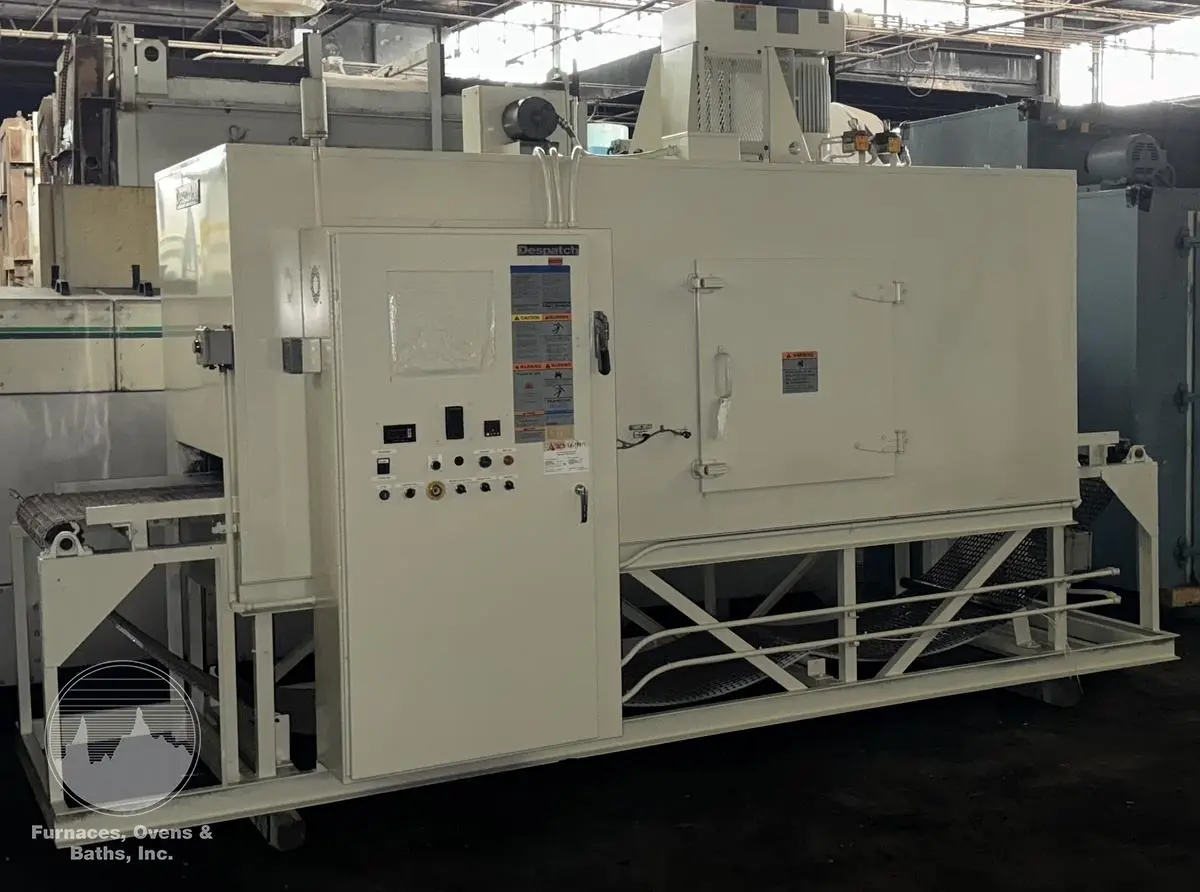

Side access door.
Coiled-style heating elements mounted above work chamber.
Roof-mounted circulating fan.
Top-down airflow pattern through adjustable louvered air ducts and down through belt for uniform heating.
Powered exhaust fan mounted on top.
Manufacturer: Despatch

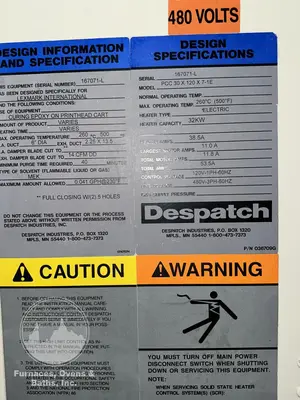

Model No.: PCC 30 × 120 × 7-1E
Serial No.: 167071-L
Fuel Type: Electric
Capacity / Output: 30" W × 6" H × 10' L
Maximum Temperature: 500°F

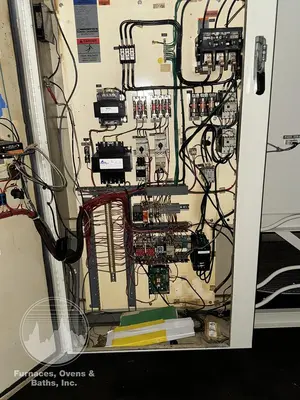

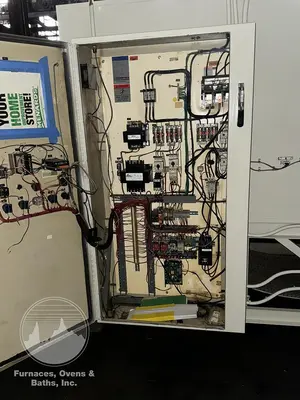

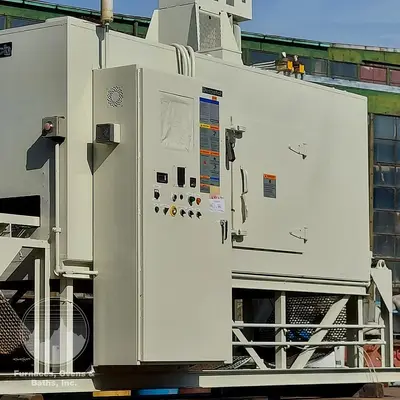

Control Panel: Side-mounted enclosure with flange-mounted fused disconnect handle
Temperature Controls: West Model 1422 digital temperature controller
Safety Controls: West Model 1162 high limit
Instrumentation: Partlow MRC 7000 round chart temperature recorder
Electrical Components: Solid state relays, high limit contactor, motor starters, fuses
Power Requirements: 480 V / 3 Ph / 60 Hz / 32 kW / 53 FLA
Overall Dimensions: 64" Wide × 8'8" High × 14'2" Long
