30"W x 12"H x 14'L High Temperature Belt Conveyor Oven, Electric, 1000°F

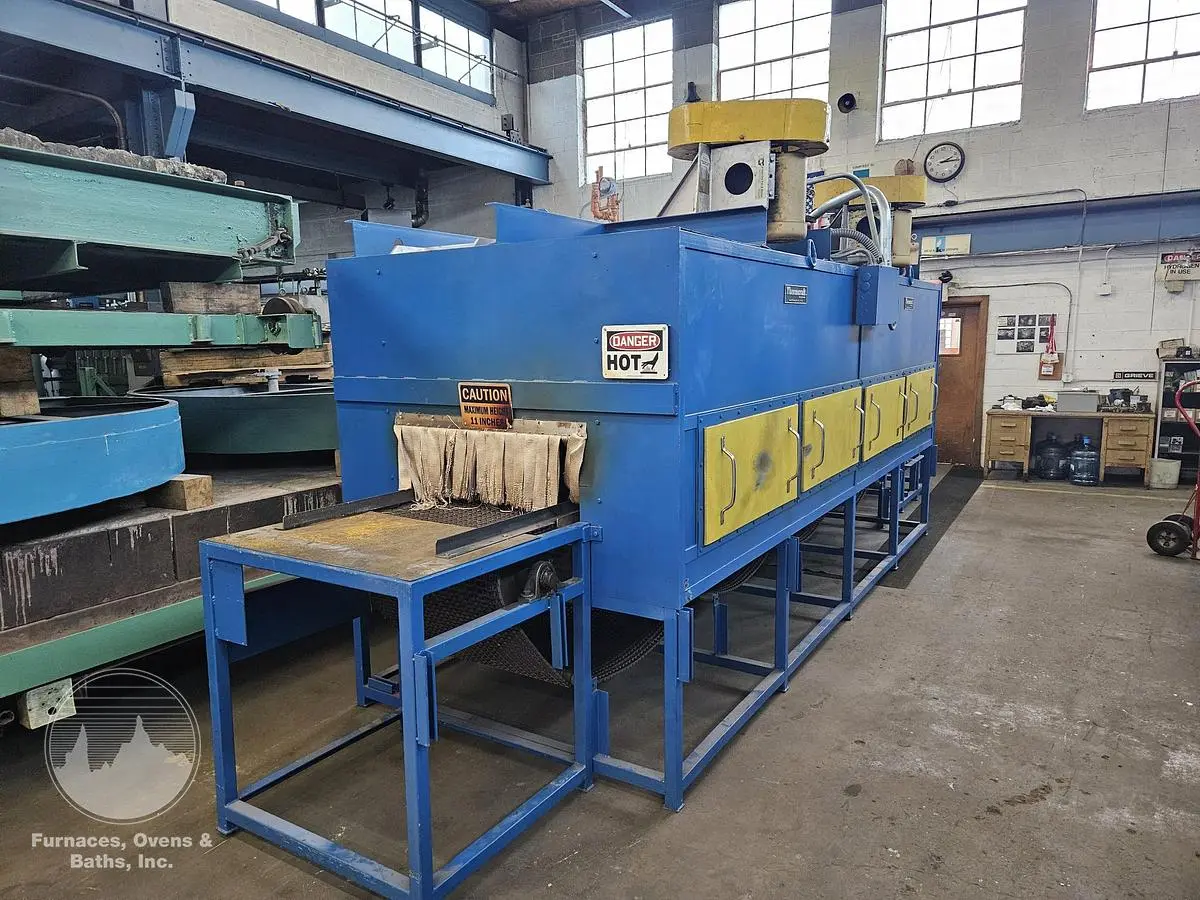

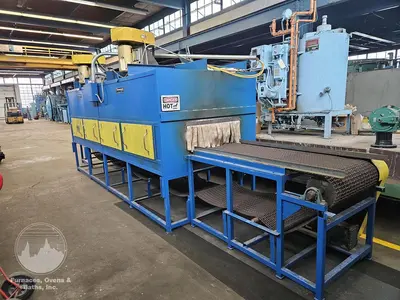

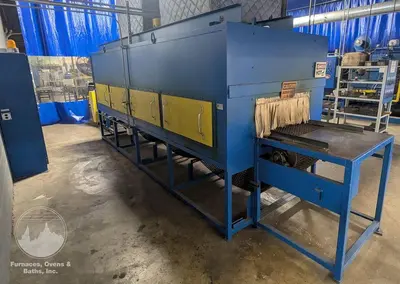

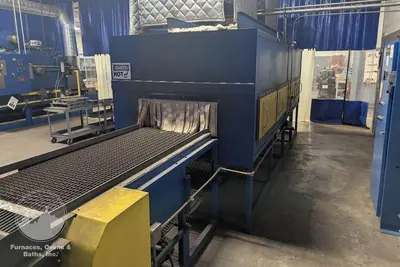

Thermcraft High Temperature Belt Conveyor Oven, 30\" W × 12\" H × 14' L heated length. Stainless steel lined belt tempering furnace designed for electric heating applications up to 1000°F.

Key Components & Features:

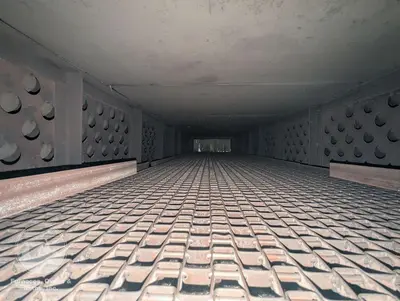

Stainless steel lined chamber.

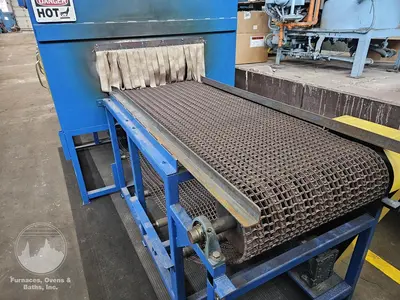

Stainless steel flat wire belt.

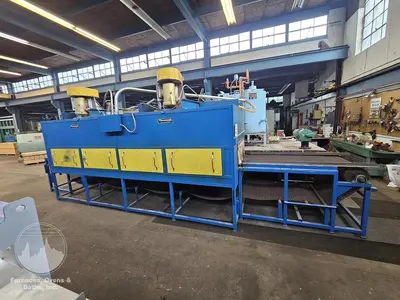

Two (2) top-mounted alloy recirculating fans, 5 HP each.
Variable-speed belt.

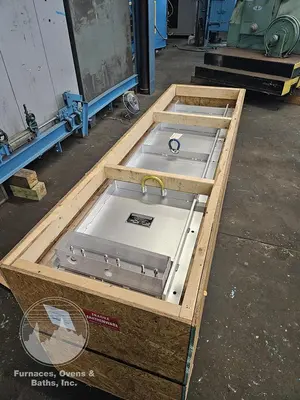

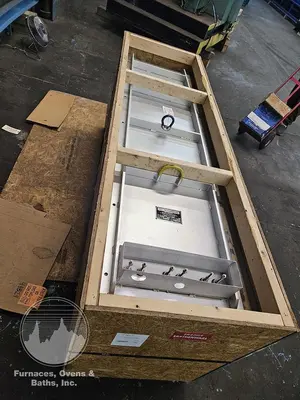

Spare parts include one (1) new heating element bank (50 kW, still in crate) and recirculating fan assembly.

Manufacturer: Thermcraft
Model No.: OVC-12-30-168-2-482-A
Serial No.: 982173
Year: 2003

Fuel Type: Electric – 100 kW
Capacity / Output: 30" W × 12" H × 14' L heated length
Maximum Temperature: 1000°F

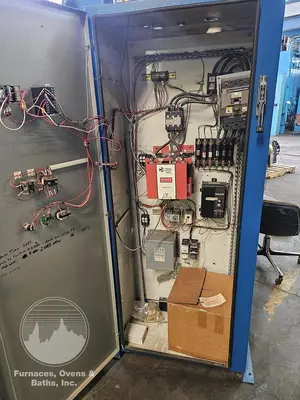

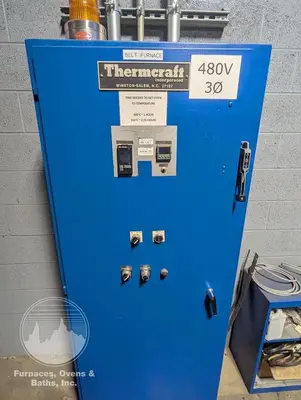

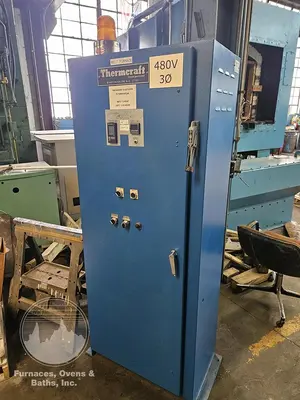

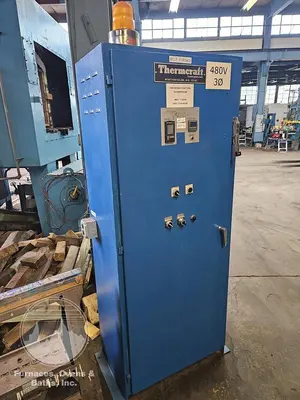

Control Panel: Free-Standing Control Panel

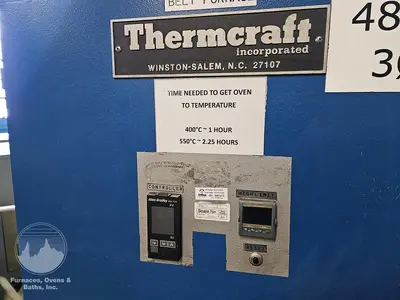

Temperature Controls: Allen Bradley Digital Temperature Controller
Safety Controls: Eurotherm Digital High Limit

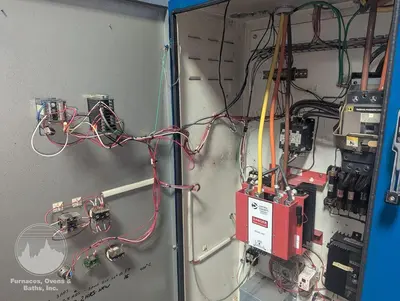

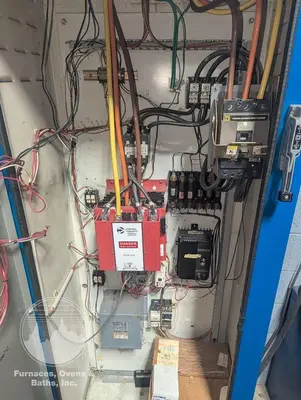

Electrical Components: Control Concepts proportional SCR power controller (145 Amps)

Power Requirements: 480 V / 3 Ph / 60 Hz / 100 kW

Overall Dimensions: 6’ Wide × 24’ Long × 8’10” High; 7,500 lbs
