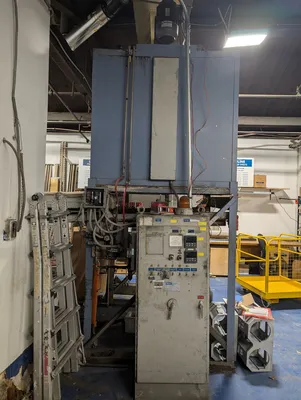

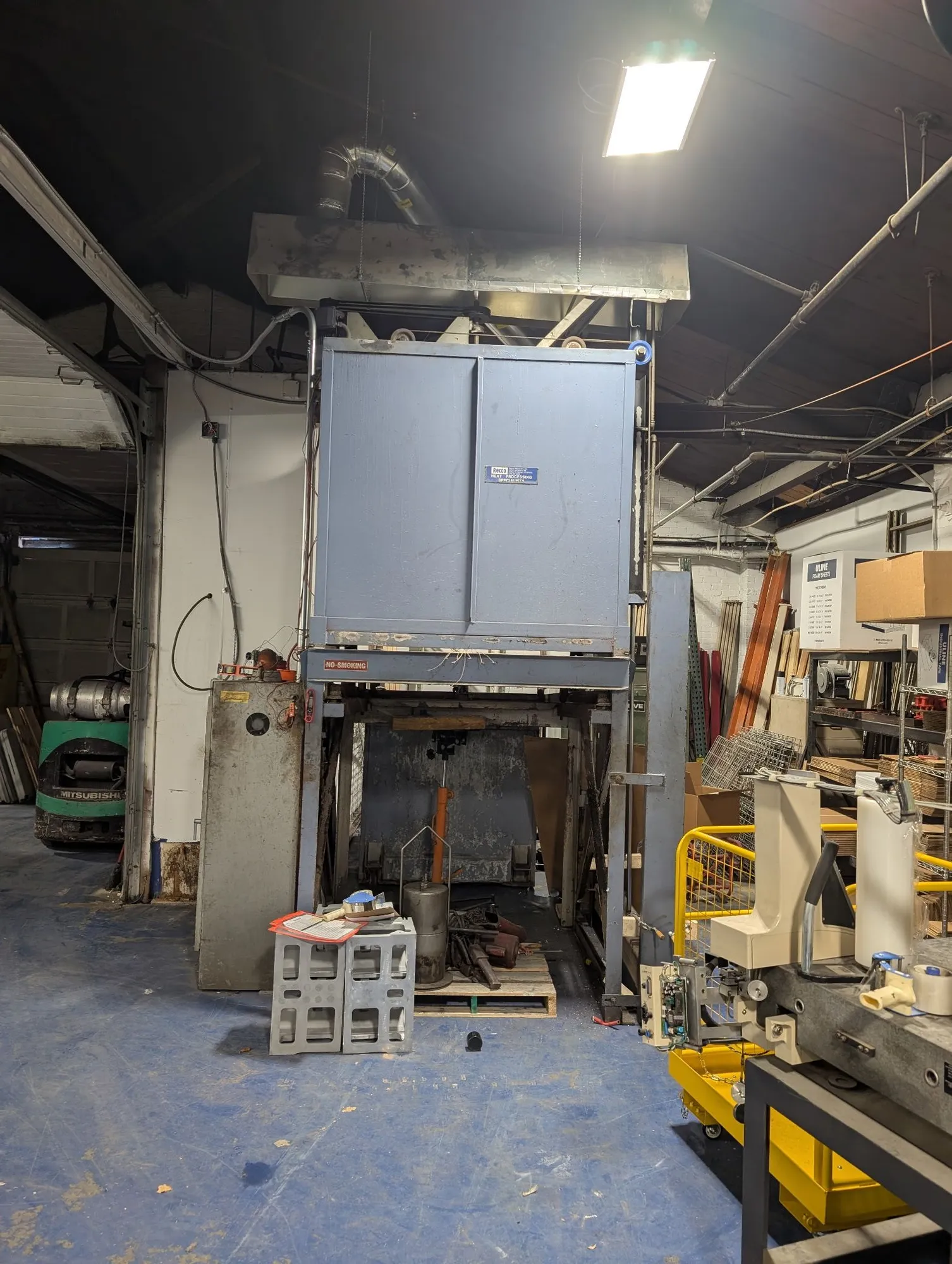

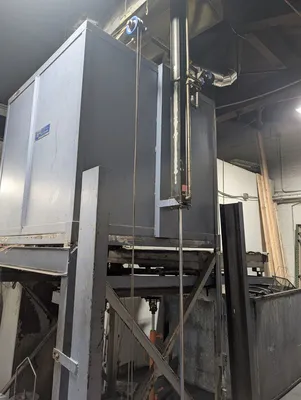

Recco Aluminum Drop Bottom Furnace

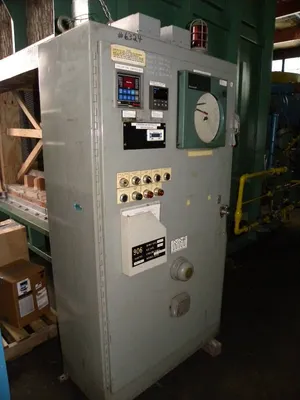

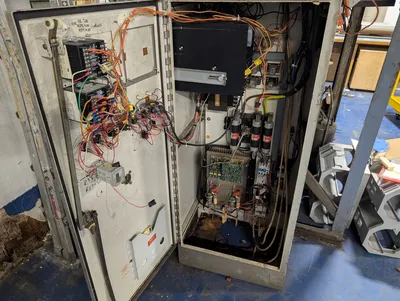

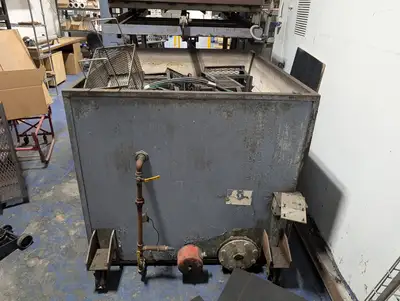

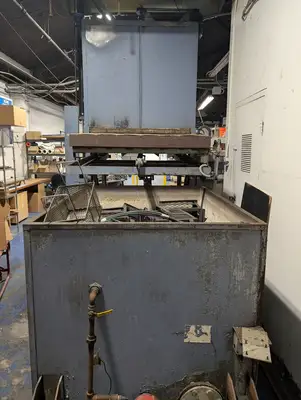

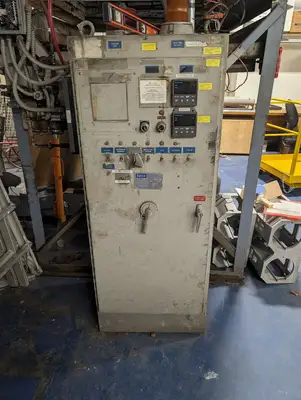

TYPE OF EQUIPMENT: Aluminum Drop Bottom Furnace MANUFACTURER: Recco MODEL NO: R333-BD SERIAL NO: 8607501581 EFFECTIVE WORKING DIMENSIONS: 36” Wide x 36” Deep x 36” High FUEL: Electric – 460\/3\/60 – (50 Amps\/Leg) – 40 KW TEMPERATURE RANGE: 1100° F DESCRIPTION: Ceramic Fiber Lined, Recirculating Drop Bottom Furnace complete with 3 H.P. Alloy Recirculating Fan, Inner Chamber Alloy Air Shroud, Pneumatic Horizontal Sliding Door, Pneumatic Quench Mechanism, Insulated Water Quench Tank (Manual), and Alloy Work Basket. INSTRUMENTATION: Free-Standing Control Panel complete with Honeywell Digital Temperature Controller, Honeywell Digital High Limit, and Honeywell “Multitrend” Strip Chart Recorder. CONDITION: Very Good OVERALL DIMENSIONS: Furnace: 7’ Wide x 5’ Deep x 7’8” High Tank: 4’ Wide x 6’6” Deep x 4’ High Stand: 5’ Wide x 9’6” Deep x 6’ High APPROX. WEIGHT: 7,500 lbs.
