48"W x 72"H x 48"L, B1-750, Gas Fired Walk-In Oven, 750°F
Overview
Description
Grieve B1-750 Gas Fired Walk-In Oven, 48\" W × 72\" H × 48\" L. Gas-fired walk-in oven designed for heating applications up to 750°F.
Specifications
Key Components & Features:

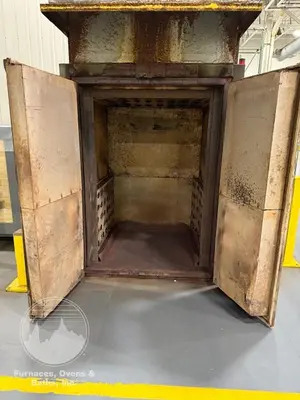

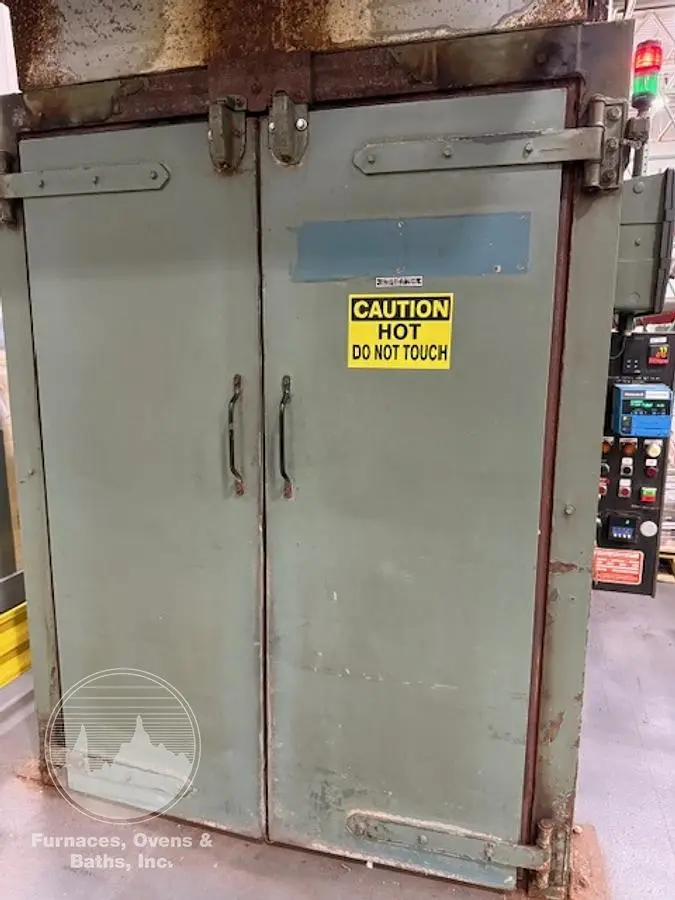

Double doors on one end with Brixon door latches.
Door limit safety switch.

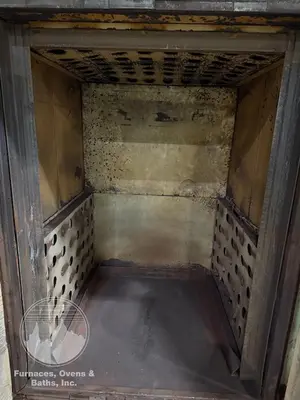

Insulated floor.
High-temperature ceramic fiber door gasketing.

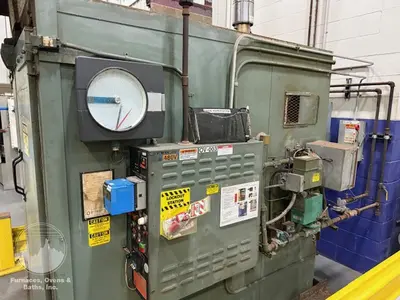

Side-mounted Incinomite package burner with Honeywell flame safety and spark ignition.
Rear-mounted 2 HP recirculating fan.
Combination horizontal and vertical airflow pattern.
325 CFM powered exhauster mounted on rear wall.

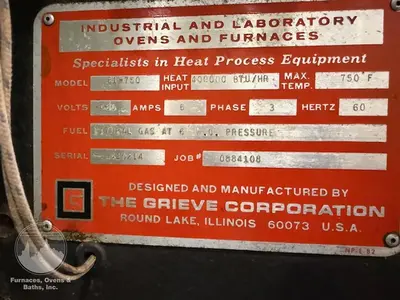

Manufacturer: Grieve
Model No.: B1-750
Serial No.: 410214 / JOB #0884108
Fuel Type: Natural Gas – 400,000 BTU/hr @ 6" W.C.
Capacity / Output: 48" W × 72" H × 48" L
Maximum Temperature: 750°F
Control Panel: Enclosure attached to right-hand side of oven
Temperature Controls: Honeywell digital temperature controller
Safety Controls: Honeywell digital high limit
Power Requirements: 460 V / 3 Ph / 60 Hz / 6 Amps
Overall Dimensions: 84" Wide × 84" High × 108" Long
