Surface Combustion Box Temper 30"W x 20"H x 48"L, Gas Fired, 1250°F
Overview
Description

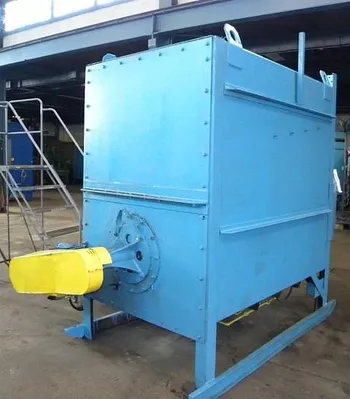

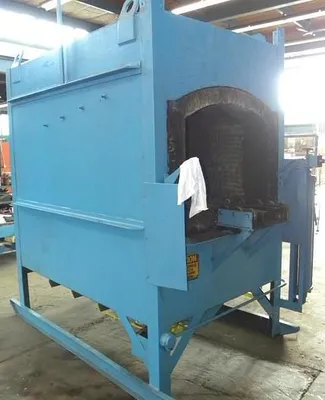

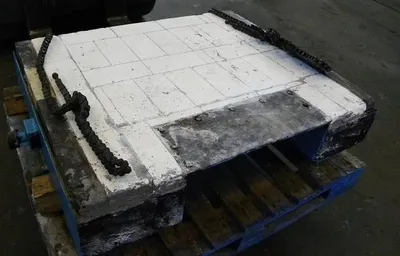

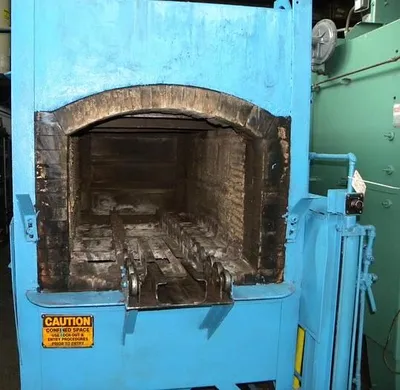

Surface Combustion Box Temper Furnace, 36\" W × 30\" H × 48\" L. Ceramic fiber lined box tempering furnace designed for gas-fired heat treating up to 1250°F. Front door newly rebricked.
Specifications

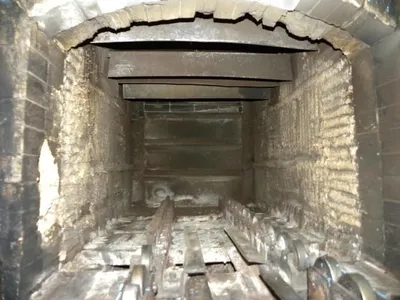

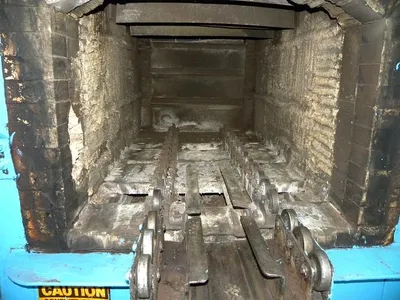

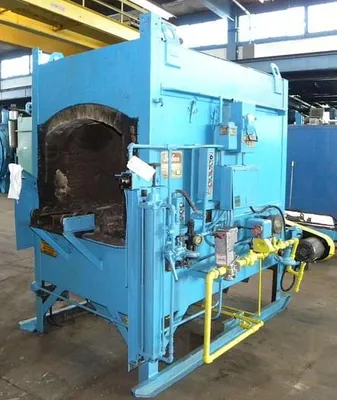

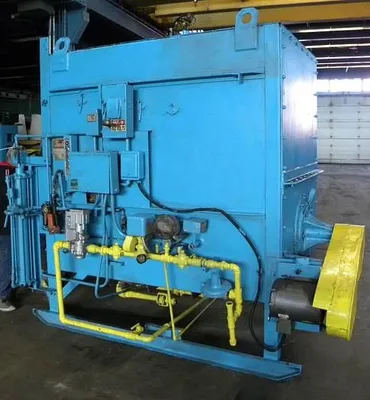

Key Components & Features: Ceramic fiber lined chamber. Rear-mounted alloy recirculating fan (10 HP). Below-hearth mounted atmospheric burner system. Alloy roller rail hearth. Vertical rising pneumatic front door. Side-mounted control panel with motor starter and PCI flame safety system.
Manufacturer: Surface Combustion Model No.: HFC-36-54 Serial No.: BX-35656-3
Fuel Type: Natural Gas – 700,000 BTU’s Capacity / Output: 36" W × 30" H × 48" L Maximum Temperature: 1250°F
Control Panel: Side-Mounted Control Panel Safety Controls: PCI Flame Safety System
Overall Dimensions: 8' Wide × 12' High × 9' Long (approx.)
