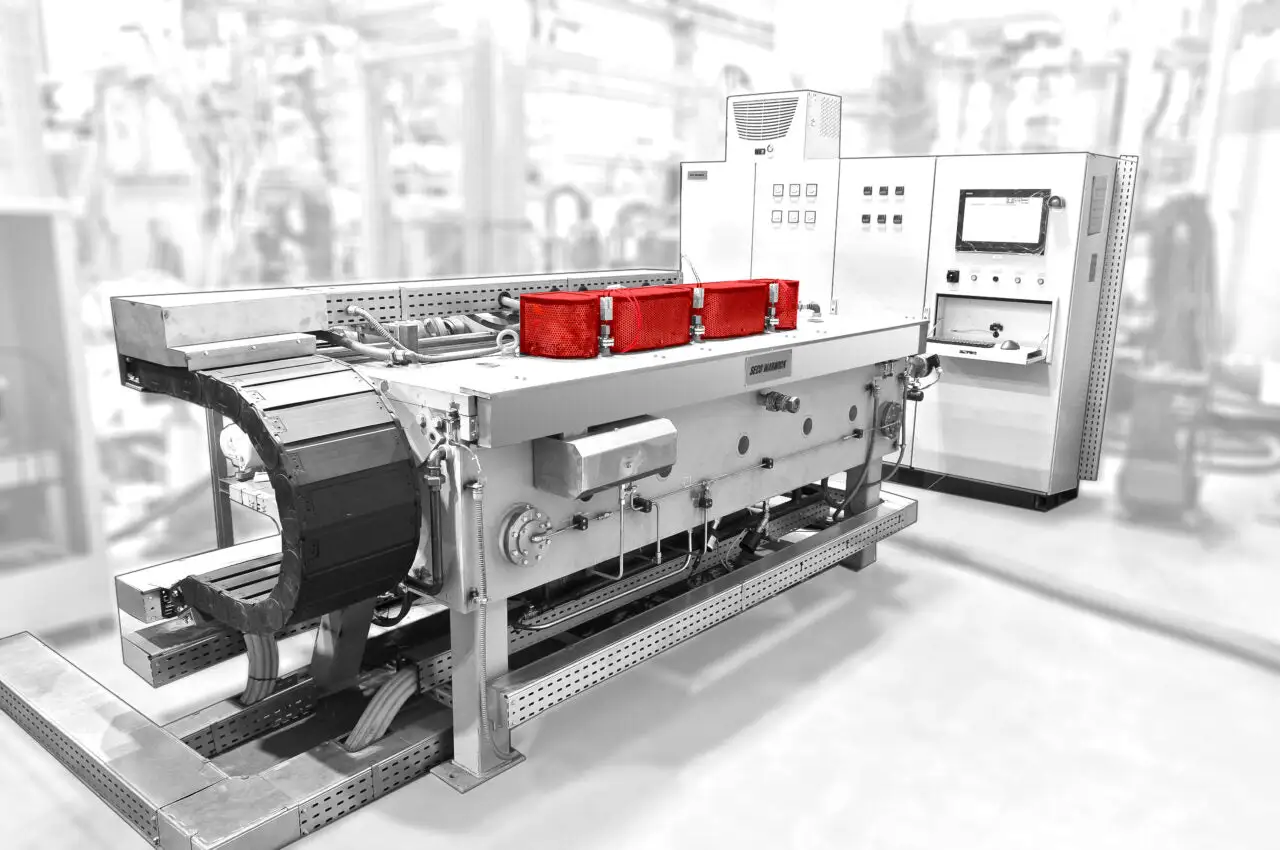

The vacuum furnace TYPE 200X1000

SECO\/WARWICK vacuum furnace, Type 200X1000. Vacuum furnace designed for heat treatment and heat-chemical treatment under laboratory conditions. Intended for operation in vacuum up to 10⁻⁴ mbar and recommended for low-pressure carburizing (LPC, without quenching function) and copper brazing. Cooling chamber installation is available upon client request. Technical assessment, modifications, relocation, and installation within the EU are available.

Key Components & Features:
Vacuum furnace for heat treatment and heat-chemical treatment.
Recommended for low-pressure carburizing (without quenching function).
Recommended for copper brazing.

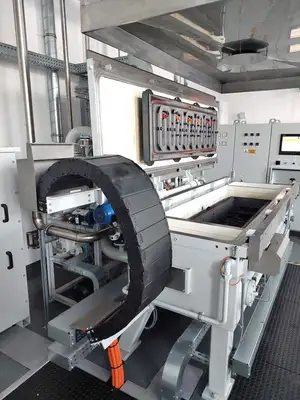

Cooling chamber installation available upon request.

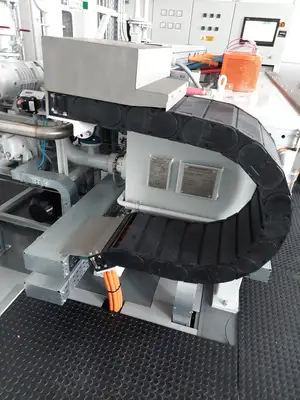

Hydraulic door closure.
Six heating zones.

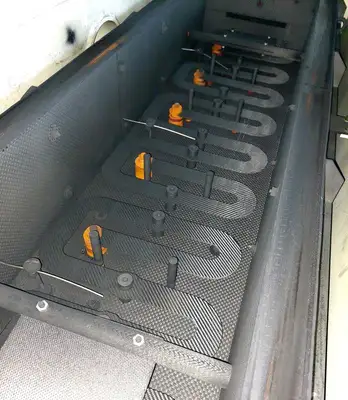

Heating elements arranged above and below the load.

Manufacturer: SECO/WARWICK
Model No.: 200X1000
Year: 2017
Location: Poland - SECO/WARWICK Headquarters

Capacity / Output:
Usable heating zone: Ø200 mm × 1000 mm

Maximum Temperature:
1200°C with Type S control thermocouples
1120°C with Type N control thermocouples

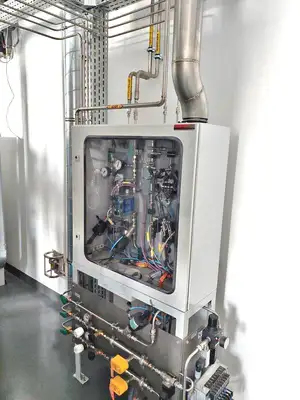

Vacuum System:
Vacuum level: 10⁻⁴ mbar
Infiltration: < 3 × 10⁻³ mbar × l/s
Maximum operating pressure: 50 mbar
TRIVAC D40B mechanical pump – Oerlikon Leybold
Roots WS 501 pump – Oerlikon Leybold
Roots WS 251 pump – Oerlikon Leybold

Construction:
Housing material: Carbon steel
Housing volume: 0.75 m³
Heating chamber housing material: Carbon steel
Insulation material: 50 mm graphite plate
Heating element material: Graphite 1501G / Premium
Heating element power: 54 kW

Controls:
Programmable temperature controller based on PLC
Safety controller: Eurotherm 3216i

Instrumentation:
Control and protective thermocouple: Type N
Vacuum gauges:
TTR 91S – Oerlikon Leybold
CTR 100 10 Torr – Oerlikon Leybold
PTR 90 – Oerlikon Leybold

Performance:
Temperature uniformity in vacuum from 750 to 1200°C: ±2°C

Weight:
3000 kg
