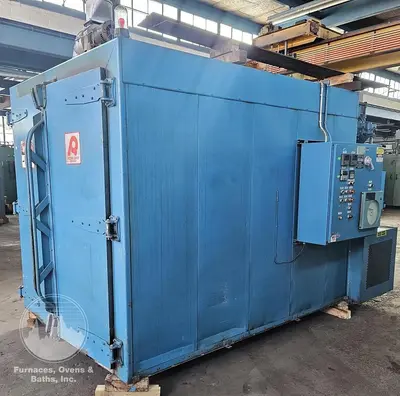

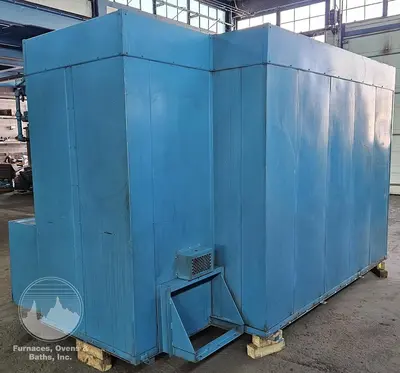

60"W x 72"H x 96"L, Class A Gas Fired Walk-In Oven, 850°F, Solvent Rated

Key Components & Features:
NFPA 86 Class A design.

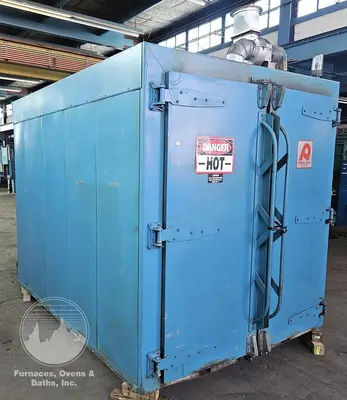

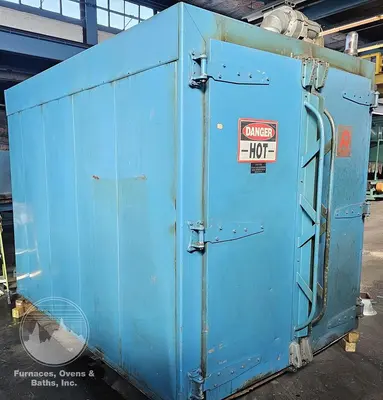

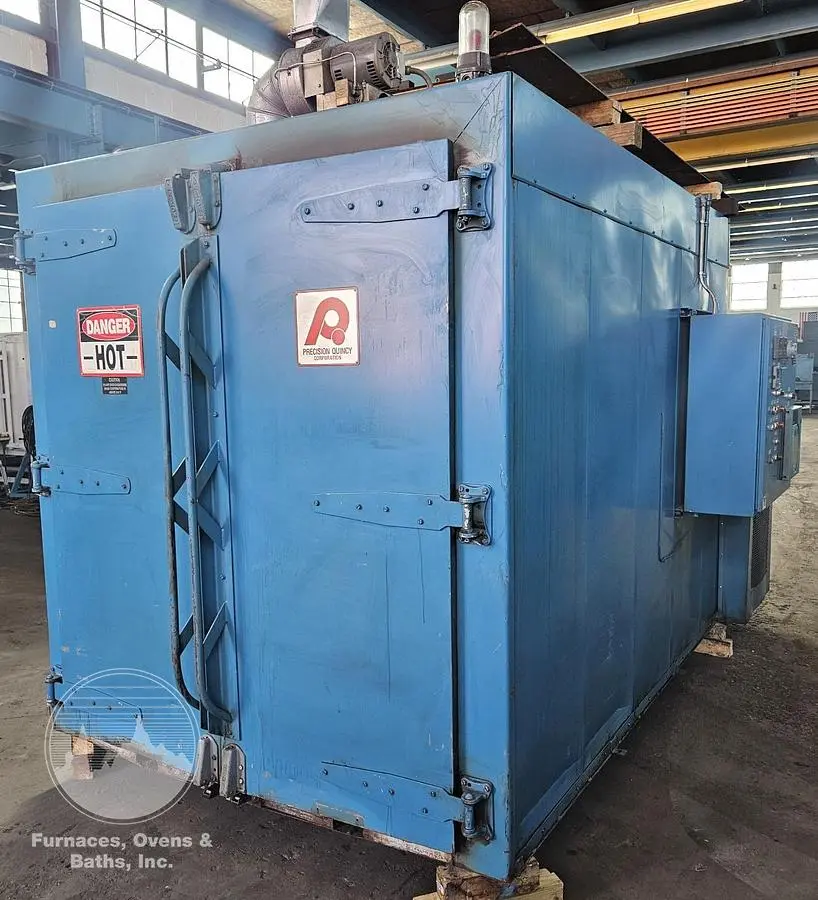

Double doors on one end with heavy-gauge strap hinges.
Brixon spring-tension latches.
Silicone rubber door gaskets for good seal.

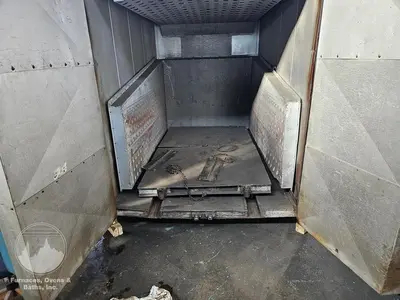

Aluminized steel interior with insulated floor and floor tracks.
Floor tracks are 4-1/2" wide on 38" centers.

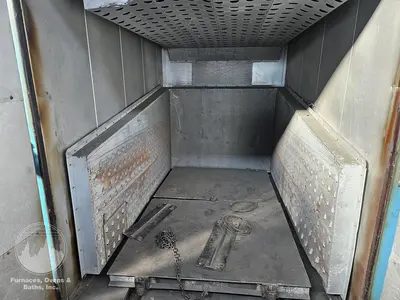

Punched louvered air duct panels on both side walls.
7.5 HP belt-driven high-volume circulating fan rated at 6600 CFM.

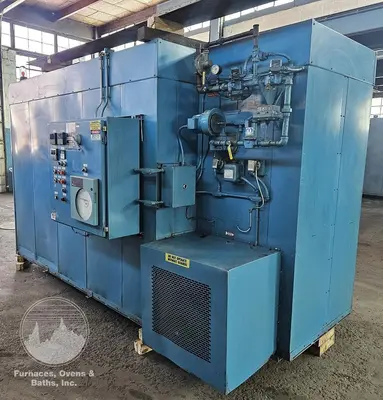

Eclipse 236 JIB-F package burner with flame safety and spark ignition.
Combination horizontal and vertical airflow pattern across work area for uniform heating.
Powered exhaust fan mounted on top.
Solvent rated with Class A designation from manufacturer.
Roll-in cart included.

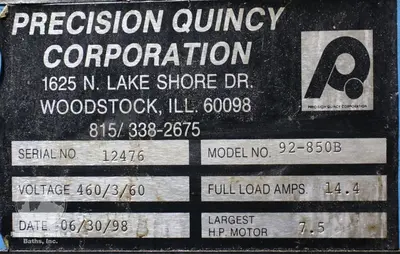

Manufacturer: Precision Quincy
Model No.: 92-850B
Serial No.: 12476
Year: 1998

Fuel Type: Natural Gas – 800,000 BTU/hr @ 6" W.C.
Capacity / Output: 60" W × 72" H × 96" L
Maximum Temperature: 850°F

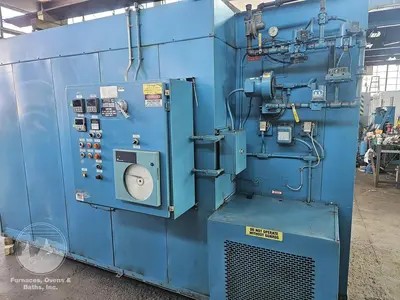

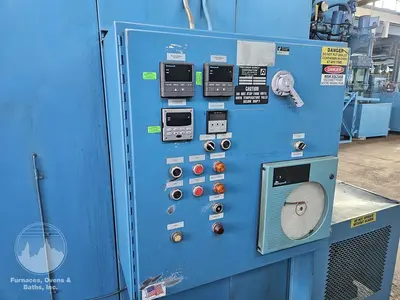

Control Panel: UL-listed enclosure attached to right-hand side of oven
Temperature Controls: Honeywell UDC 2300 digital temperature controller
Safety Controls: Two (2) Honeywell UDC 2000 digital high limits
Instrumentation: Digital timer; circular chart recorder

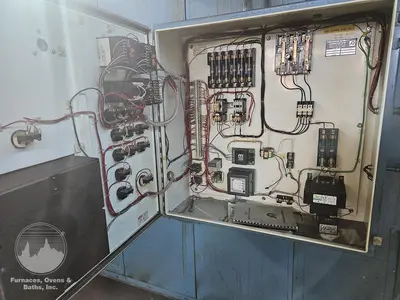

Electrical Components: Control switches with indicating lights, motor starters, fuses, purge timer, relays

Power Requirements: 430 V / 3 Ph / 60 Hz / 15 FLA

Overall Dimensions: 8'6" Wide × 9'6" High × 14' Long; 6,000 lbs
