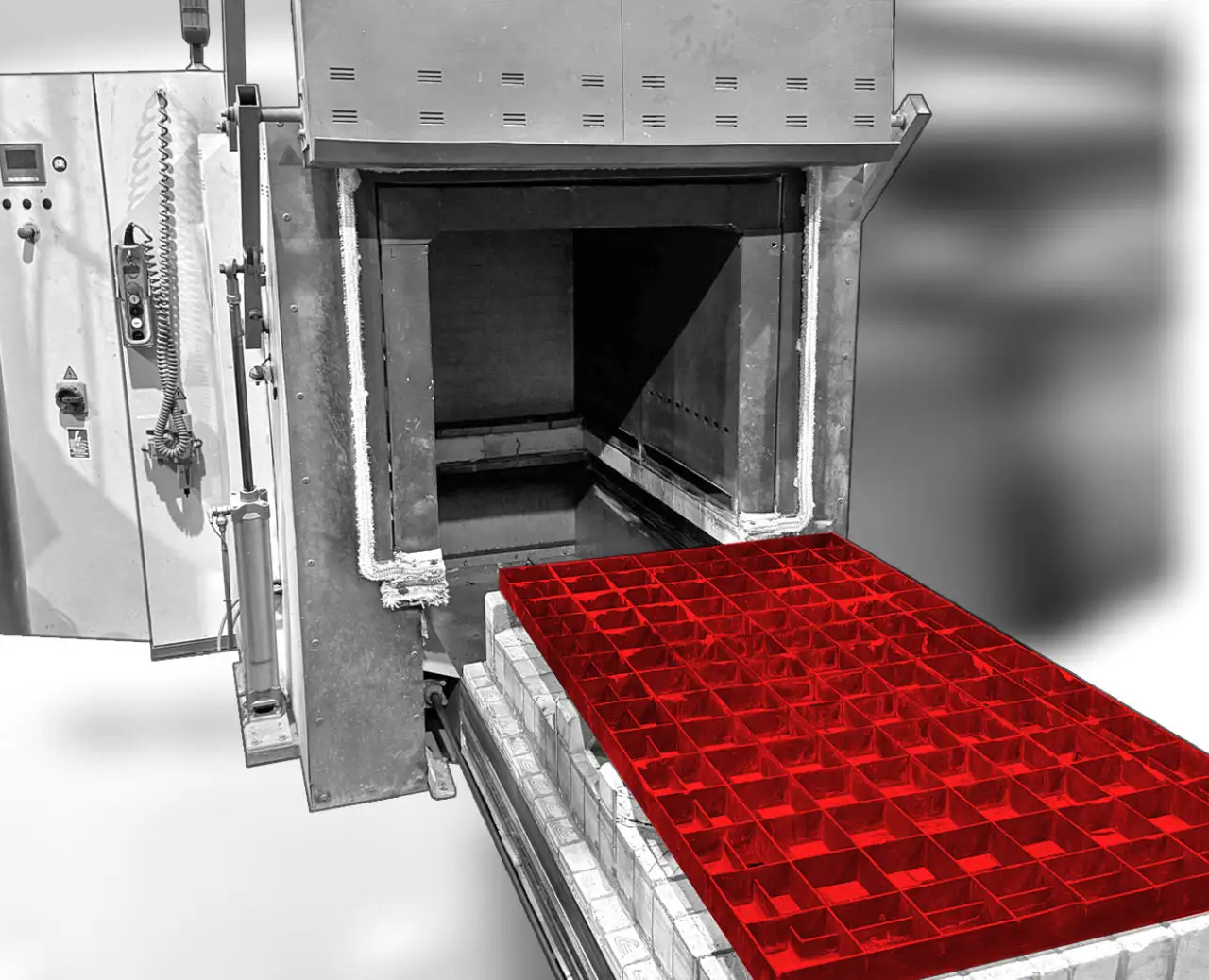

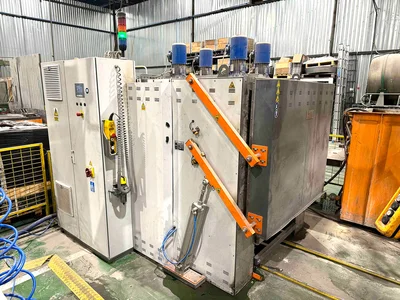

Electric Chamber Furnace

Electric chamber furnace with retractable hearth and forced air circulation. Electric resistance furnace intended for heat treatment of metals in an oxidizing atmosphere at temperatures up to 700°C. Furnace is operational with on-site testing possible. Technical assessment, relocation, and installation within the EU are available.

Key Components & Features:

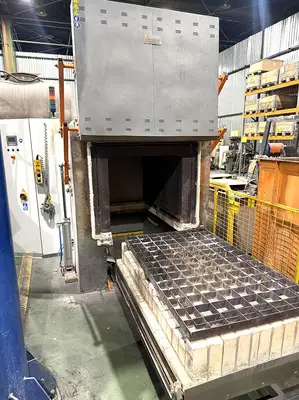

Retractable hearth.
Forced air circulation.
Electric resistance heating.
Designed for operation in an oxidizing atmosphere.
Two heating zones with SSR control.

Manufacturer: Kepka Group Furnace Production
Year: 2019
Location: Central Poland

Fuel Type: Electric

Capacity / Output:
Heating chamber capacity: 780 dm3
Heating chamber dimensions: 800 mm W × 1300 mm D/L × 750 mm H
Permissible hearth load: 800 kg

Maximum Temperature: 700°C

Power Requirements:
Rated voltage: 230/400 AC [V]
Rated power: 60 kW

Controls:

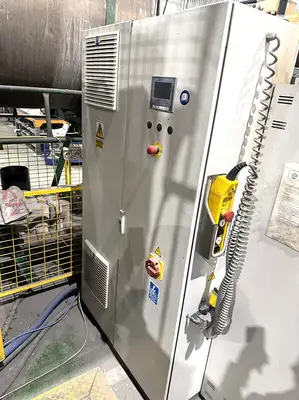

PLC panel: Siemens KTP 400 COMFORT

Instrumentation:
Thermocouples: 2 × Guenther Type K, 280 mm

Performance:
Deviation from rated temperature: ±10°C
