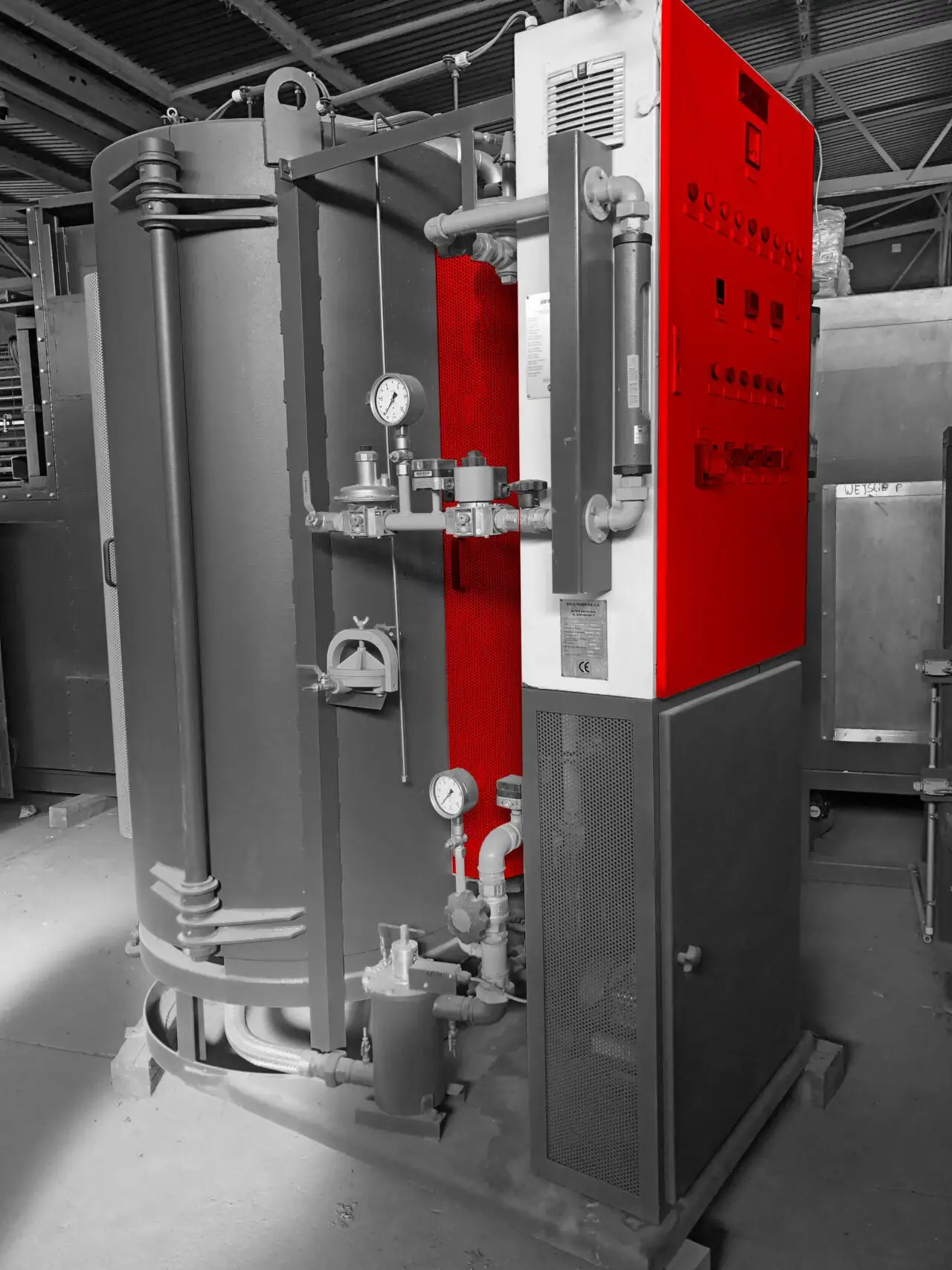

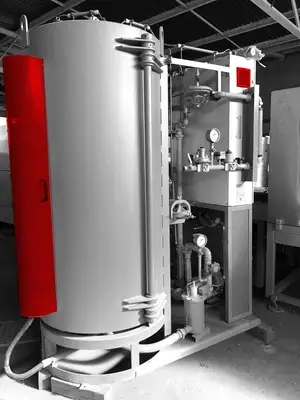

ENDOTHERMIC ATMOSPHERE GENERATOR

Key Components & Features:
Endothermic atmosphere generator.
Version without automatic gas flow regulation.
Catalyst: 5–8% Ni, 30 dm3.
Designed for methane or propane process gas.
Technical assessment, relocation, and installation within the EU are available.

Manufacturer: SECO/WARWICK
Model No.: G-60-ET
Year: 2013
Location: Świebodzin, Poland

Capacity / Output:
ENDO atmosphere output: 60 m3/h
Dew point: 0°C ± 5°C

Maximum Temperature: 1050°C

Power Requirements:
Installed power: approx. 32 kW
Heating element supply: 30 kW
3 × 400 V / 50 Hz (3 × 380 V / 50 Hz)

Process Data:
Process gas requirement:
Methane: 13.6 Nm3/h
Propane: 5 Nm3/h
Calorific value of process gas:
Methane: 35 MJ/m3
Propane: 93 MJ/m3
Air-gas ratio:
Propane: 7.5 to 1
Methane: 3.5 to 1

Utilities:
Cooling water supply: G1/2", 2–5 bar, 1.2 m3/h, water temp. <25°C, hardness ≤10°n
Process gas supply: G3/4", 150–400 mbar
Combustion atmosphere outlet: DN50 pipe, free outlet, max. 60 m3/h
Sample extraction point: 30–80 mbar, connection with 6 mm inner diameter
ENDO atmosphere exhaust to furnace: G2", 30–80 mbar, 60 m3/h
Flue gas extraction: approx. 1700 m3/h at approx. 400°C

Instrumentation:
Temperature sensor: Type S

Weight:
Approx. 2600 kg
