Centorr Vacuum Industries, 24"W x 24"H x 48"L, 2530°C/4586°F
Overview
Description

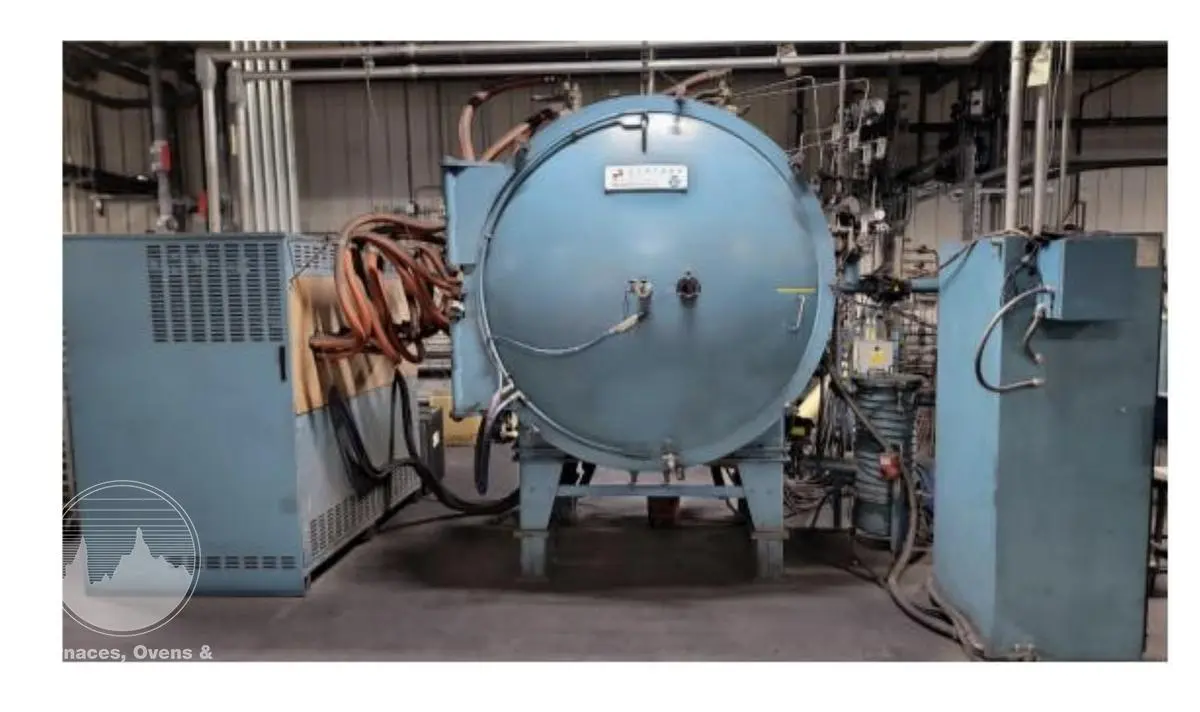

Centorr Vacuum Industries Horizontal Front-Loading Vacuum Furnace, 24\" W × 24\" H × 48\" L. Double-wall vacuum furnace with graphite heating elements designed for ultra-high-temperature processing up to 2530°C (4586°F).
Specifications
Key Components & Features:
Horizontal front-loading configuration.
Double-wall stainless steel shell.
Graphite board insulation, 4" total thickness.
Graphite heating elements with two-sided arrangement, three elements per side, six total.
Large binder trap.
Four-channel process gas control.
Automatic pressure regulation.
Hot zone cooling blower.
Yokogawa FX-1000 six-channel data logger.
Manufacturer: Centorr Vacuum Industries
Model No.: 3530
Serial No.: 35044 / 35141
Capacity / Output: 24" W × 24" H × 48" L effective hot zone
Maximum Temperature: 2530°C / 4586°F
Vacuum System: Kinney KT-170-LP pump

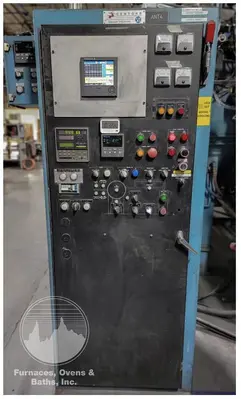

Temperature Controls: Honeywell DCP-552 controller
Instrumentation: Ircon Modline 5 pyrometer (Fluke)
Power Requirements: 460 V / 3 Ph / 60 Hz / 1000 Amps
