Debind and Sinter Vacuum Furnace Unused
Overview
Description

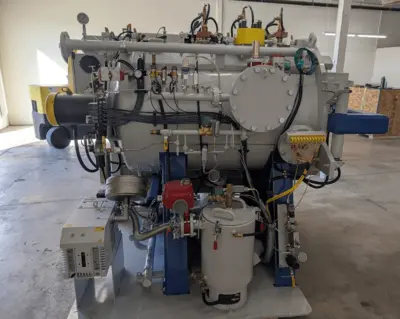

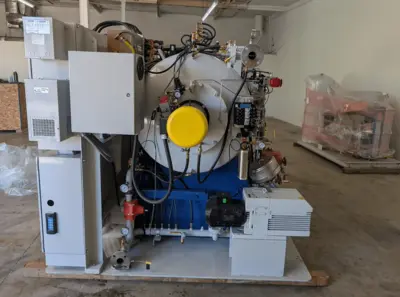

Unused Ipsen Custom \"Titan\" Debind and Sinter vacuum furnace, Model DS 12x12x24 2 bar, built in 2024. Working dimensions of 12\" wide × 12\" high × 24\" deep with maximum load capacity of 400 pounds. Furnace was built for a manufacturer who never installed it and is in like new condition, complete with spare parts and manuals.
Specifications
Key Components & Features:
Binder Trap
2 bar quenching system.
Argon quench with 15 HP motor.
Curved graphite heating elements.

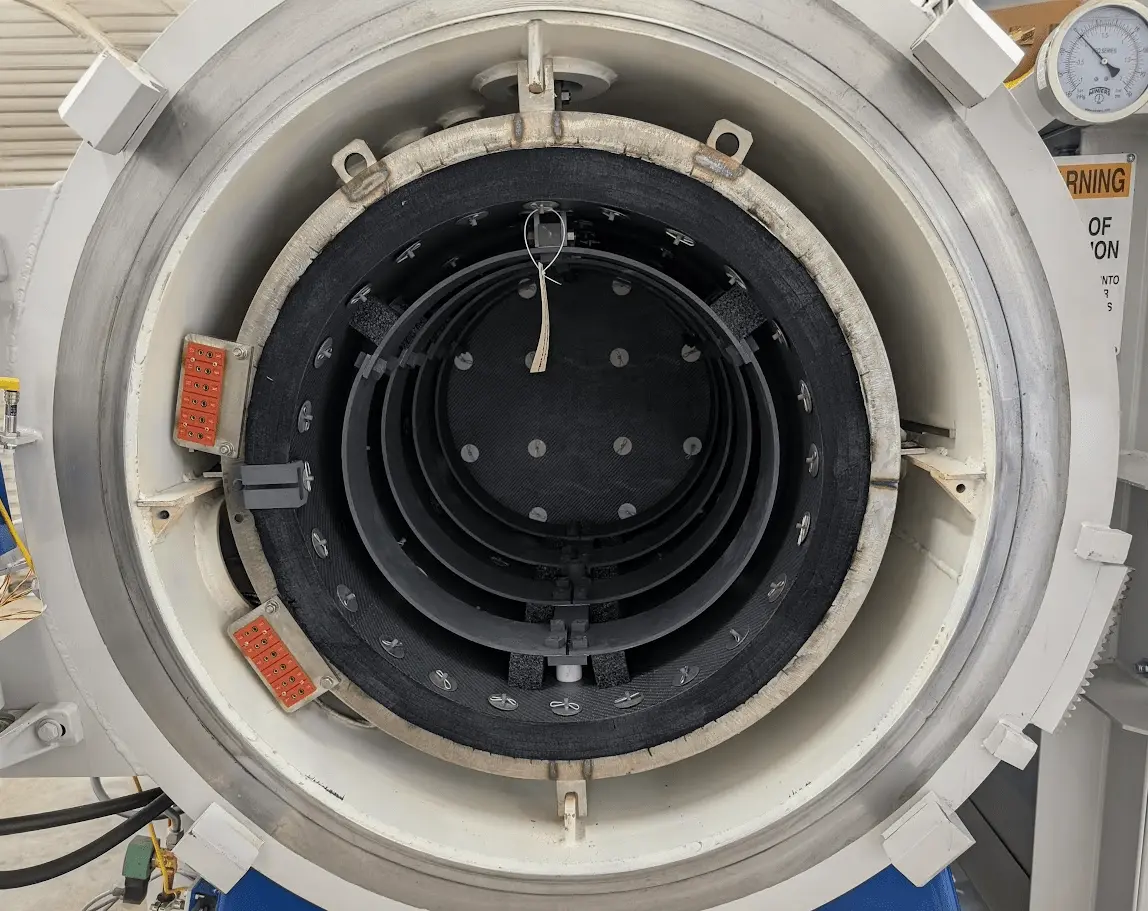

2" graphite felt and CFC hot face hot zone.
Expansion tank
Water Pump Station (No cooler included)
Port for Diffusion Pump (No Diffusion Pump)
Unused condition.
Includes spare parts and manuals.
Manufacturer: Ipsen
Model No.: DS 12x12x24 2 bar
Year: 2024
Capacity / Output:
12" Wide × 12" High × 24" Deep working dimensions
Maximum load: 400 pounds
Maximum Temperature: 2550°F
Vacuum System:
Leybold Trivac D65B mechanical pump
No diffusion pump
Ultimate vacuum: 20 microns
Cooling System:
2 bar argon quenching with 15 HP motor
Controls:
Ipsen Vacuprof control system
