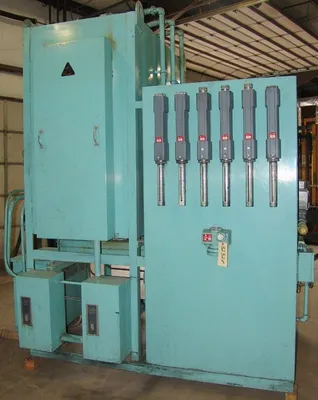

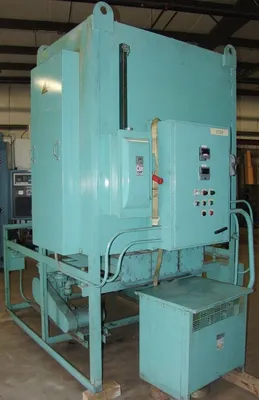

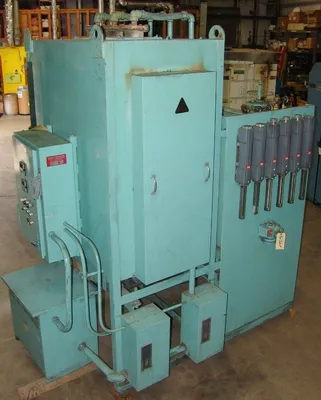

Gasbarre Endo Generator 3000 CFH

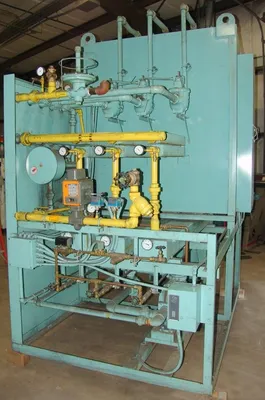

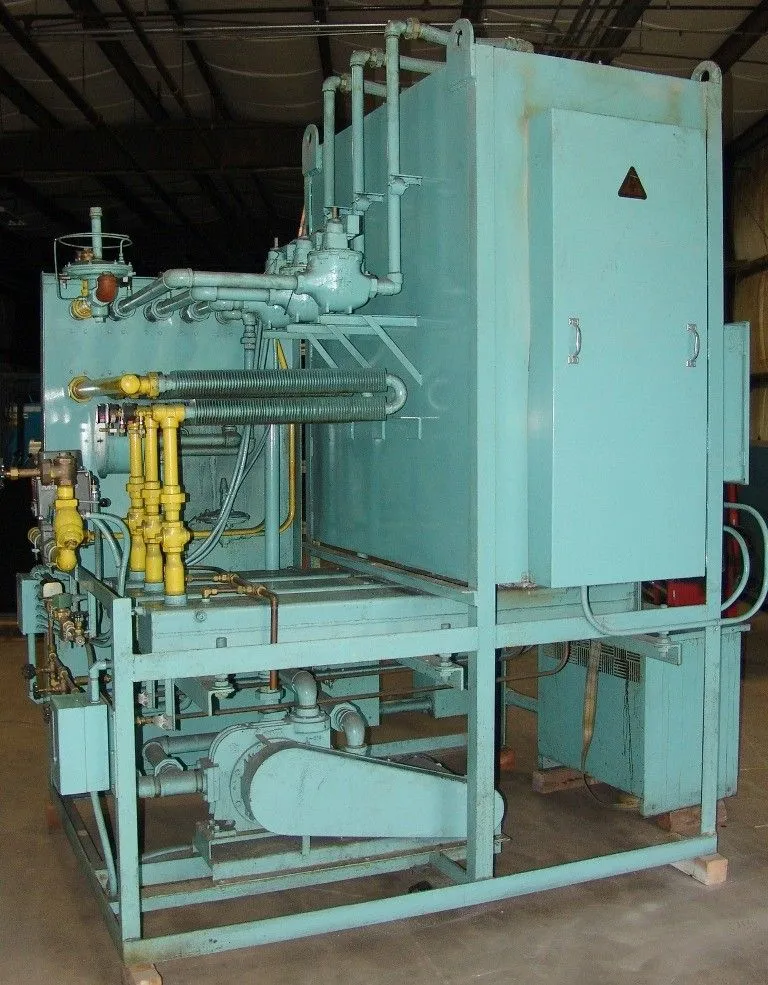

Electrically heated 3 retort generator. Refractory lined shell with vertically mounted retorts. Total of twelve (12) silicon carbide heating elements, 6 on each side are mounted through the chamber for good uniform heating of the alloy retorts. The natural gas and air pass through a Waukee “mixor” valve then into the Waukee gas pump. Mixed gas enters the 3 “mixed gas” flow meters, through the Selas fire checks and enters the top of the retorts. The gas travels through the catalyst filled heated retorts and exits at the bottom. The exiting Endothermic gas passes through water cooled chambers then finned cooled air heat exchangers then through the Endothermic flow meter. A pressure regulator is supplied on the exiting gas piping.
