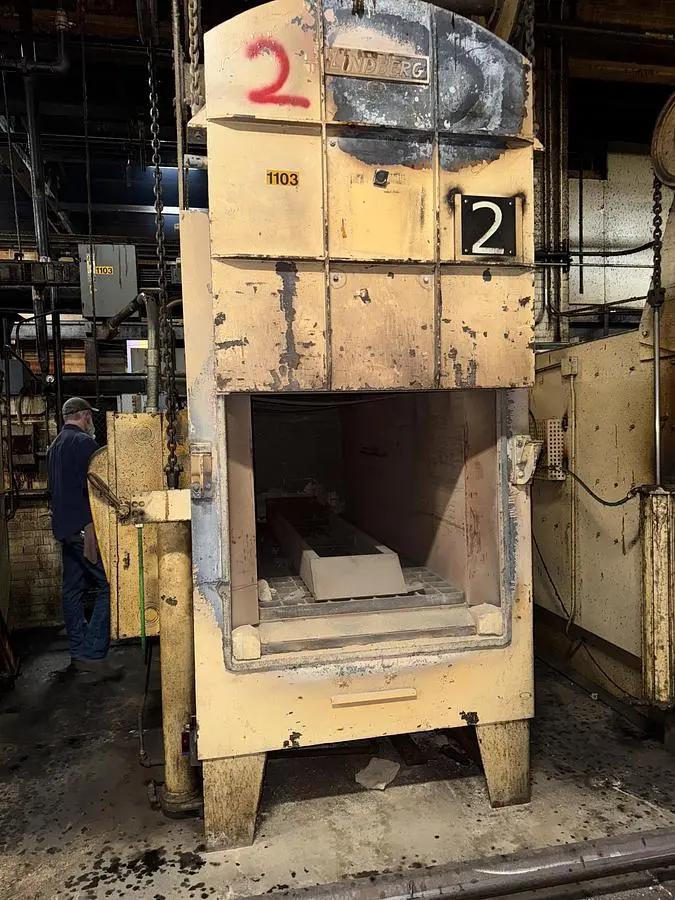

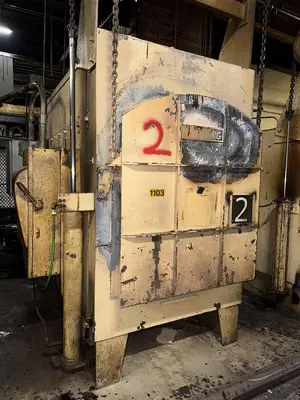

Recirculating Box Tempering Furnace 36″ X 36″ X 96″
Overview
Description
Recirculating Box Tempering Furnace, 36\" W × 36\" H × 96\" L. Lindberg electric recirculating box temper furnace designed for uniform heat treating applications up to 1250°F.
Specifications
Key Components & Features:
Top-mounted alloy recirculating fan.
Adjustable roof air louvers.

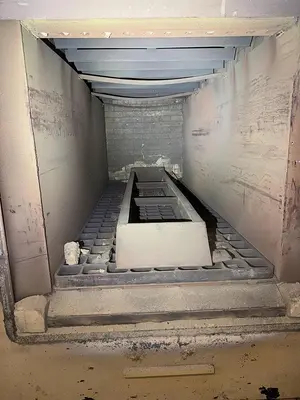

Alloy flat rail hearth.
Vertical rising pneumatic front door.
Side-mounted control panel with motor starters.

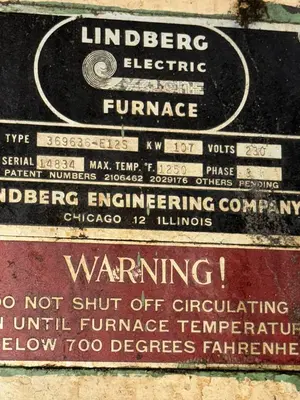

Manufacturer: Lindberg
Model No.: 369636-E12S
Serial No.: 14834
Fuel Type: Electric – 107 kW
Capacity / Output: 36" Wide × 36" High × 96" Long
Maximum Temperature: 1250°F
Control Panel: Side-Mounted Control Panel
Temperature Controls: Eurotherm Digital Temperature Control
Safety Controls: Partlow Digital High Limit
Power Requirements: 230 V / 3 Ph / 60 Hz
Overall Dimensions: 8' Wide × 10' Deep × 12' High
