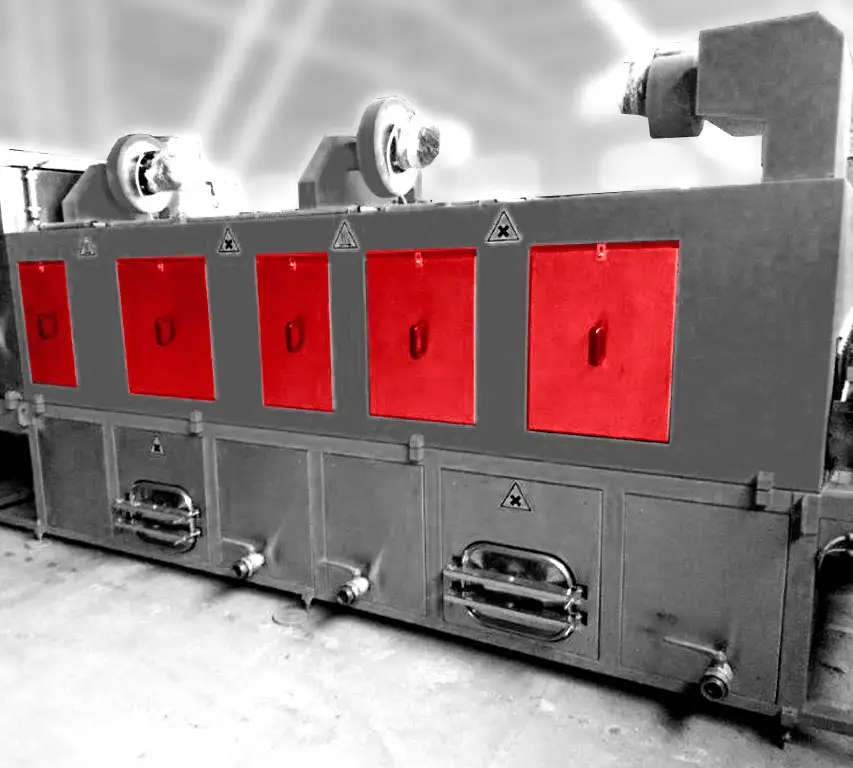

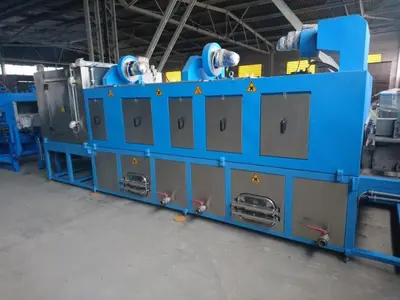

Industrial roller washing machine

Industrial roller washing machine designed for continuous operation with washing, rinsing, and drying stages. Unit is out of use with connection and testing possible. The machine has never operated; the customer canceled the contract. Dedicated to continuous processing of bearing rings, with possibility of adaptation to other production processes.

Key Components & Features:
Continuous-operation roller washing system.
Washing, rinsing, and drying stages.
Built for Fe pieces (rings).
Technical assessment, relocation, assembly, and adaptation to customer-specific equipment/processes available within the E.U.
Building materials: AISI 304 stainless steel for parts in contact with treatment phases; carbon steel for other parts.
Loading by customer with conveyor.
Unloading by customer with conveyor.
All treatment times, temperatures, and advancement speeds can be regulated.

Manufacturer: ILVET s.r.l.
Year: 2013
Location: Poland - SECO/WARWICK Warehouse

Capacity / Output:
Pieces to be treated: Fe pieces (rings)
Piece dimensions: min 180 mm, H = 10 mm; max 400 mm, H = 170 mm max
Production per hour: 750 kg
Passage opening: 1100 mm × 300 mm H
Nominal rotational speed of cylinder: step-by-step advancement, variable length, advancement speed 8 mt/1′

Fuel Type: Electric

Power Requirements:
Electric feeding: 400 V / 3 Ph + N / 50 Hz
Auxiliary circuits: 24 V DC
Thermal installed power: 153 kW
Electrical installed power: 7.1 kW

Utilities:
Necessary water: approx. 3800 liters

Process Data:
Pollutant: Oil
Spray washing: recycled with pump, 12 minutes at 80°C
Dripping: with blowing during passage, room temperature
Spray rinsing: recycled with pump, 12 minutes at 60°C
Dripping: with blowing during passage, room temperature
Drying: with recycled air, heated electrically, 12 minutes at 130°C

Overall Dimensions:
Volume dimensions: See Drawing C-1327L2
Weight: 4200 kg
