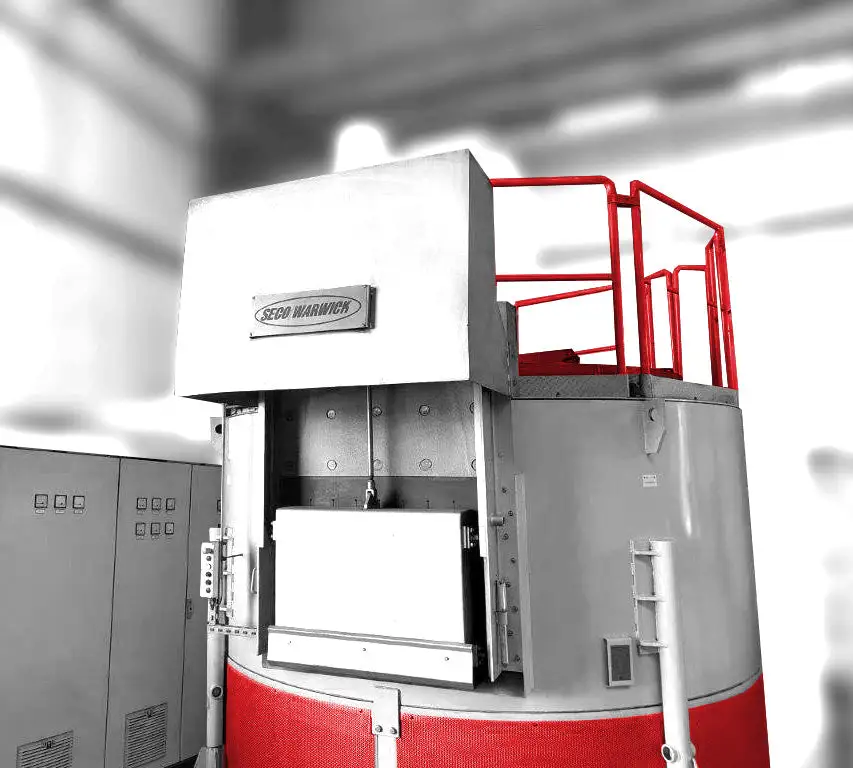

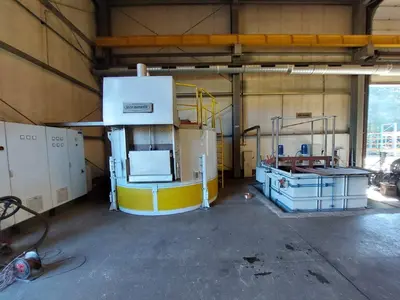

Electric furnace with a rotary hearth TYPE RHE-230/1000A with a water bath
Overview
SECO\/WARWICK RHE-230\/1000A Electric Furnace with Rotary Hearth and Water Bath. Designed for heat treatment of steel parts at temperatures up to 1000°C without a protective atmosphere. Unit was never used beyond initial startup and testing. Available for connection and on-site testing. Technical assessment, relocation, and installation within the E.U. are available.
Specs
Key Components & Features:
Rotary hearth furnace design.

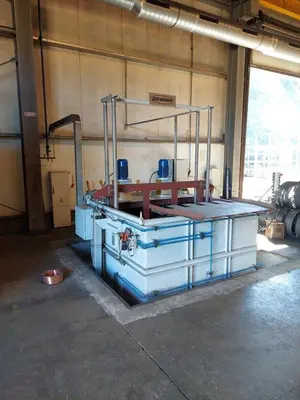

Integrated water bath.
Designed for heat treatment of steel parts without protective atmosphere.
Pneumatic door drive.
PLC-controlled system with operator interface.
Manufacturer: SECO/WARWICK
Model No.: RHE-230/1000A
Year: 2014
Location: Southern Poland
Fuel Type: Electric
Capacity / Output:
Net load capacity: 400 kg
Loading area dimensions: 700 mm H × 450 mm W
Furnace working level: 1020 mm
Loading/unloading opening: 700 mm W × 450 mm H
Maximum Temperature: 1000°C
Power Requirements:
Nominal voltage: 3 × 400/230 V
Frequency: 50 Hz
Full load current: 1050 A
Heating element power rating: 166 kW
Hearth drive gear motor: 0.25 kW
Controls:
Digital temperature controller with safety features
PLC logic controller: Siemens S-7
Operator panel: Pro-Face 10.4”
Utilities:
Cooling water consumption: ~3 m³/h at 0.2–0.5 MPa
Performance:
External wall temperature: ≤ 80°C
Overall Dimensions:
Approx. 3700 mm W × 4200 mm L × 3260 mm H
Weight:
Approx. 9,000 kg (without load)
