Pit Temper, 28" Dia. x 28" Dp, Gas Fired, 1250°F
Overview
Description

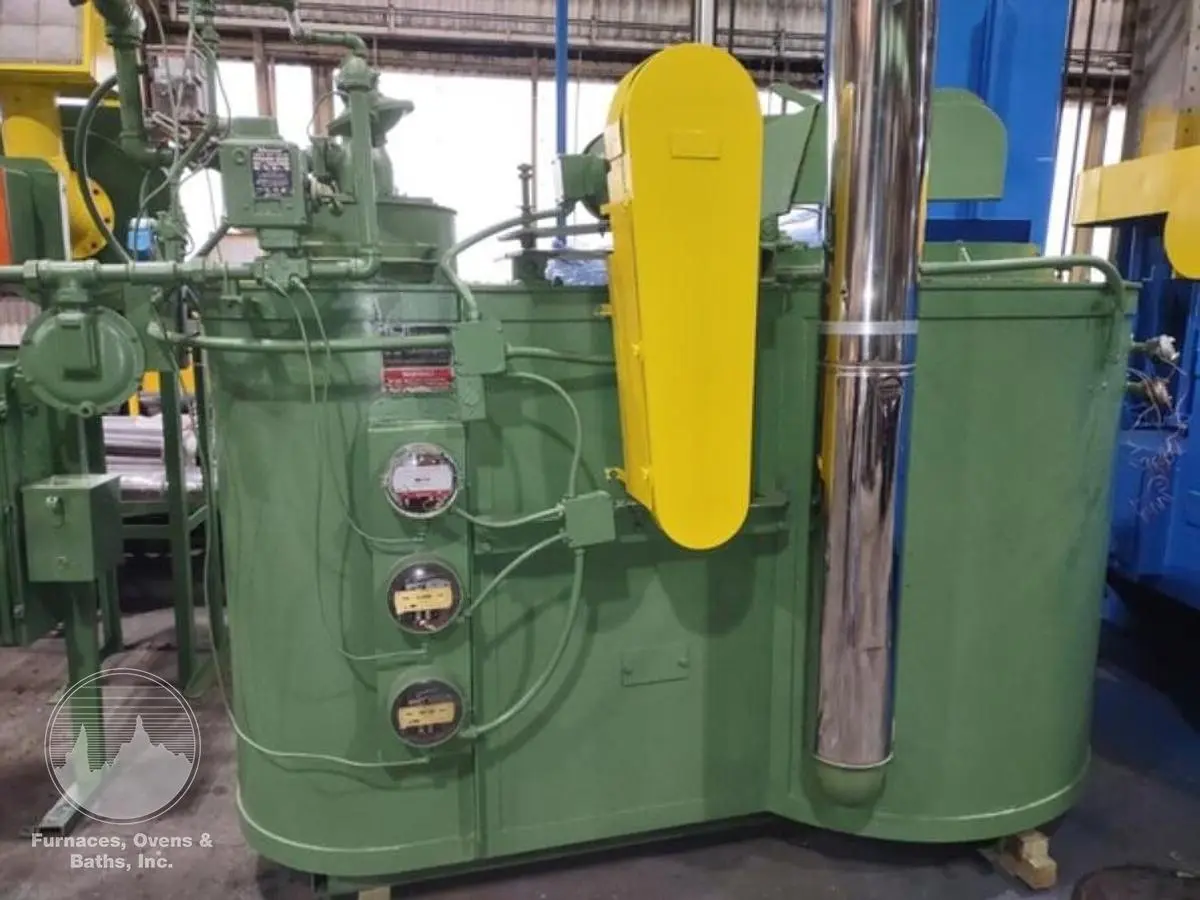

Standard Lindberg gas fired pit tempering furnace, Model 2828-G12 Pit Temper, complete with manual swing type cover and Eclipse combustion system. Controls are mounted and wired in a free-standing panel. Actual ID is reported as 33\" diameter × 39\" deep.
Specifications
Key Components & Features:
Manual swing type cover.
Eclipse combustion system.
Free-standing control panel.

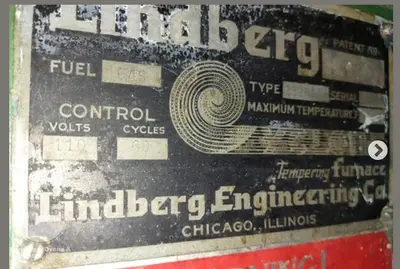

Manufacturer: Lindberg
Model No.: 2828-G12 Pit Temper
Serial No.: 9832
Fuel Type: Natural Gas
Capacity / Output:
Work area: 28" diameter × 28" deep

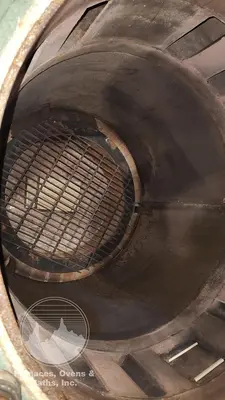

Actual ID: 33" diameter × 39" deep
Maximum Temperature: 1250°F
Control Panel: Free-Standing Panel
Controls:
Honeywell UDC digital temperature controller
High limit
Instrumentation:
Honeywell digital paperless (EzTrend) recorder
Power Requirements: 480/3/60
Overall Dimensions:
Furnace: 8'6" long × 72" wide × 84" high to top of door lift mechanism
Load height: 58" floor to top of furnace opening
Blower frame: 42" × 24" × 104" high
Control panel: 36" × 14" × 74" high
