For super-sensitive, double-acting ram control and simple operation..
Features
Electric operation provides smooth, consistent pressing action.
(Currently wire 220v 3 phase)
Variable ram speed allows fingertip control of ram movement for
precise pressure control.
H-frame mounted control allows convenient control of press when
workhead is out of operator's reach.
Adjustable table permits easy vertical movement by means of
self-locking hoist.
Double-acting cylinder permits pulling as well as pressing ram
action.
Safety valve protects against overloads.
T-ring seals prevent pressure loss.
Optional bolt flange for tooling attachment may be substituted for
flat ram nose.
Standard Equipment
Frame
Flat ram nose
Pump
Safety Relief Valve
Double-acting workhead
Pressure gauge
Models / Specifications
Model
8-050
Number
908050
Capacity (tons)
50
Horsepower
2
RPM
1800
Ram speed-press (ipm)
8"
Ram speed-return (ipm)
22"
Width between uprights
323/4"
Width between table channels
71/4"
Minimum ram to table
101/8"
Maximum ram to table
451/8"
Ram travel
10"
Price: $4,750.

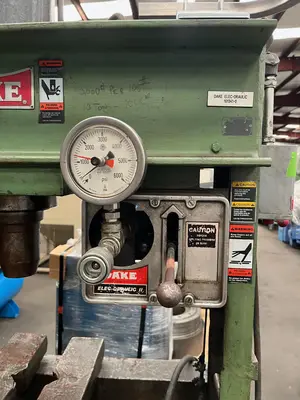

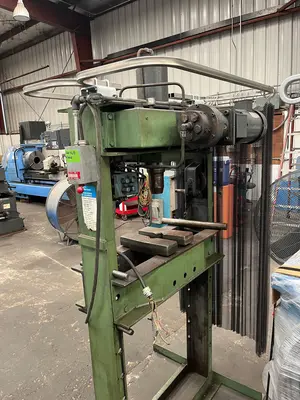

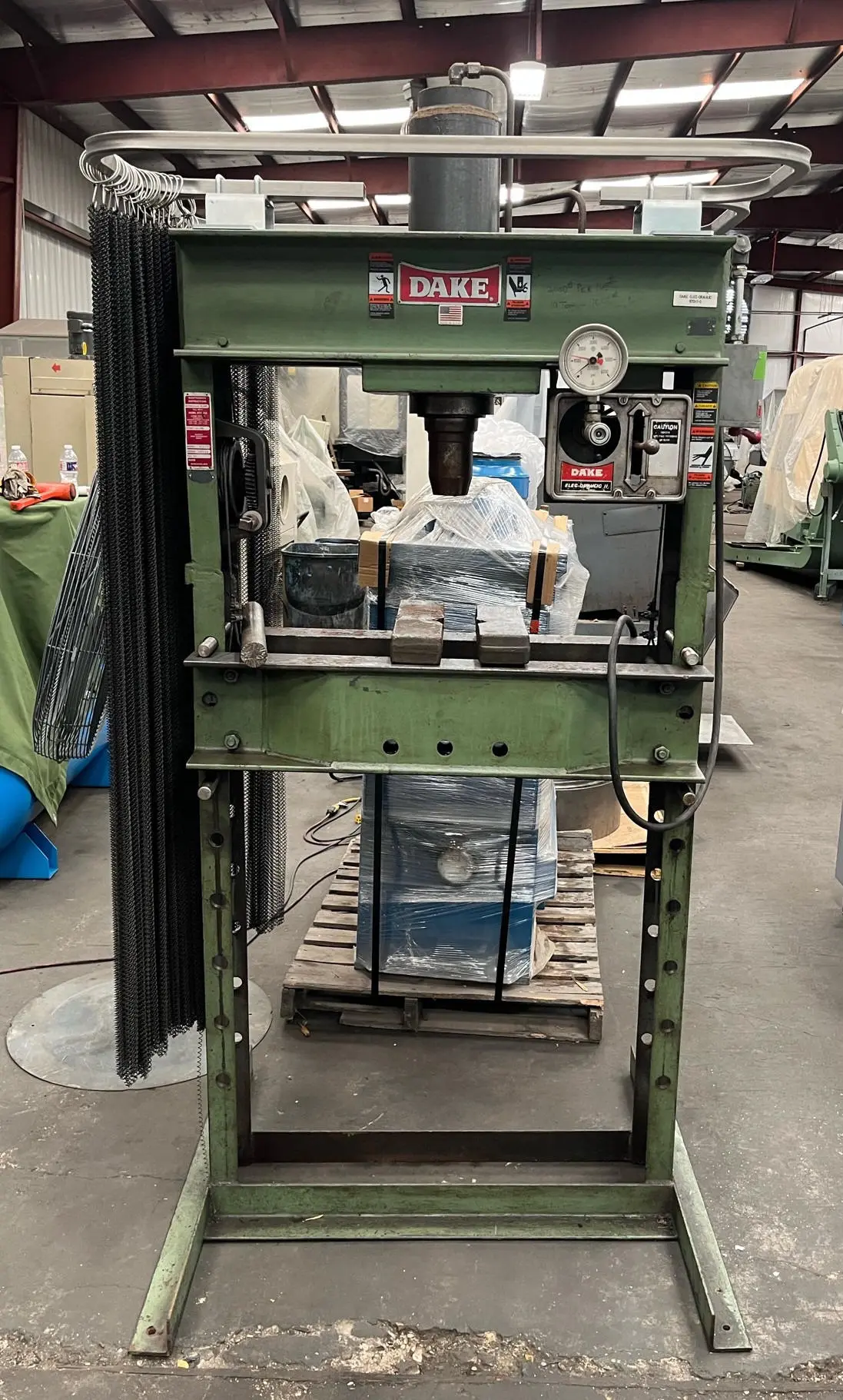

Dake 50 Ton Elec-Draulic H Frame
Press
