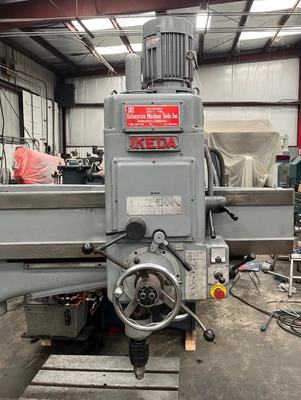

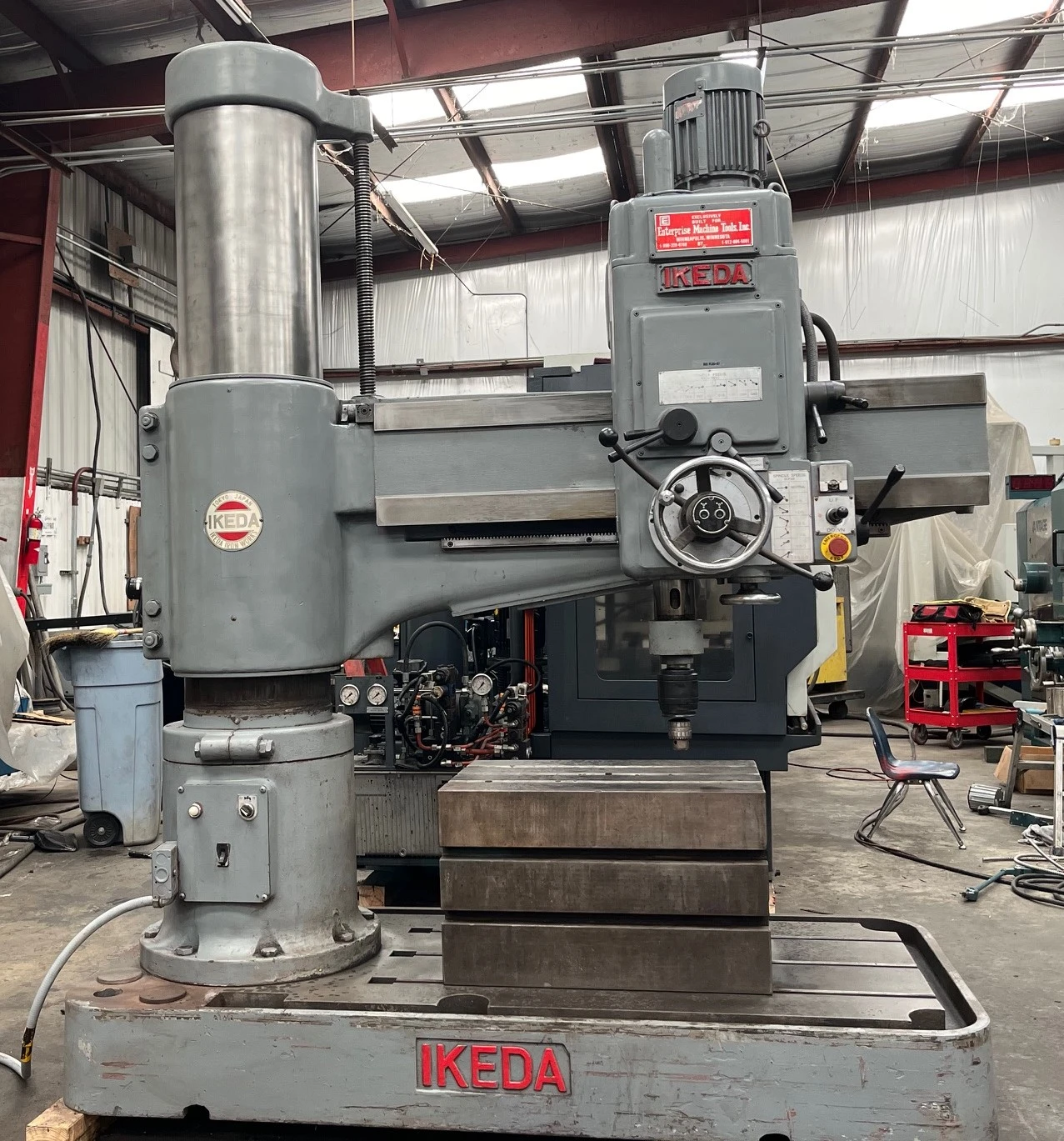

IKEDA 4’ RADIAL ARM DRILL

Model

RM-1175
Manufacture Date

1981
Serial Number

81139
Column To Spindle Base (Min/Max) 12.5″ / 54.5″

Column Diameter

12″

Arm Length

4′

Spindle Stroke

14.5″

Quill Diameter

3-5/8 In

Spindle Speeds

(12) 45 – 1,500 Rpm

Spindle Taper

Morse No. 4

Spindle Feeds

(9) 0.003″ – 0.40″

Motor

7.5 Hp

Electrics

220/440v; 3 Ph

Machine Weight

7,000 Lbs. approx


Power
Elevation

Yes
Arm Clamp

Power



Price: $8,500

FOB
Houston, TX.

Ikeda RM 1175 radial arm drill
