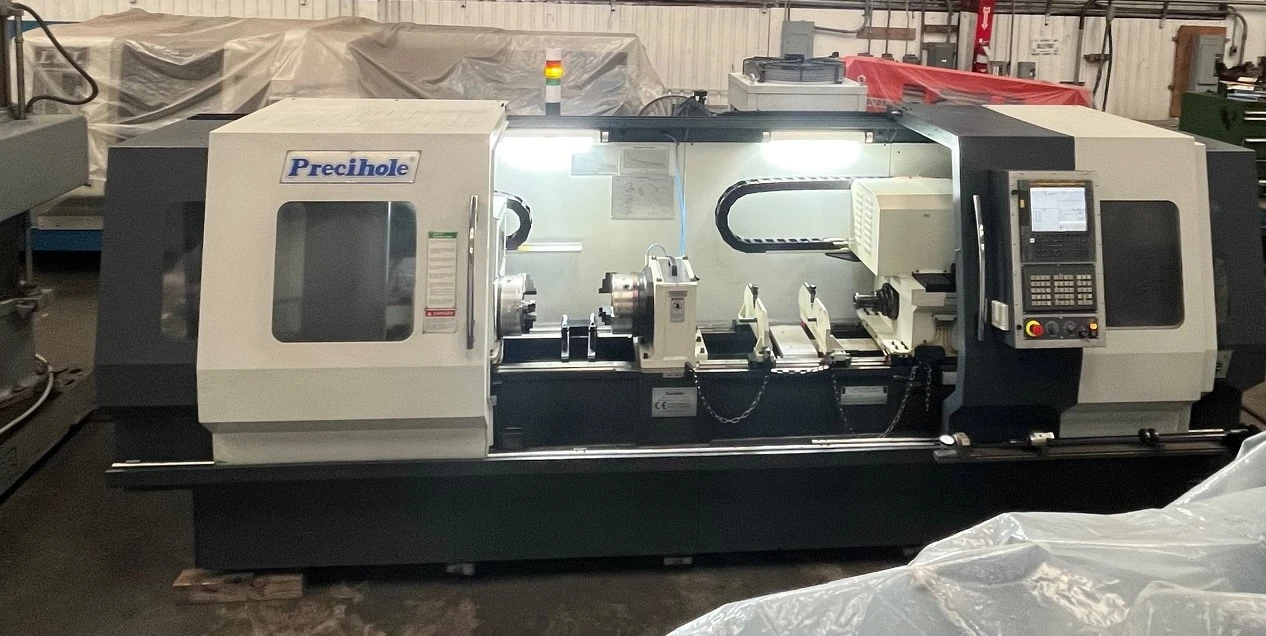

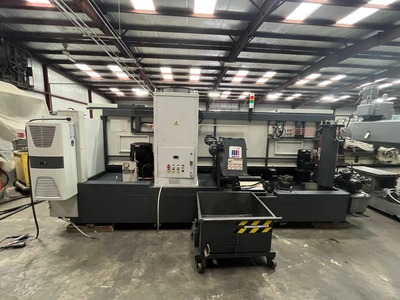

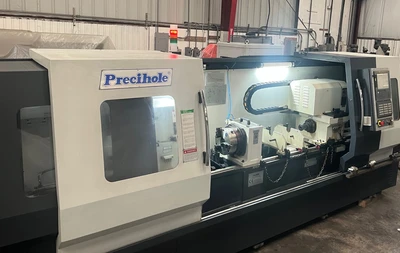

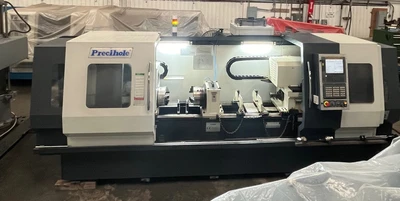

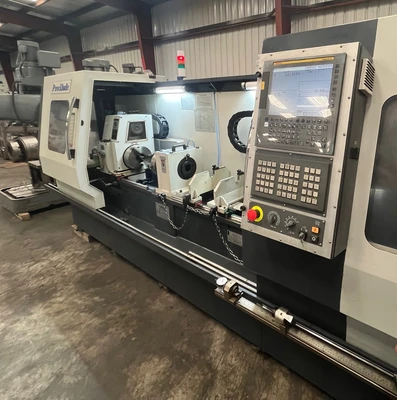

PRECIHOLE CNC SINGLE SPINDLE GUN DRILL

Control                                              Fanuc Oi-TF

Model                                               GVN 25 C/1-600

Drilling diameter range                    0.315—1”

Number of spindles
1

Spindle speeds
600-3,300 rpm.

Power per spindle
10 hp.

Maximum drilling length
40”

Part OD range
0.75—3”

Part clamping system
Hydraulic cone clamping/


Chuck clamping

Maximum component weight
88 lbs.

Rapid traverse rate
315” per minute

Drill feed range
0—8” per minute

Coolant tank capacity
277 gallons

Maximum coolant pressure
870 psi.

Weight
12,500 lbs.

Dimensions
16’ 4” W x 8’ L x 7’ H

  (chip conveyor can be removed saving 1’ in width)

Chip hopper
3’ W x 3’ L x 2’ H

Box of tooling
24” W x 12” L x 40” H

Precihole
 gun drilling
machines offer the best combination of output parameters

like hole straightness, surface finish and bore tolerance.

Machine Features:

Part counter rotation for superior
hole straightness

Quick clamping arrangement for
ease of loading and unloading parts

Use of ball screw and servo drives
for linear motion

Multiple tool steadies to provide
solid tube support

Rotating cone or self-centering
chuck arrangement for part clamping

High pressure coolant and fine
filtration system

Oil chilling and automatic
lubrication

YouTube:
https://youtube.com/shorts/HCmIeM1iSsk?si=m3bzLLaKnnJ4KDZi

Price:  $ 99,500.00 Houston, TX. Subject to Prior Sale.
