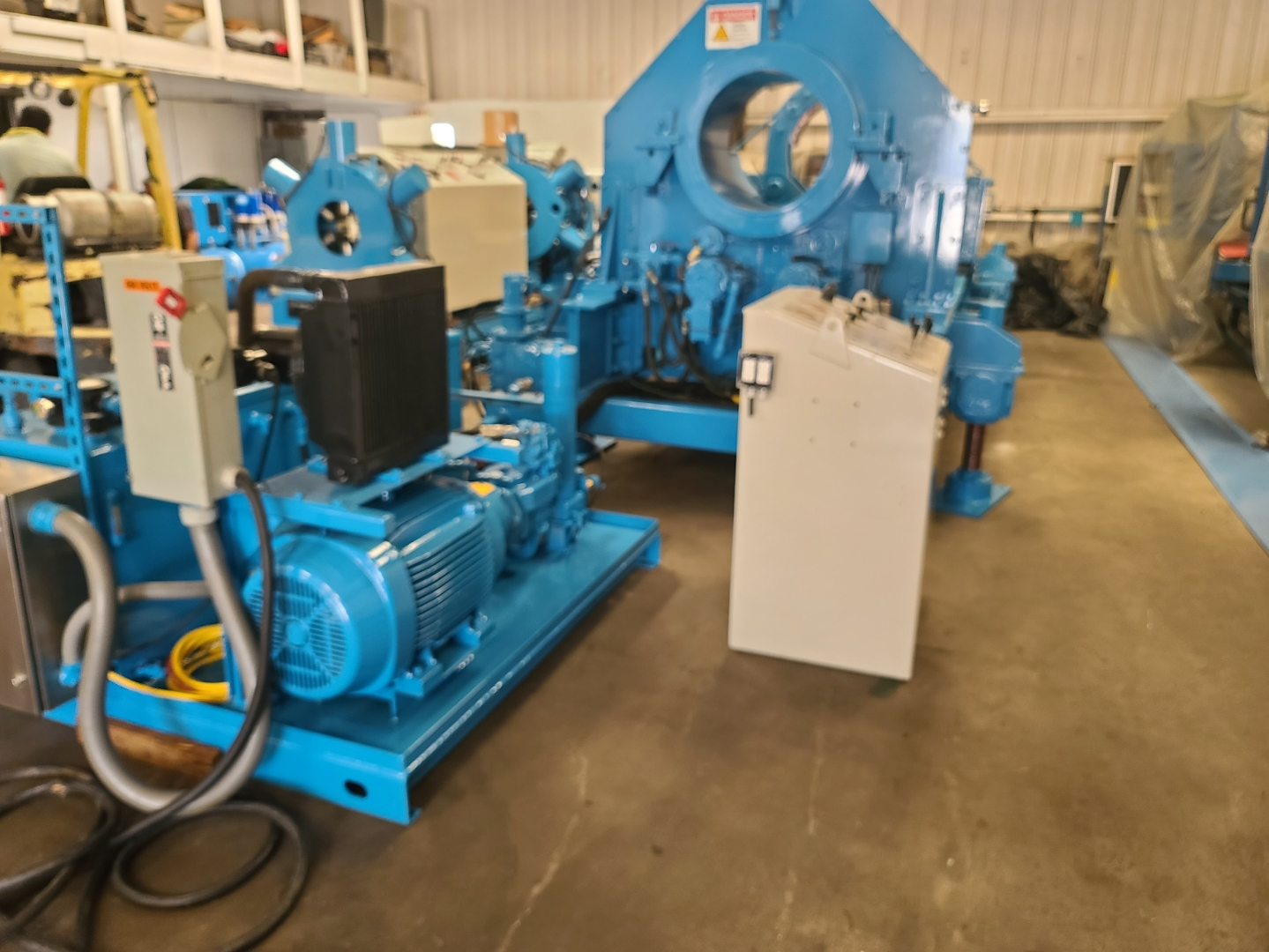

McCOY CLINCHER BUCKING UNIT GRIFFITH

Model
CLEBU 2400-30, 24” Clincher


Type III with Lockjaw backup

Backup torque gage handle
41”

Minimum tubular OD
2 3/8”

Maximum tubular OD
24”

Torque rating
100,000 psi.

Drive type
Hydraulic

Number of drive speeds
Two

Max. hydraulic operating pressure  3,000 psi.

Max. clamping pressure
4,500 psi.

Hydraulic unit:

Model
PU7560

Main motor
75 hp.

Hydraulic operating pressure
3,000 psi. / 60 gpm

Dimensions:


Main body
17 6” L x 9’ W x 9’ H

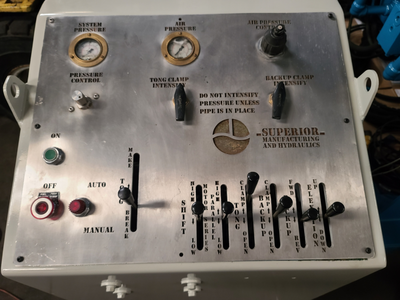

Control console
3’ W x 2’ L x 4’ H

  Hydraulic unit
7’ W x 5’ L x 5’ H

Weight
25,000 lbs. Appx.

Price: $ 325,000. FOB Houston, TX.

Subject to Prior Sale.

Comments:  The unit is in very good condition.  Drillco
paid $ 649,000 ten years ago when they

Bought the unit new.  Three years ago Drillco shut down the
Homa, Louisiana offshore repair

During the Covid craziness.  Before decommissioning the unit
went thru a complete Preventative

Maintenance check.
