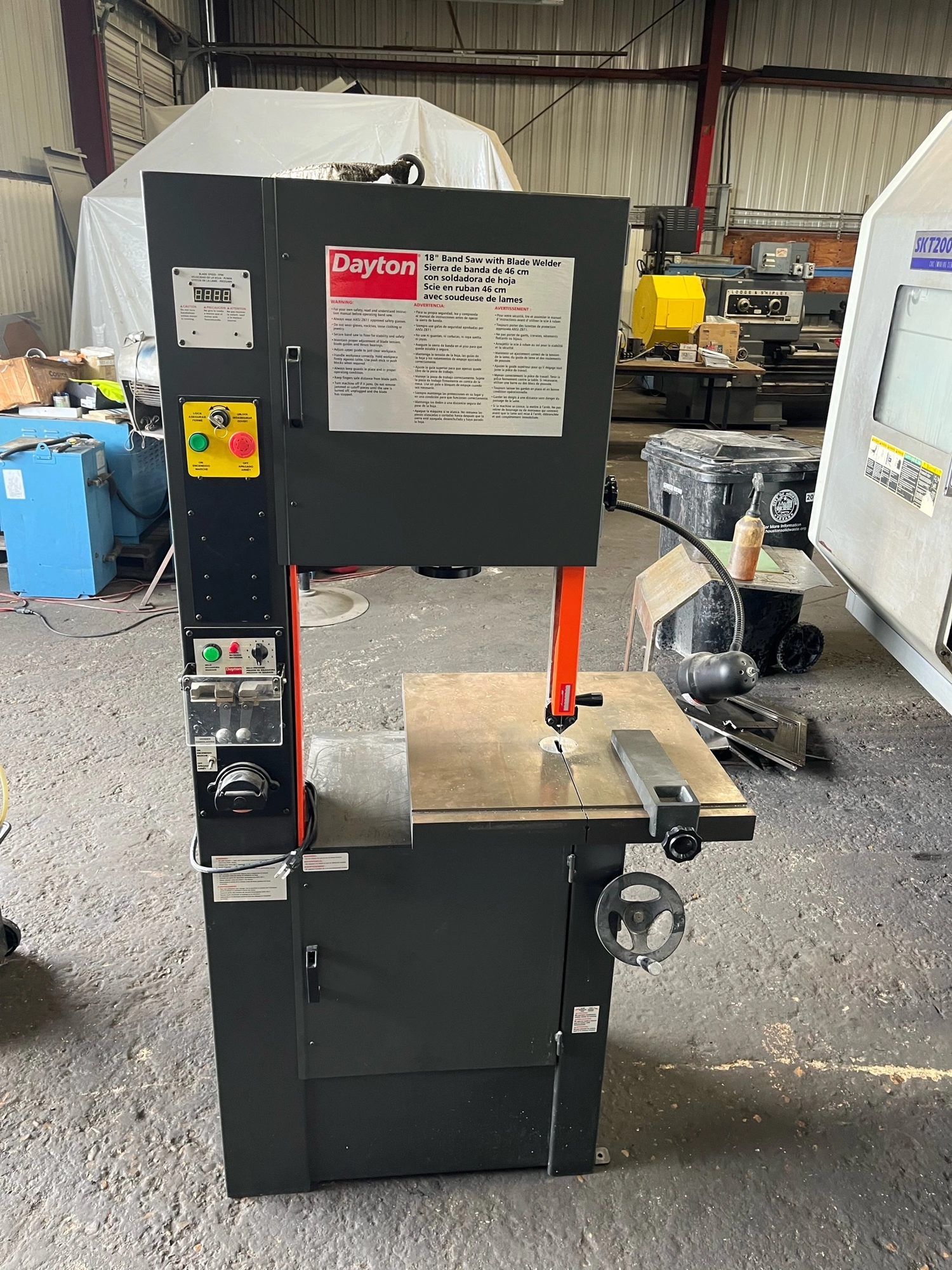

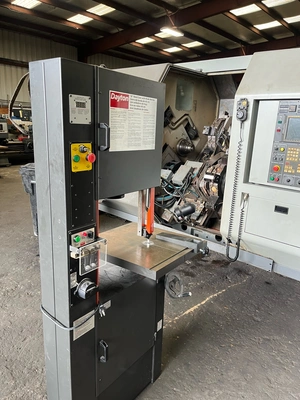

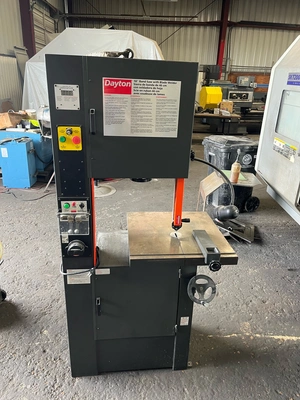

DAYTON Vertical Band Saw

Model

4TK02A

Operation

Manual

Rectangular Cutting Capacity -
Horizontal10-3/4 in x 18 in

Throat Depth - Vertical

18 in

Round Cutting Capacity - Horizontal10-3/4 in

SFPM Range

82 to 385

Miter Angle Range

0°

Number of Speed Settings

Continuous

Material Application

Metal; Wood

Max. Blade Width

5/8 in

Min. Blade Width

1/8 in

Cutting Capacity Square

10.75 in

Blade Thickness

0.035 in

Blade Wheels Dia.

18 in

Max. Blade Length

141 in

Min. Blade Length

138 in

Table Dimensions

21-1/2 in x 23-1/2 in

HP

1.5 hp

Voltage


115/230V ACPhase1

Amps AC

18.0/9.0 A 60 Hz

Overall Depth

30 in

Overall Height

75 in

Overall Width

37 in

Price:    $6,500

Features

Includes Built-In Chip Chute; Cast Iron
Pulleys; Chip Blower; Eye Bolt; Industrial Rated Heavy Duty Speed
Reducer; NEMA Frame Motor with Power Cord; Push Button Magnetic
Power Switch; Rip Fence; Rubberized Cast Iron Wheels; Wheel Cleaning
BrushHeavy Gauge Steel Construction;Cast Iron Wheels; Industrial
Rated Heavy Duty Speed Reducer; Pulleys; Table and LED Blade Speed
IndicatorCurrent18.0/9.0 AUNSPSC27112709 Country of OriginTaiwan
(subject to change)
