STAMA FIVE AXIS VERTICAL MACHINING CENTER

Model                                      MC 533
(Made in
Germany)

CNC control

Siemens 840D

Highlights:

Travels, X-Y-Z

640-400-400mm

Tilting and Swivel bridge 5 axis simultaneously
, 90 rpm max

Table Load Capacity
1,100 lbs

Spindle Motor

25HP

Spindle Speed

12,000 rpm

Spindle taper

A-63 (HSK A63 tooling)

Coolant thru the spindle

High Pressure Coolant Package (70 bar)

Tool stations

72

Measuring system

Siemens absolute 0.001

Machine weight

35,860 lbs.

Extras:

Direct measuring system of X-axis

Direct measuring system of Y-axis

Coolant filtration paper/system

High pressure coolant package

Measuring device TS27R

Probe unit preparation

Master cube including mounting elements

Transfer of standard voltage

Deviation of power frequency

Remote diagnosis via Internet

Price:
$ 249,500. FOB Houston, TX.
Subject to Prior Sale.

Comments:  The machine was purchased out of storage in San
Antonio.  It was originally

used for the production of sophisticated aviation parts.  It is
in very good condition with

extremely low hours.

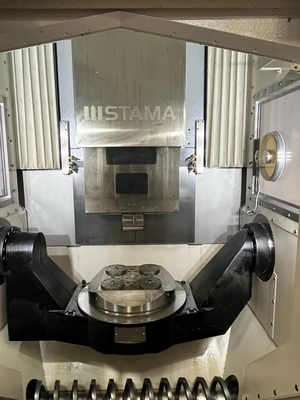

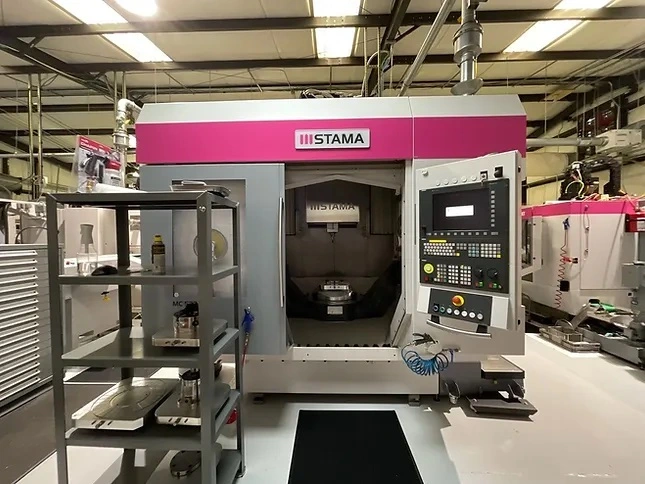

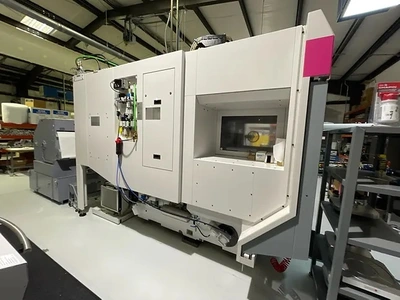

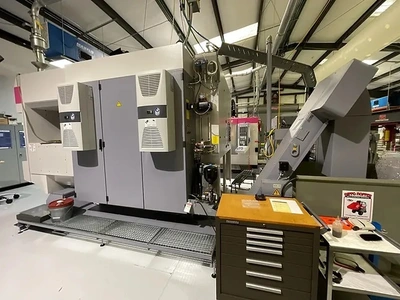

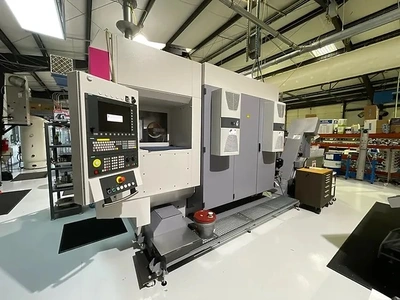

STAMA MC533 FIVE AXIS VERTICAL MACHINING CENTER

(pictures were taken before the machine was put in storage)
