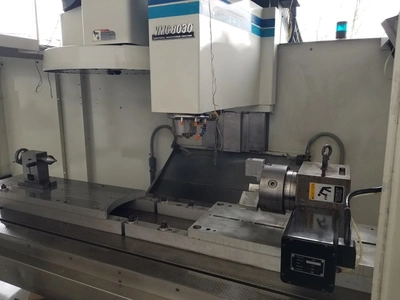

FADAL 8030 VERTICAL MACHINING CENTER

Model
907-1 VMC

Serial
number
9703449

CNC
control

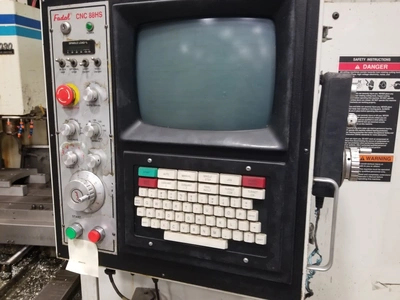

Fadal CNC 88HS

Year of
manufacture
1997

Travels; X-Y-Z
80” x 32” x 30”

Rapids:
X-Y-Z
787” x 787” x 590”

Spindle
travel
5”—35”

Table
dimensions
81.5” x 30”

Main
motor
15/22.5 hp.

Spindle
speed
8,000 rpm. ?

Taper
Cat 40

Tool
capacity
30 stations

Tool
selection
Random

Max
tool weight
15 lbs.

Table
load capacity
4,840 lbs.

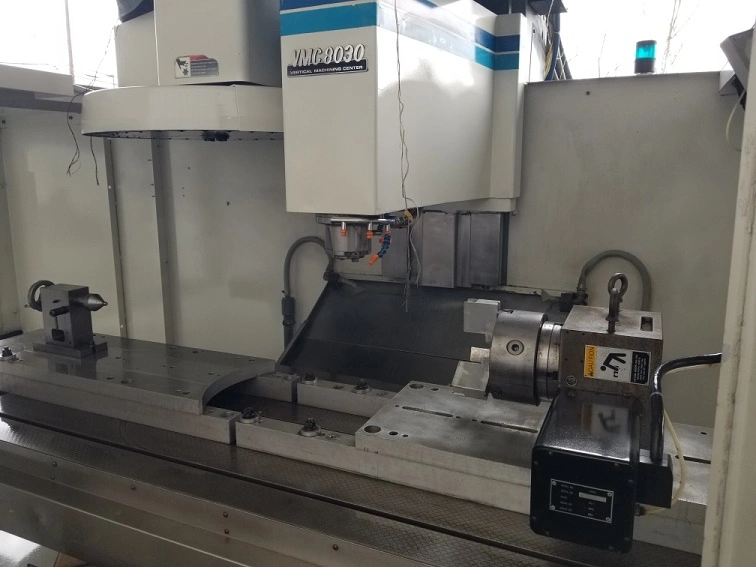

Rotary
table
Yes, VH-65, 8” rotary

Dimensions
218 x 118” x 132”

Machine
weight
30,000 lbs. apx.

Voltage
230/460/3/60

Amp
draw
45/22.5

Standard Features:  Box way construction, Spindle oil cooler,
Work lamps, Fully enclosed,

Spindle
air blast, Automatic PDI lubrications system, Operation lamp, Rigid
tapping, Chip

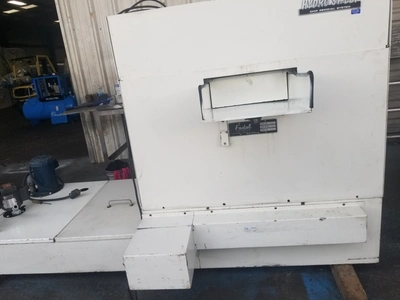

conveyor, High torque, Chip wash down system, Remote MPG.

Price:
$ 42,500. FOB Houston, TX.  Subject to Prior Sale.
