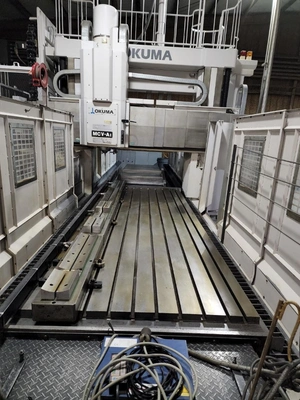

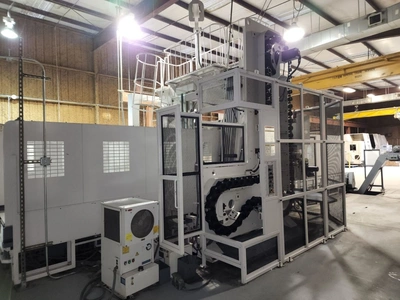

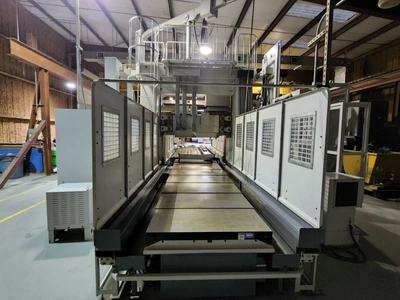

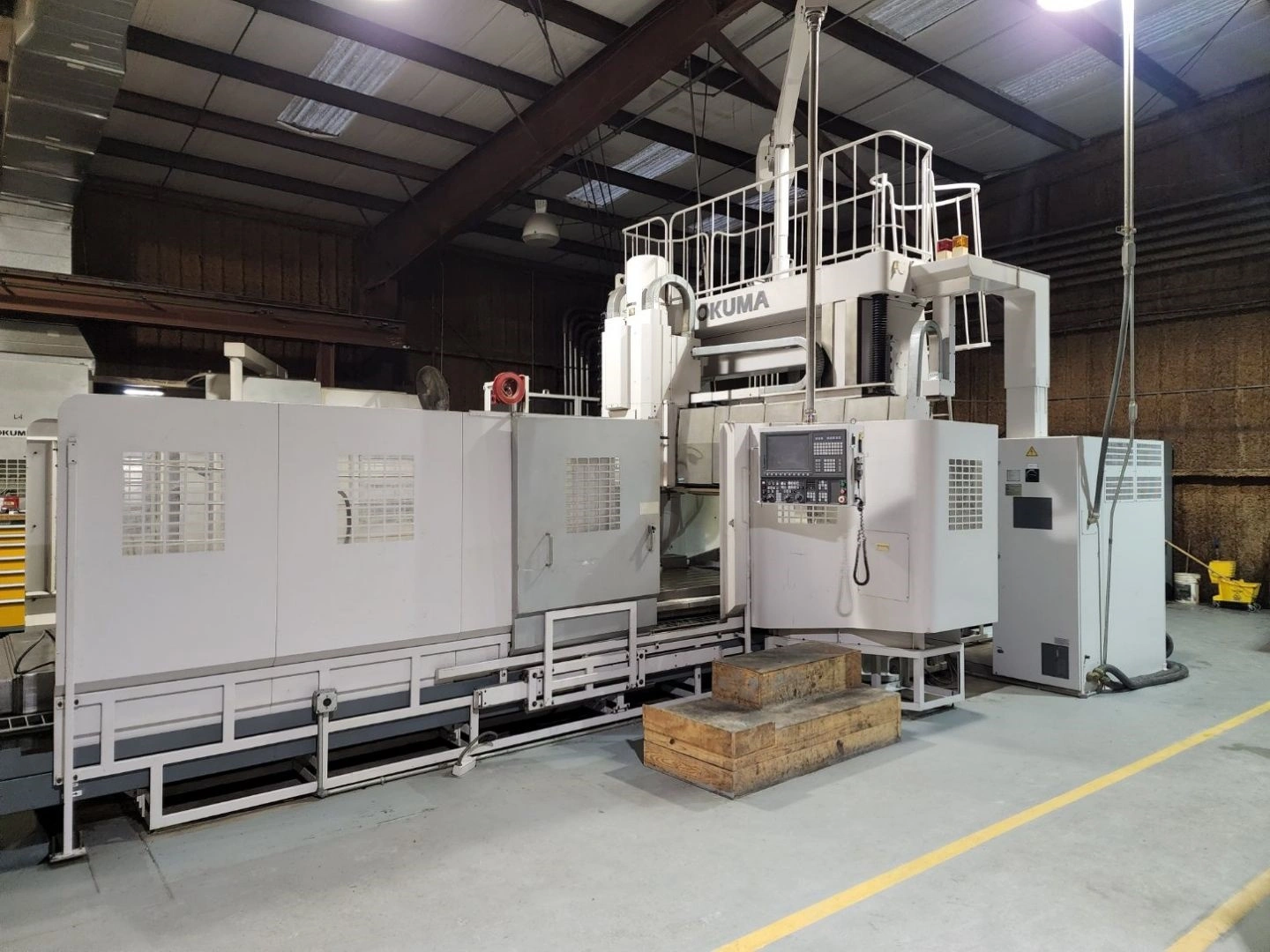

OKUMA MCV-A2 BRIDGE TYPE MACHINING CENTER

Model                                                           MCV-A2

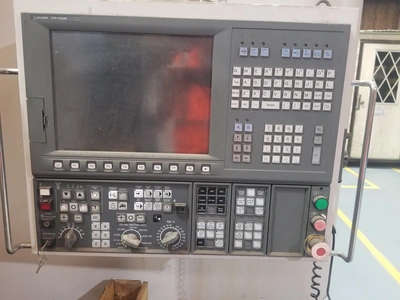

CNC control
OSP P200M

Year of manufacture
2007

Width between columns
80”

Travel, X-axis, table
157

Travel, Y-axis, spindle head
78”

Travel, Z-axis, spindle quill
18”

Dist. from spindle to table, Min-Max
0”—59”

Size of table, width x length
60” x 162”

Cutting federate
0.04” to 393” ipm.

Rapid traverse rate
787” ipm.

Spindle diameter
3.94”

Spindle taper
BT 50

Spindle speed range
30 to 4,000 rpm.

Quill diameter
8.27”

Tool stations
72

Tool taper
BT-50

Main motor hp.
25/30 hp. 30 minute

Manuals
Yes, complete set

Tooling
Minimal (may be more)

Machine height
17” (6’ will come off when pendant is removed)

Floor space
40’ Wide x 18’ Long

Machine weight
86,900 lbs.

Price:
$ 425,000.
AS IS
WHERE IS AS INSPECTED.

New cost today:  About $ 1 Mil. Delivery: 12-18 months.

Comments: The machine is under power and in GOOD TO VERY GOOD
CONDITION.  It was purchased

to manufacture whip stock, which is an angular down hole tool that
used to be used for offset drilling.

Mud motors, directional drilling and MWD (Measure while drilling)
made whipstock obsolete.  It has been

kept under power in an air conditioned and heated building.

Ten years ago, new owners purchased the facility.
The machine has not been used since the

new owners purchased the facility.

Last year Okuma come in and powered up the machine.  The

batteries were dead. They were replaced, parameters reinstalled and
the machine cycled.

OKUMA BRIDGE TYPE MACHINING CENTER MCA V2
