Model
DNM 4500
Serial Number
MV0090-003665
Year
09/2022
CNC
control

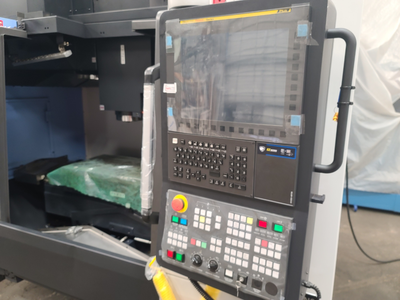

Fanuc Oi-Plus
Travels; X-Y-Z
31.5”x17.7”x20”
Max
table load
1320 lbs.
Spindle taper
CAT 40
Max
spindle speed
8,000 rpm.
AC
spindle motor 15/20
hp.
Tool
stations
30 stations
Table
loading area
40” x 18”
Rigid
tapping
Yes
Thru
spindle coolant
Yes, 215 psi.
Thru
spindle air
Yes
Oil
jacket spindle chiller
Yes
Portable pulse generator
Yes
Flood
coolant system
Yes, for chip disposal
Coolant tank
52 gallons
Voltage
220/3/60
77.5 amps
Weight
11,000 lbs.
Price:
$ 79,500 FOB Houston, TX.
Condition: New, never used.
Warranty: Fanuc warranty on the CNC control as long as voltage is in
the 205-235 range.
Availability: Stock, Subject to Prior Sale
Note:
We are not a DN Solutions (Daewoo) dealer. We purchased this
machine from an
insurance company as it had tipped over in it’s container when being
unloaded in San
Diego,
CA from Korea sustaining sheet metal damage which we have repaired.

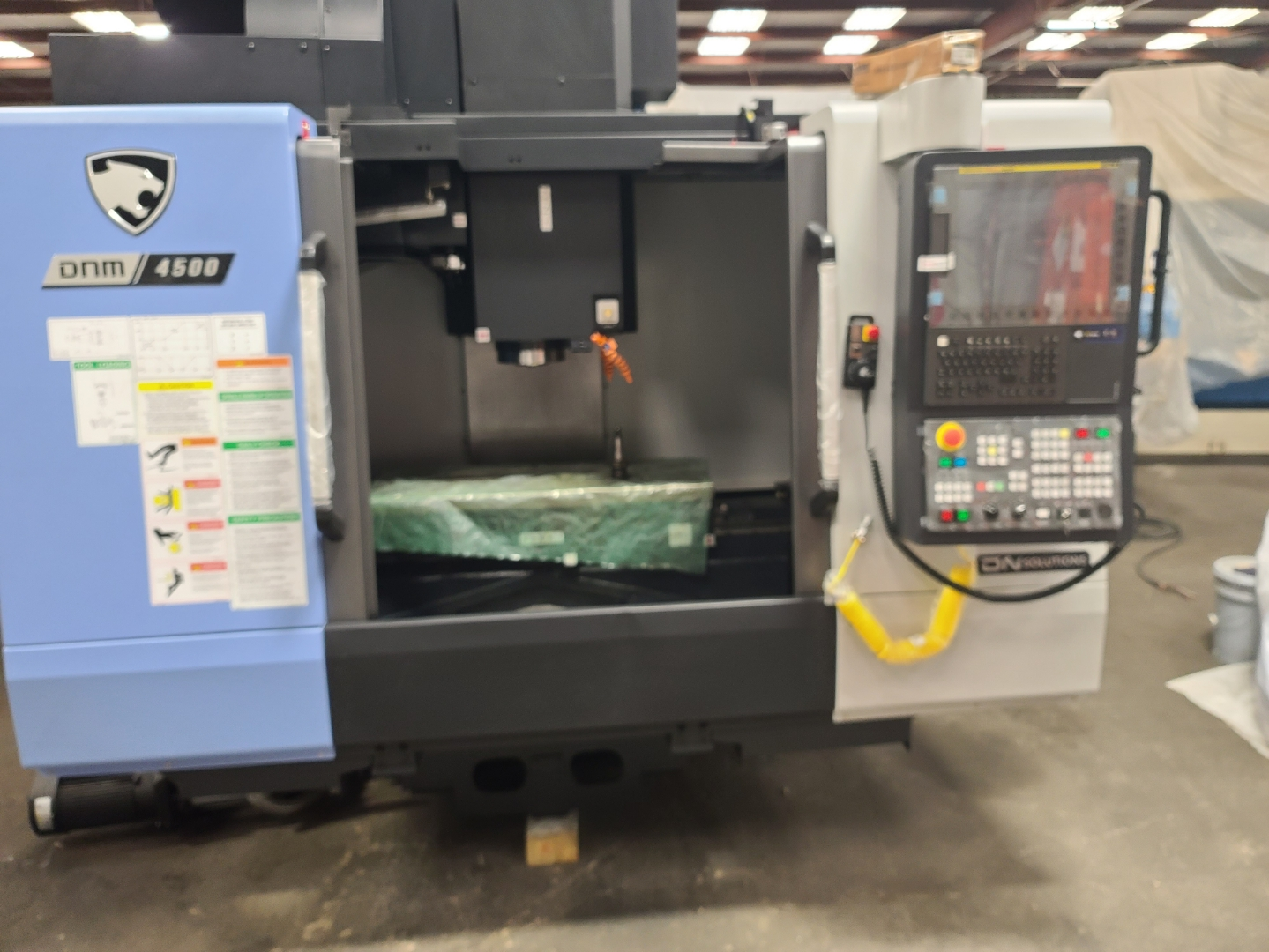

DN SOLUTIONS VERTICAL MACHINING CENTER
