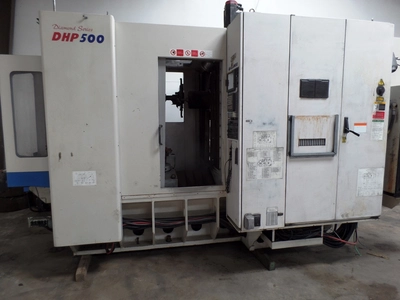

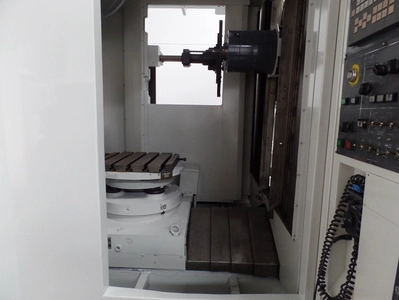

DOOSAN DHP-500 (Diamond Series) HORIZONTAL MACHINING CENTER

Model
DHP-500

Serial number                                                   HP500036

Year of manufacture                                        2001

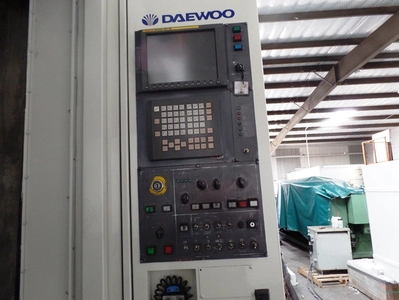

CNC control
Fanuc  16iM,

Main motor/15 min.                                         40/33 hp.

Spindle speed
600-12,000 rpm

Tool shank                                                      Cat 50

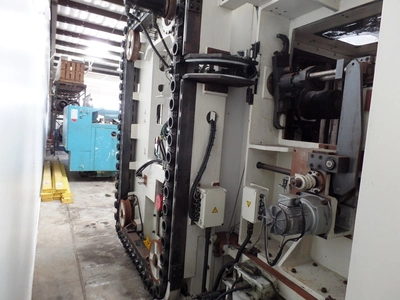

Tool stations                                                   60 stations

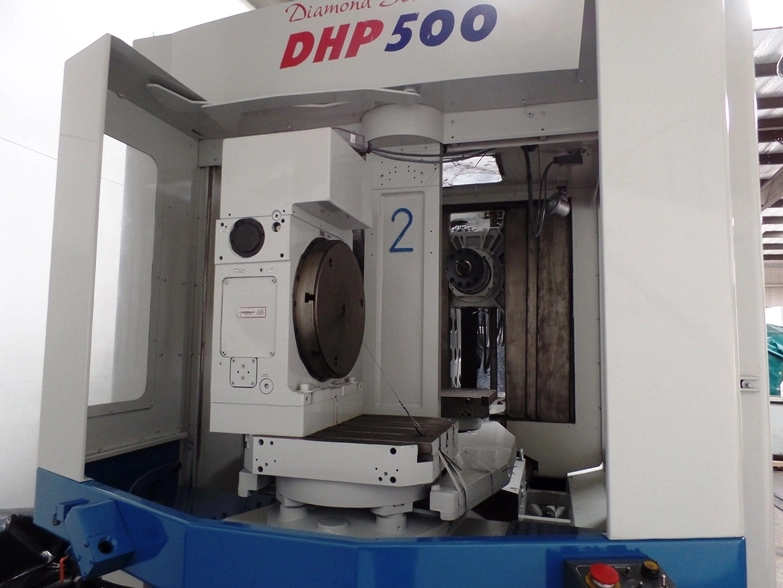

Pallet size                                                       19.68” x 19.68” American standard

Number of pallets                                           Two

X-axis                                                              31.49”/800mm

Y-axis                                                              27.56”/700mm

Z-axis                                                              29.52”/750mm

Rapid traverse X-Y-Z                                      1,575ipm

Max feed thrust force                                      2,701/lb.f

Cutting feed rate
0.04-787.40/ipm

Positioning accuracy
0.0002”/full stroke

Repeatability                                                   0.00008”

Spindle nose to table center                           5.91”-35.43”

Spindle center to pallet top                             2.95”-30.51”

Coolant                                                           Flood type, 120 psi

Spindle oil chiller
Yes

Manuals                                                          Yes, Gen, Ops, Parts, Electrical

Dimensions                                                    198” W x 128” L x 120” H

Weight
41,000
lbs.

Price: $49,500

Houston, TX.  Subject to Prior Sale.
