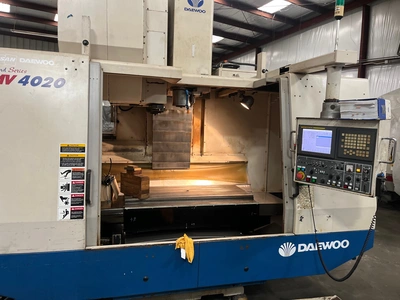

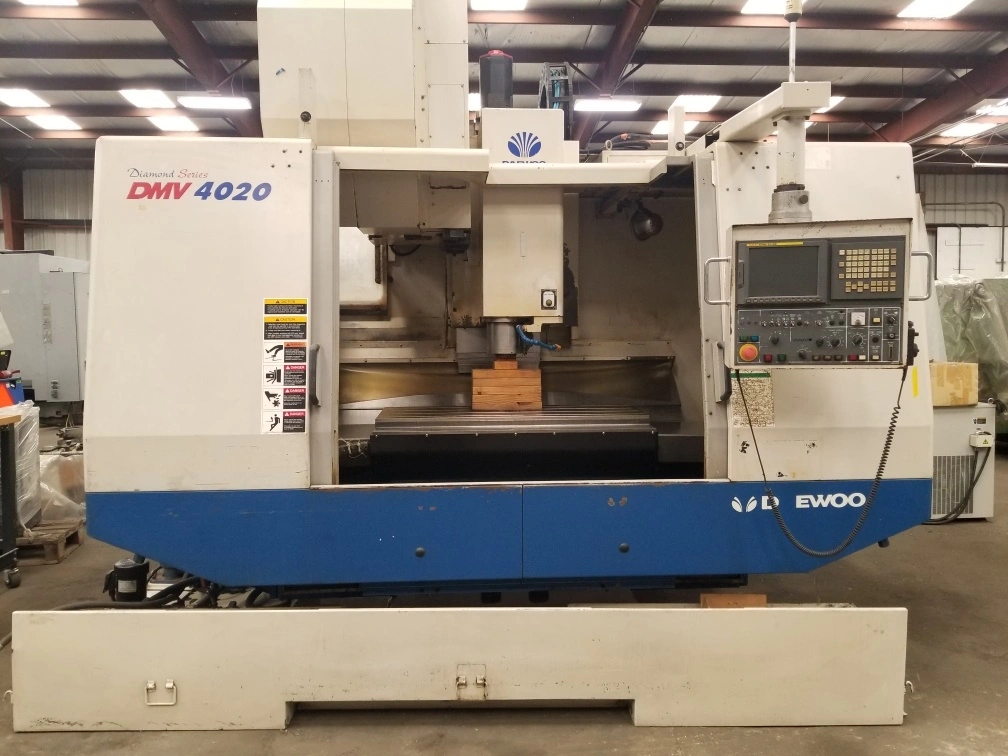

Model
DMV 4020
Serial Number
AV5E 1785
Year
2004

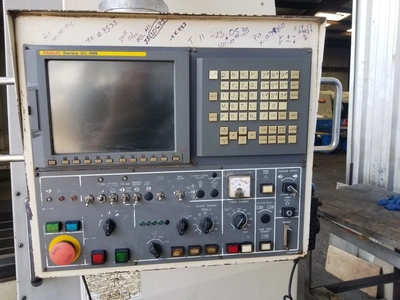

Control
Fanuc Series 21i MB
X Axis Travel
40.2"
Y Axis Travel
21.3"
Z Axis Travel
20.9"
X Axis Rapid
Traverse 1,181 ipm
Y Axis Rapid
Traverse 1,181 ipm
Z Axis Rapid
Traverse 945 ipm
Cutting Feed
Rate
1 - 470 ipm
Table Length
47.2"
Table Width
21.2"
Maximum Table
Capacity 1,760 lbs.
Spindle Taper
CAT 50
Tooling
None
Spindle Power
25 / 30 hp
Spindle RPM
6,000 RPM
Coolant thru
spindle
Yes
Spindle
Torque
334 ft-lb
Power
Transmission Type
Geared
Head
Coolant
Yes
Height
114.2"
Length
95.2"
Width
131.9"
Weight
15,500 lbs. apx.
Price: $39,500.
FOB Houston, TX. Subject to Prior Sale.
