Model
Wasino Wildcat
Serial number
138123
Swing and
centers
18” x 72”
Swing over bed
20”
Swing over
cross slide
10”
Aloris tool
post
Yes, 4-way tool post
Tool holders
Yes, 3 tool holders
Spindle bore
2 ½”
Serial number
138123
Chuck
13” Buck 3-jaw Adjust True with 4” bore
SN: 30465, 3-piece top jaws
Threading
Yes, inch and metric
Spindle speeds
23-1800 rpm, 18 steps
Chip guard
Yes
Chip pans
Yes
Chuck guard
Yes
Tool post
Aloris 4-way tool post
Taper
attachment
No
Steady rest
6” roller rest
Tailstock
Yes
Travel of
spindle barrel
6”
Diameter of
spindle barrel
3”
Main motor
10 hp.
Digital
readouts
Newall
Shipping weight
10,000 lbs.
Dimensions
12’ W x 4’ L x 7’ H
Price: $
19,500. FOB Houston, TX. Subject to Prior Sale
Condition:
Good. Purchased from a Dresser Industries valve division that was
merged
Into G. E.
Energy Services.

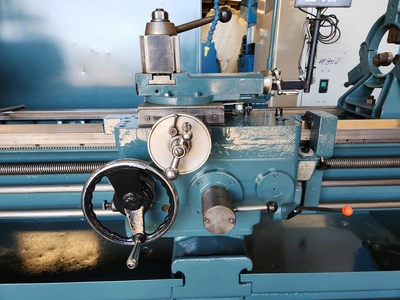

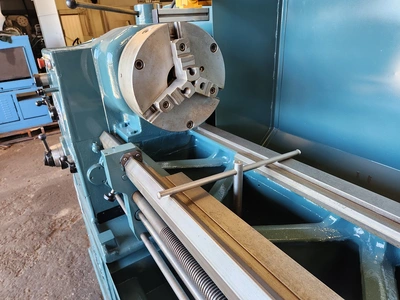

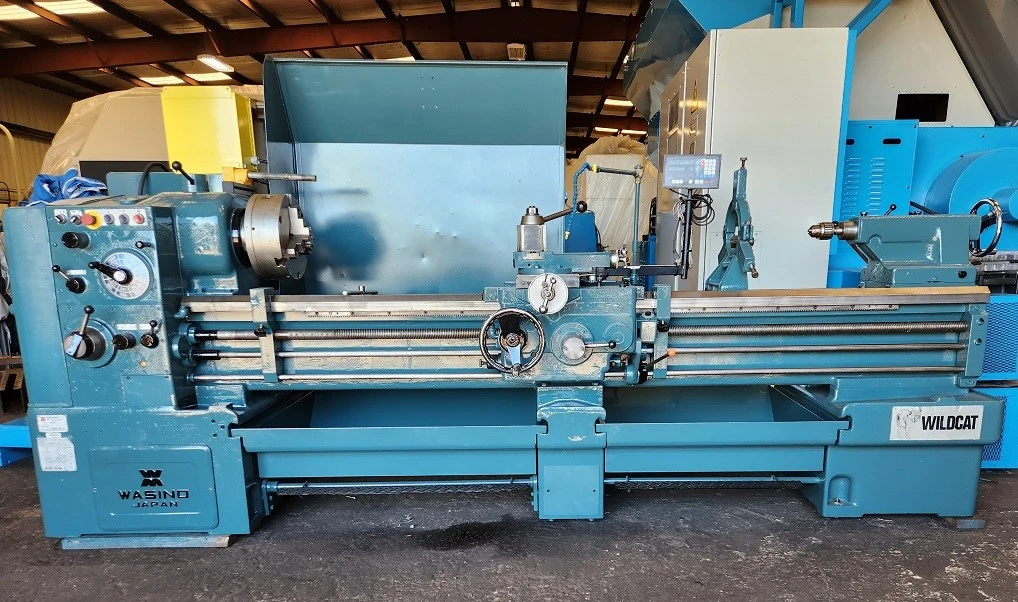

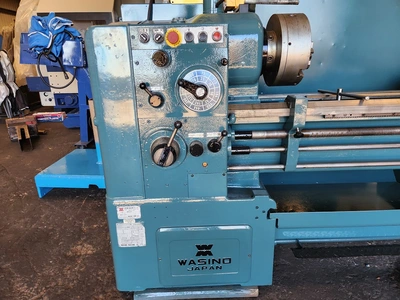

WASINO MANUAL ENGINE LATHE
